Manufacture # Startech | Model # SFPGLCLHSMST

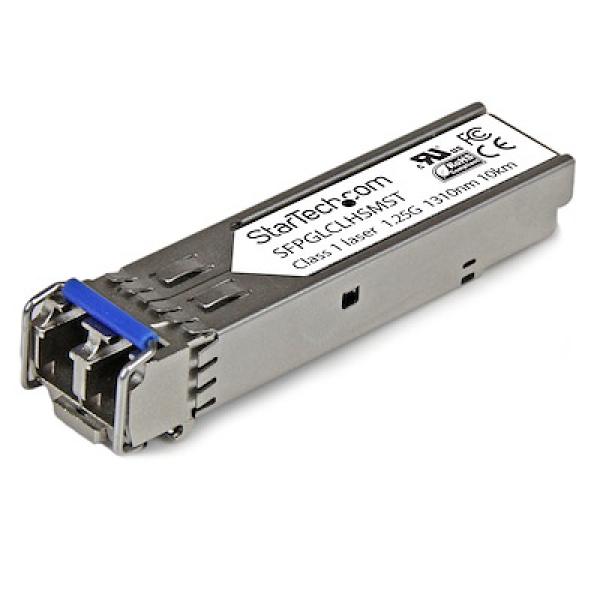

The SFPGLCLHSMST is a Cisco GLC-LH-SM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Features:
Overview:
Manufacturer Warranty: Lifetime Limited Warranty
| Material | Steel |
| System and Cable Requirements | MSA or Cisco compliant SFP port |
| Connector(s) :- | |
| Local Unit Connectors | 1 - Fiber Optic LC Duplex |
| Hardware :- | |
| Compatible Brand | Cisco |
| WDM | No |
| Industry Standards | IEEE 802.3z 1000BASE-LX/LH |
| Performance :- | |
| Maximum Data Transfer Rate | 1.25 Gbps |
| Max Transfer Distance | 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM |
| Wavelength | 1310nm |
| Fiber Operating Mode | Half/Full-Duplex |
| DDM | No |
| Type | Single Mode / Multi Mode |
| Compatible Networks | 1000 Mbps (1 Gbps) |
| MTBF | 3,092,408 hours |
| Power Consumption (In Watts) | < 1 W |
| Output Voltage | 3.3V DC |
| Environmental :- | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 85°F) |
| Humidity | 30~70% RH |
| Physical Characteristics :- | |
| Weight of Product | 0.7 oz [20.0 g] |
| Product Length | 2.4 in [60.0 mm] |
| Product Width | 0.5 in [1.2 cm] |
| Product Height | 0.4 in [1.0 cm] |
| Special Notes / Requirements :- | |
| Note | For use in Gigabit fiber networking equipment and media converters |
| What's in the Box :- | |
| Included in Package | 1 - 1.25 Gbps Single Mode LC SFP |
