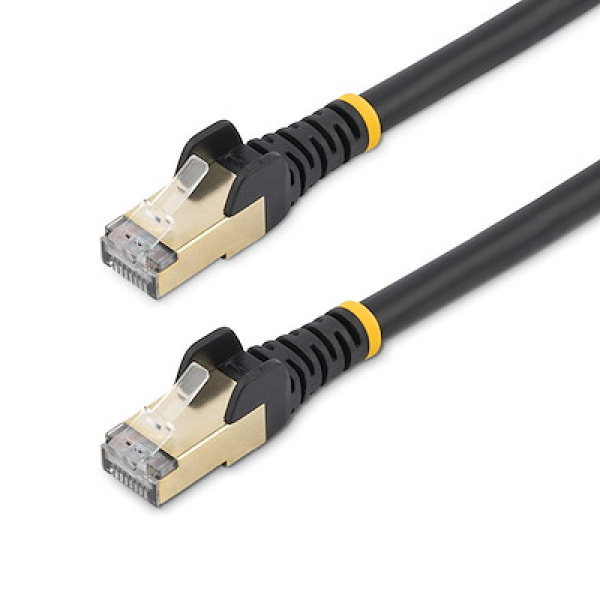

The Startech 1.5 m CAT6a Shielded Patch Cord (Black) features RJ-45 Male connectors on both ends for a secure and reliable connection. Designed for high-speed performance with 10Gbit/s support, this snagless cable is made with PVC jacket, aluminum-polyester foil shield, and foiled twisted pairs (F/FTP). Ideal for networking needs with CMG rating for general-purpose use.
100% Guarantee Safe Checkout
Description
Manufacture # Startech| Model # 6ASPAT150CMBK
This Cat6a cable meets or exceeds all Category 6a cable specifications to ensure reliable 10Gb network connections. The cable is shielded to protect your network against electromagnetic interference (EMI/RFI) and system noise, providing the perfect solution for fast and safe network connections.
This 1,5-meter black patch cable is perfect for standard applications such as connecting from a wall jack to your laptop docking station or desktop computer.
For easier network installations, our Cat6a patch cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.
Each cable is tested for up to 500MHz frequency and is more than suitable for 10GBase-T Ethernet networks.
Constructed with 100% copper and foil-shielded, twisted-pair wiring, this cable was built for quality performance. The cable is designed to keep the data signals traveling through your network free from interference and is perfect in environments that are prone to large amounts of EMI.
The 50-micron gold connectors deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.
For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.
The cable also features molded boots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance.
Connector(s) | |
Connector A | RJ-45 Male |
Connector B | RJ-45 Male |
Hardware | |
Cable Jacket Material | PVC - Polyvinyl Chloride |
Cable Shield Material | Aluminum-polyester foil 53u |
Cable Structure | Foiled with Foiled Twisted Pairs (F/FTP) 4 Pairs |
Cable Type | Shielded Snag-less |
Fire Rating | CMG Rated (General Purpose) |
Number of Conductors | 4 Pair STP |
Packaging Information | |
Package Height | 0.1 mm [0 in] |
Package Length | 20 cm [7.9 in] |
Package Width | 22 cm [8.7 in] |
Shipping (Package) Weight | 77 g [2.7 oz] |
Performance | |
Cable Rating | CAT6a - 10Gbit/s |
Physical Characteristics | |
Cable Length | 1.5 m [4.9 ft] |
Cable Outer Diameter | 6.3±0.20mm |
Color | Black |
Conductor Type | Stranded Copper |
Product Height | 1.3 cm [0.5 in] |
Product Length | 150 cm [59.1 in] |
Product Width | 1.2 cm [0.5 in] |
Weight of Product | 67 g [2.4 oz] |
Wire Gauge | 26 AWG (0.404 mm) |
Prominence | |
Description CDW 75 - 1st Line | Startech 1.5 m CAT6a Cable - Black RJ45 Shielded Patch Cord - Snagless |
What's in the Box | |
Included in Package | CAT6a Cable |
