STARTECH 6ft Mini Displayport To Dvi Active MDP2DVIMM6BS

SKU : MDP2DVIMM6BS
Brand : StarTech
Availablity : In stock
Ships within 1 and 3 days
STARTECH 6ft Mini Displayport To Dvi Active MDP2DVIMM6BS, Active or Passive Adapter: Active, Adapter Style: Cable Adapters, Audio: No, AV Input: Mini DisplayPort - 1.2, AV Output: DVI-D - Single-Link, Chipset ID: Parade - PS171, Audio Specifications: DVI - No Audio Support, MTBF: 1,291,679 hours, Wide Screen Supported: Yes, Connector A: 1 - Mini-DisplayPort (20 pin) Male, Connector B: 1 - DVI-D (25 pin) Male The MDP2DVIMM6BS 6ft active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface Pro device.
Ask a question about this product
$59.00

Estimated Shipping

Delivery when available

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Startech | Model # MDP2DVIMM6BS

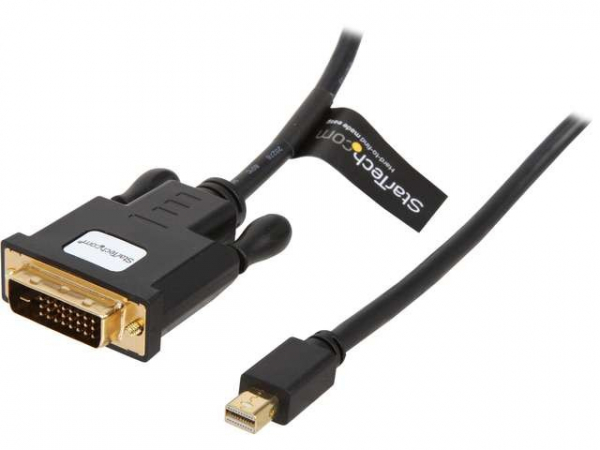

The MDP2DVIMM6BS 6ft active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) directly to a DVI monitor or projector, saving the expense of additional adapters.



For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM6BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.



Features:

  • Active Mini DisplayPort to DVI conversion
  • 1x Male DisplayPort connector, 1x Male DVI connector
  • Compatible with Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort signal



Overview:

  • Active or Passive Adapter: Active
  • Adapter Style: Cable Adapters
  • AV Input: Mini DisplayPort - 1.2
  • AV Output: DVI-D - Single-Link
  • Chipset ID: Parade - PS171



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Active or Passive Adapter Active
Adapter Style Cable Adapters
Audio No
AV Input Mini DisplayPort - 1.2
AV Output DVI-D - Single-Link
Chipset ID Parade - PS171
Audio Specifications DVI - No Audio Support
Maximum Cable Length 6 ft [1.8 m]
Maximum Digital Resolutions 1920 x 1200
MTBF 1,291,679 hours
Supported Resolutions 1024 x 768
1280 x 720
1920 x 1080
1920 x 1200
Wide Screen Supported Yes
Connector A 1 - Mini-DisplayPort (20 pin) Male
Connector B 1 - DVI-D (25 pin) Male
System and Cable Requirements Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter.
This adapter is not compatible for use with the Apple Cinema Display.
Humidity 40%-85%RH
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Cable Length 6.1 ft [1.9 m]
Color Black
Product Height 0.6 in [1.6 cm]
Product Length 6.1 ft [1.9 m]
Product Width 1.6 in [40 mm]
Weight of Product 3.6 oz [100.7 g]
Package Height 0.8 in [20 mm]
Package Length 8.7 in [22 cm]
Package Width 7.9 in [20 cm]
Shipping (Package) Weight 4.3 oz [123 g]
Included in Package 1 - Active DisplayPort to DVI Adapter
