Manufacture # StarTech | Model # CDP2DP142MBD

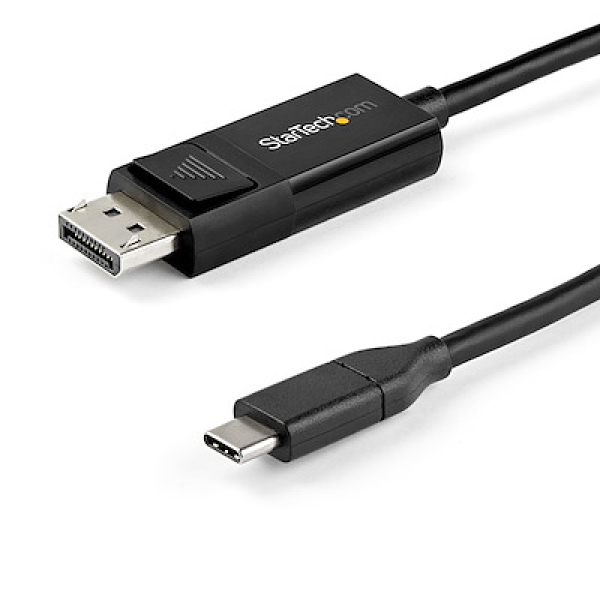

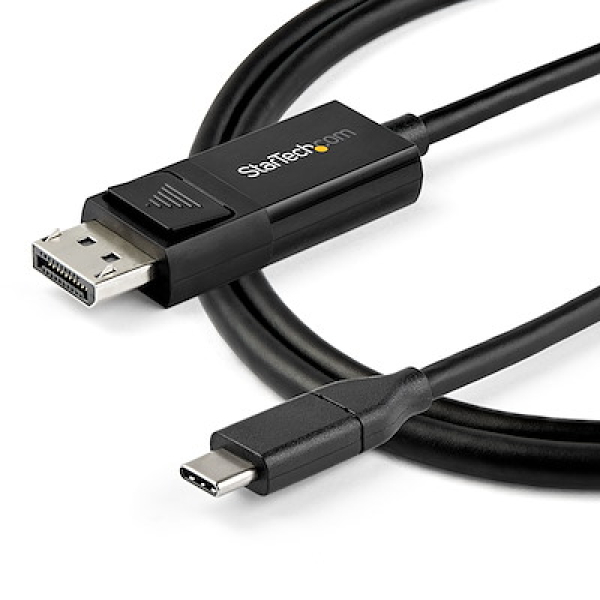

This USB-C to DisplayPort 1.4 cable lets you connect your USB Type-C (or Thunderbolt 3) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.
Features:
Overview:
Manufacturer Warranty: 03 Years Limited Warranty
| Connector A | 1 - USB-C (24 pin) DisplayPort Alt Mode 1 - Thunderbolt 3 USB-C (24-pin) (40Gbps) |
| Connector B | 1 - DisplayPort (20 pin) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 10%-85% RH |
| Active or Passive Adapter | Active |
| AV Input | USB-C DisplayPort - 1.4 |
| AV Output | DisplayPort USB-C |
| Audio | Yes |
| Chipset ID | Chrontel - CH7213C-BF Texas Instruments - TUSB544 VIA Labs - VL170 |
| Audio Specifications | DisplayPort - 7.1 Channel Audio USB-C - 7.1 Channel Audio |
| Bandwidth | HBR3 |
| Maximum Digital Resolutions | DisplayPort: 7680x4320 (8K) / 60Hz USB-C: 7680x4320 (8K) / 60Hz |
| Video Revision | DisplayPort 1.4 |
| Wide Screen Supported | Yes |
| Color | Black |
| Product Height | 0.4 in [1 cm] |
| Product Length | 78.7 in [200.0 cm] |
| Weight of Product | 2.8 oz [79 g] |
| Product Width | 0.8 in [2 cm] |
| Material | Plastic |
| System and Cable Requirements | Your USB-C device must support DisplayPort Alt Mode to work with this cable To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4 This cable is not compatible with the Surface Dock 2 |
| Included in Package | 1 - 2 m USB-C to DisplayPort 1.4 Bi-Directional Adapter Cable |
