Sku: DP2DVIMM6BS
Brand: StarTech
Category: Display Cables Adapter
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
We Accept
Manufacture # STARTECH | Model # DP2DVIMM6BS

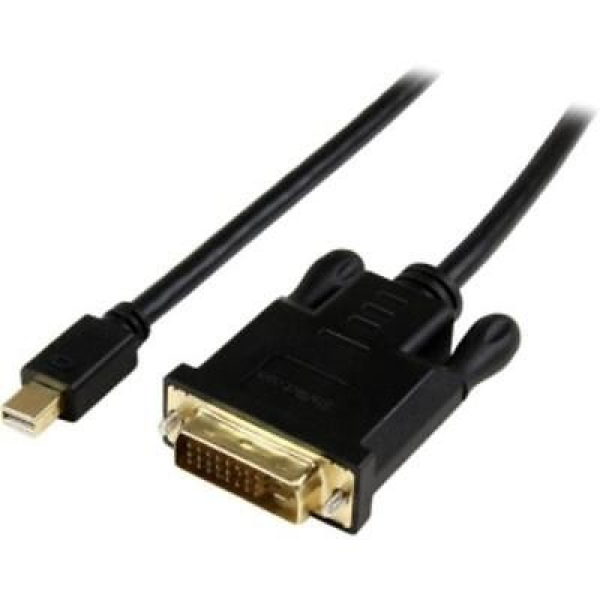

The DP2DVIMM6BS 6ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a DVI monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older VGA monitor or projector.
For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM6BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Features:
Overview:
Manufacturer Warranty: 03 Years Limited Warranty
| Active or Passive Adapter | Active |
| Adapter Style | Cable Adapters |
| Audio | No |
| AV Input | DisplayPort - 1.2 |
| AV Output | DVI-D - Single-Link |
| Chipset ID | Parade - PS171 |
| Audio Specifications | DVI - No Audio Support |
| Maximum Cable Length | 6 ft [1.8 m] |
| Maximum Digital Resolutions | 1920 x 1200 |
| Supported Resolutions | 1024 x 768 1280 x 720 1920 x 1080 1920 x 1200 |
| Wide Screen Supported | Yes |
| Connector A | 1 - DisplayPort (20 pin) Latching Male |
| Connector B | 1 - DVI-D (25 pin) Male |
| System and Cable Requirements | Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter. |
| This adapter is not compatible for use with the Apple Cinema Display. | |
| Humidity | 40%-85%RH |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Cable Length | 6.1 ft [1.9 m] |
| Color | Black |
| Product Height | 0.6 in [1.5 cm] |
| Product Length | 6.1 ft [1.9 m] |
| Product Width | 1.6 in [40 mm] |
| Weight of Product | 3.7 oz [105.2 g] |
| Package Height | 0.6 in [15 mm] |
| Package Length | 8.7 in [22 cm] |
| Package Width | 7.6 in [19.4 cm] |
| Shipping (Package) Weight | 4.3 oz [123 g] |
| Included in Package | 1 - Active DisplayPort to DVI Adapter |
