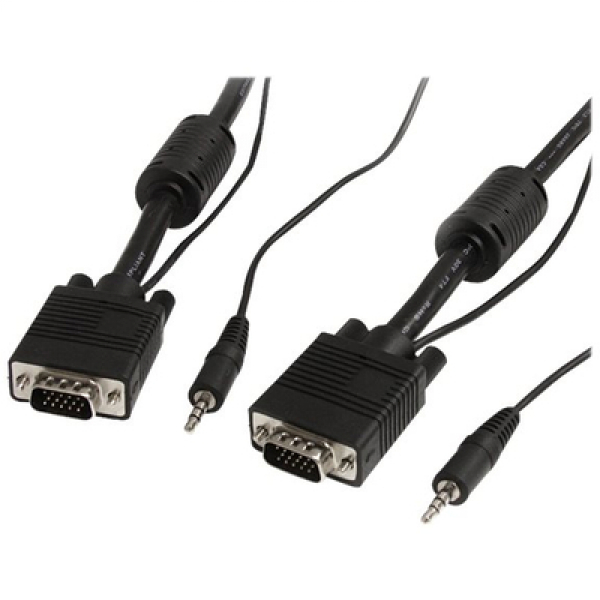

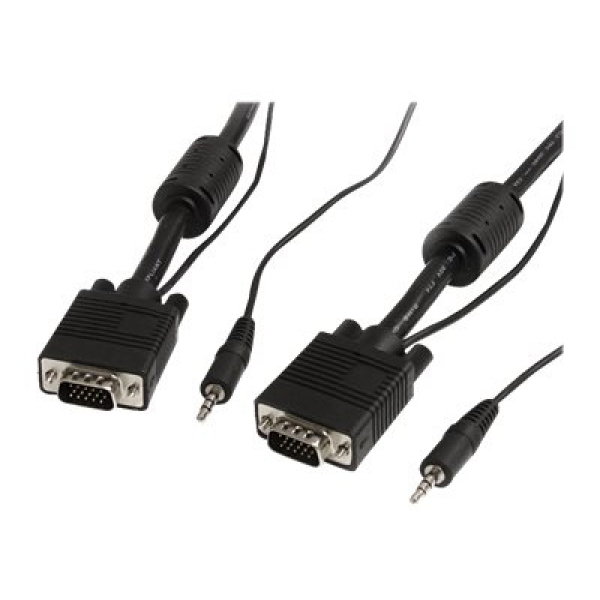

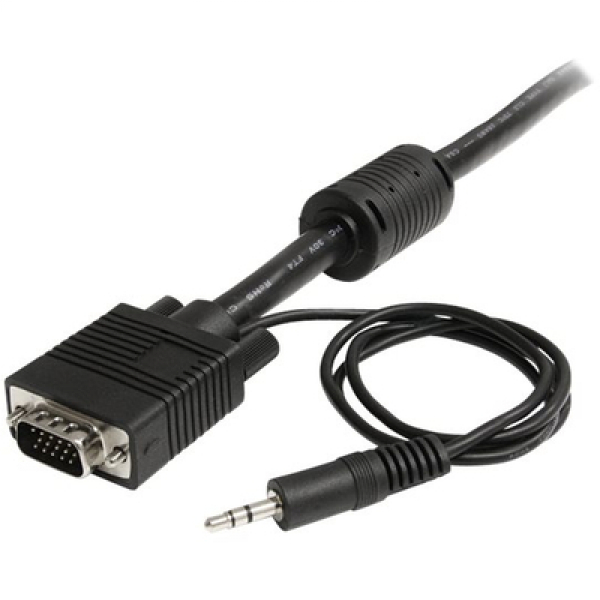

Startech 5m High Res Monitor Vga Cable With Audio (MXTHQMM5MA)

Brand : STARTECH
SKU : MXTHQMM5MA
Availablity : In stock
The MXTHQMM5MA 5-meter High Resolution VGA Cable with Audio is a high quality SVGA cable designed to provide the highest video quality possible through VGA - a single cable solution for connecting both video between a VGA video card and monitor, and audio connections between a sound card and external audio device.

Ask a question about this product

$40.00

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Product Description

Manufacture # Startech | Model # MXTHQMM5MA



The MXTHQMM5MA 5-meter High Resolution VGA Cable with Audio is a high quality SVGA cable designed to provide the highest video quality possible through VGA - a single cable solution for connecting both video between a VGA video card and monitor, and audio connections between a sound card and external audio device.



StarTech.com’s high resolution VGA cable with audio features high quality male-to-male coaxial VGA cable, and is designed to eliminate picture "ghosting" and fuzzy images that are inherent to non-coaxial cables, while providing superior EMI interference protection by using ferrite cores near the connector ends.



Features:

  • Triple-coaxial + twisted-pair wire for crystal clear display
  • Impedance matched at 75 Ohms for full brightness and vibrant picture color
  • Molded connector ends with strain relief
  • Ferrite core eliminates EMI interference



Overview:

  • Cable Jacket Material: PVC - Polyvinyl Chloride
  • Cable Shield Material: Aluminum-Mylar Foil with Braid
  • Connector Plating: Nickel
  • Fire Rating: CMG Rated (General Purpose)
  • Number of Conductors: 14



Manufacturer Warranty: LIfetime Limited Warranty



Technical Specifications

Cable Jacket Material PVC - Polyvinyl Chloride
Cable Shield Material Aluminum-Mylar Foil with Braid
Connector Plating Nickel
Fire Rating CMG Rated (General Purpose)
Number of Conductors 14
Number of Ferrites 2
Regulatory Approvals UL2919
Impedance 75 Ohm
Connector A 1 - 3.5 mm Mini-Jack (3 Position) Male
1 - VGA (15 pin, High Density D-Sub) Male
Connector B 1 - 3.5 mm Mini-Jack (3 Position) Male
- VGA (15 pin, High Density D-Sub) Male
Humidity 0 - 80 %RH
Operating Temperature 0 to 60 °C
Storage Temperature -20 to 80 °C
Cable Length 5 m [16.4 ft]
Color Black
Connector Style Straight
Product Length 5 m [16.4 ft]
Weight of Product 592 g [20.9 oz]
Wire Gauge 28 AWG
Package Height 62.5 cm [24.6 in]
Package Length 25.5 cm [10 in]
Package Quantity 1
Package Width 56 mm [2.2 in]
Shipping (Package) Weight 0.6 kg [1.3 lb]
Included in Package 1 - 5 m Coax High Resolution Monitor VGA Cable with Audio HD15 M/M
