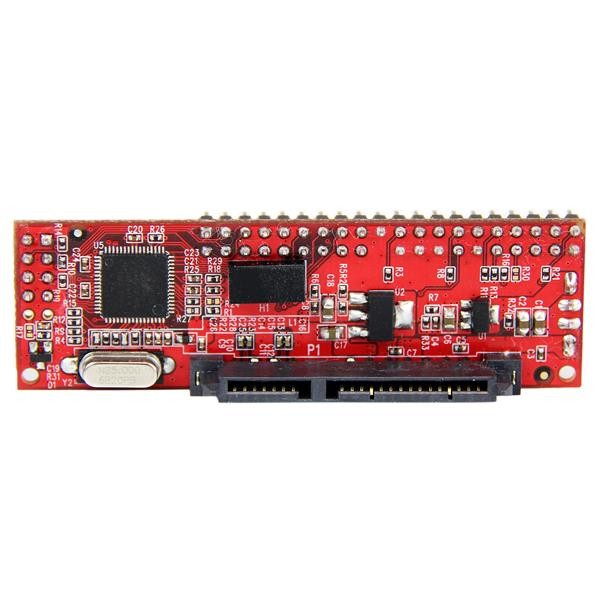

STARTECH 40-pin Ide Pata To Sata Adapter IDE2SAT2

SKU : IDE2SAT2
Brand : StarTech
Availablity : In stock
Ships within 1 and 3 days
Startech 40-pin Ide Pata To Sata Adapter IDE2SAT2k, Interface IDE, Data Transfer Rate 133MB/sec, Steel and Plastic, Included 1 - IDE to SATA adapter, 1 - LP4 Molex to SP4 Power Cable, 1 - Instruction Manual.   The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives.
Ask a question about this product
$41.00

Estimated Shipping

Delivery when available

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Startech | Model # IDE2SAT2



The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.



Features:

  • Connect a SATA device to an IDE/ATA motherboard or controller card
  • Complete hardware solution; no software required
  • Support for 48-bit Logical Block Addressing (LBA)



Overview:

  • Chipset ID: Marvell - 88SA8052
  • Compatible Drive Types: SATA
  • Drive Size: 2.5in & 3.5in
  • Interface: IDE
  • Maximum Data Transfer Rate: 133MB/sec



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Chipset ID Marvell - 88SA8052
Compatible Drive Types SATA
Drive Size 2.5in & 3.5in
Interface IDE
Number of Drives 1
Maximum Data Transfer Rate 133MB/sec
RAID No
Connector Type(s) 1 - IDE (40 Pin, EIDE/PATA)
1 - SATA Data & Power Combo (7+15 pin)
1 - SP4 (4 pin, Small Drive Power)
OS Compatibility OS independent; No software or drivers required
System and Cable Requirements An IDE controller and ATA cable (not included).
Humidity 15~90% RH
Operating Temperature 5°C to 50°C (40°F to 122°F)
Storage Temperature -25°C to 80°C (-13°F to 176°F)
Material Steel and Plastic
Product Height 0.9 in [2.3 cm]
Product Length 3 in [75.5 mm]
Product Width 0.8 in [20 mm]
Weight of Product 1 oz [29 g]
Package Height 1.3 in [33 mm]
Package Length 5.7 in [14.5 cm]
Package Width 6.9 in [17.5 cm]
Shipping (Package) Weight 3.1 oz [89 g]
Included in Package 1 - IDE to SATA adapter
1 - LP4 Molex to SP4 Power Cable
1 - Instruction Manual
