Sku: PCIUSB3S4
Brand: StarTech
Category: USB Adaptors
Shipping Information
Availability: In Stock
Ships in 1-3 days or pickup from Seven Hills in 3-5 days.
Shipping Calculator
Find
Bus Type: PCI / PCI-X (5 / 3.3V), Card Type: Standard Profile (LP bracket incl.), Interface: USB 3.0, Maximum Data Transfer Rate: 1.3 Gbps (PCI Bus), Type and Rate: USB 3.0 - 5 Gbit/s, Lifetime Limited Warranty, PCIUSB3S4.
100% Guarantee Safe Checkout
Description
Manufacture # Startech | Model # PCIUSB3S4

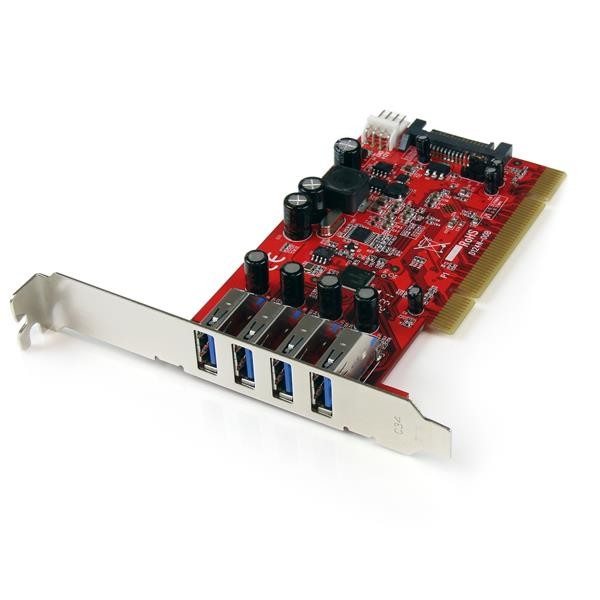

The PCIUSB3S4 4-Port PCI to USB 3.0 Card enables legacy PCI slots to support the SuperSpeed USB 3.0 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.0 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection.
Features:
Overview:
Manufacturer Warranty: Lifetime Limited Warranty
| Bus Type | PCI / PCI-X (5 / 3.3V) |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Renesas/NEC - µPD720202 |
| Interface | USB 3.0 |
| Ports | 4 |
| Maximum Data Transfer Rate | 1.3 Gbps (PCI Bus) |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Connector Type(s) | 1 - PCI / PCI-X (Universal 3.3 & 5V, 32-bit) |
| External Ports | 4 - USB Type-A (9 pin) USB 3.0 (5 Gbps) Female |
| Internal Ports | 1 - SATA Power (15 pin) Plug 1 - SP4 (4 pin, Small Drive Power) Plug |
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 |
| System and Cable Requirements | Available PCI slot Available SATA or Floppy power connector |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (13°F to 158°F) |
| Color | Red |
| Product Height | 2.6 in [6.5 cm] |
| Product Length | 5.2 in [13.3 cm] |
| Product Width | 0.8 in [20 mm] |
| Weight of Product | 2.5 oz [72 g] |
| Included in Package | 1 - PCI USB 3.0 Card 1 - Low Profile Bracket 1 - Driver CD 1 - Instruction Manual |
Overall Rating
4.5 out of 5
(150 reviews)
John Doe
"Excellent product! Exceeded my expectations."
John Doe
"Good quality, but delivery took longer than expected."
Add Your Review
