Bus Type: PCI Express, Interface: USB 3.0, Port Style: Integrated on Card, Type and Rate: USB 3.0 - 5 Gbit/s, Card Type: Standard Profile (LP bracket incl.), 02 Years Limited Warranty, PEXUSB3S42.
100% Guarantee Safe Checkout
Description
Manufacture # Startech | Model # PEXUSB3S42

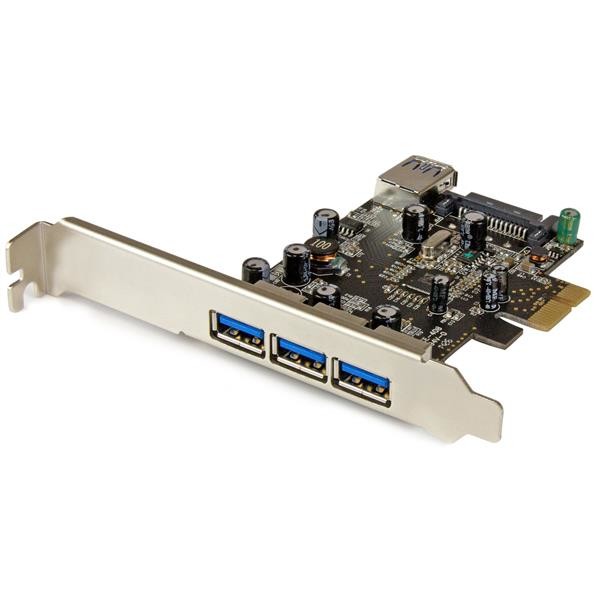

Here’s a cost-effective solution for adding USB 3.0 connectivity to your computer. This 4-port PCIe USB 3.0 card gives you three external ports and one internal port, for the ultimate connection flexibility.
Features:
Overview:
Manufacturer Warranty: 02 Years Limited Warranty
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | VIA/VLI - VL805 |
| Industry Standards | USB 3.0 Specification Rev. 1.0 PCI Express Base Specification Rev. 2.0 Intel xHCI Specification Rev. 1.0 |
| Interface | USB 3.0 |
| Port Style | Integrated on Card |
| Ports | 4 |
| Maximum Cable Length | 9.8 ft [3 m] |
| Maximum Data Transfer Rate | 5 Gbps |
| MTBF | 24,000 hours |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Connector Type(s) | 1 - PCI Express x1 Male |
| External Ports | 3 - USB Type-A (9 pin) USB 3.0 (5 Gbps) Female |
| Internal Ports | 1 - SATA Power (15 pin) Plug 1 - USB Type-A (9 pin) USB 3.0 (5 Gbps) Female |
| OS Compatibility | Windows XP, Vista, 7, 8, 8.1, 10 Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.6.31 to 4.11.x LTS Versions only |
| Note | The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. |
| System and Cable Requirements | PCI Express enabled computer or server with an available PCI Express x1 slot or higher (x4, x8, x16) SATA power connector (recommended, but optional) |
| Humidity | 20~80% RH |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Product Height | 4.7 in [12 cm] |
| Product Length | 3.4 in [87 mm] |
| Product Width | 0.7 in [19 mm] |
| Weight of Product | 1.9 oz [55 g] |
| Included in Package | 1 - 4 Port PCI Express USB 3.0 Card 1 - Low-Profile Bracket 1 - Driver CD 1 - Instruction Manual |
