Bus Type: PCI Express, Interface: USB 3.0, Port Style: Integrated on Card, Ports: 4, Type and Rate: USB 3.0 - 5 Gbit/s, 02 Years Limited Warranty, PEXUSB3S4V.
100% Guarantee Safe Checkout
Description
Manufacture # Startech | Model # PEXUSB3S4V

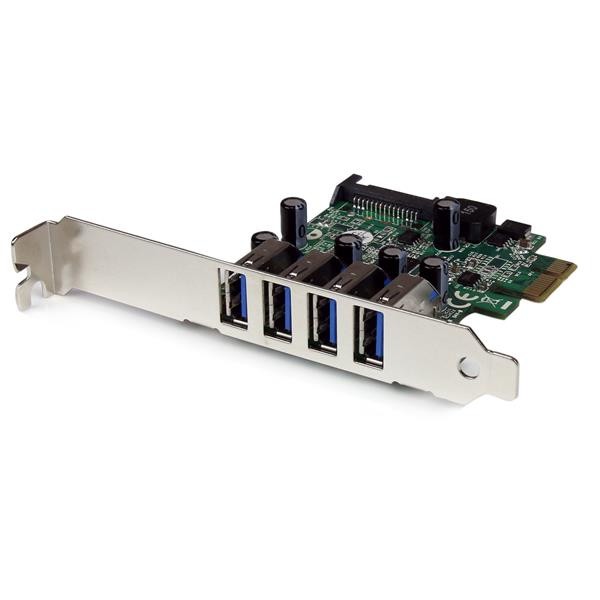

The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.
Features:
Overview:
Manufacturer Warranty: 02 Years Limited Warranty
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Renesas/NEC - µPD720201 |
| Interface | USB 3.0 |
| Port Style | Integrated on Card |
| Ports | 4 |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Connector Type(s) | 1 - PCI Express x1 Male |
| External Ports | 4 - USB Type-A (9 pin) USB 3.0 (5 Gbps) Female |
| Internal Ports | 1 - SATA Power (15 pin) Plug |
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 |
| Note | The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. |
| System and Cable Requirements | Available PCI Express expansion slot |
| Humidity | 20% ~ 80% RH |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Product Height | 2.7 in [6.8 cm] |
| Product Length | 3 in [75 mm] |
| Product Width | 0.7 in [19 mm] |
| Weight of Product | 2.4 oz [68 g] |
| Package Height | 1.3 in [33 mm] |
| Package Length | 5.2 in [13.2 cm] |
| Package Quantity | 1 |
| Package Width | 6.4 in [16.2 cm] |
| Shipping (Package) Weight | 4.9 oz [138 g] |
| Included in Package | 1 - PCI Express USB 3.0 Card 1 - Low Profile Bracket 1 - Driver CD 1 - Instruction Manual |
