Name: StarTech 4 Port Gigabit PoE PCIe Network Card - PSE PCI Express NIC
Brand: StarTech
SKU: ST4000PEXPSE
Price: 600 AUD
Availability: InStock

StarTech 4 Port Gigabit PoE PCIe Network Card - PSE PCI Express NIC

SKU : ST4000PEXPSE

Brand : StarTech

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # StarTech | Model # ST4000PEXPSE

The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.

The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.

Features:

Four 10/100/1000 Mbps compatible PoE RJ45 ports
Fully compliant with IEEE 802.3at (Type 1 & 2) Power over Ethernet standards
Power Sourcing Equipment (PSE) supports up to 48V, 25.5 Watts max. output per port
Built-in SATA and LP4 Molex power connector
Up to 9K Jumbo Frame support
Wake-on-LAN (Remote Wake-up) support
Supports Pair Swap, Polarity and Skew Correction

Overview:

Material: Steel
Connector Type(s): 1 - PCI Express x4
Ports: 4
Maximum Data Transfer Rate: 2000 Mbps (Full-duplex)
Buffer Size: 48 KB
Compatible Networks: 10/100/1000 Mbps
Auto MDIX: Yes
Full Duplex Support: Yes
Jumbo Frame Support: 9K max.

Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Connector(s) :-
Connector Type(s)	1 - PCI Express x4
Internal Ports	1 - SATA Power (15 pin) 1 - LP4 (4 pin; Large Drive Power)
External Ports	4 - RJ-45
Environmental :-
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 75°C (-40°F to 158°F)
Humidity	10~90% RH (Non-condensing)
Hardware :-
Ports	4
Interface	RJ45 (Gigabit Ethernet)
Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Port Style	Integrated on Card
Industry Standards	IEEE 802.3at, 802.3af, 802.3, 802.3u, 802.3ab, 802.3az Draft 2.2 Energy-Efficient Ethernet (EEE), 802.1q VLAN tagging, 802.1p Layer 2 Priority Encoding and 802.3x Full Duplex Flow Control
Chipset ID	Realtek - RTL8111H
Indicators :-

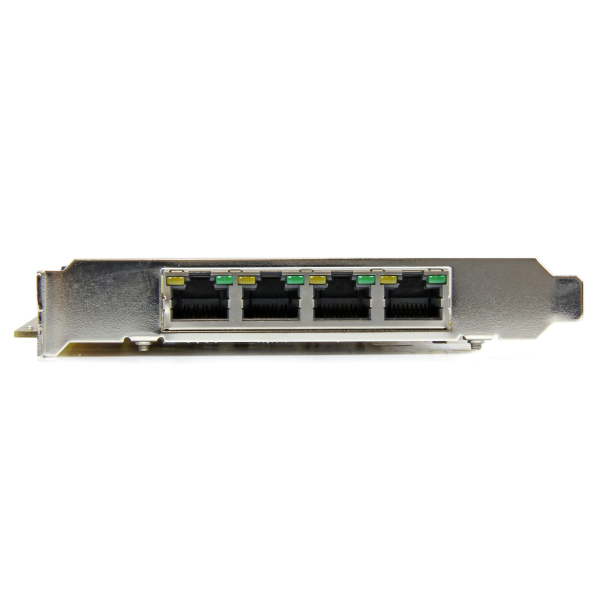

LED Indicators	4 - Link/ Activity (green) 4 - PoE Active (yellow)
Performance :-
Maximum Data Transfer Rate	2000 Mbps (Full-duplex)
Buffer Size	48 KB
Compatible Networks	10/100/1000 Mbps
Auto MDIX	Yes
Full Duplex Support	Yes
Jumbo Frame Support	9K max.
Promiscuous Mode	Yes
Physical Characteristics :-
Color	Yellow
Material	Steel
Product Length	9.6 in [24.3 cm]
Product Width	0.7 in [1.8 cm]
Product Height	4.7 in [12.0 cm]
Weight of Product	3.6 oz [102.0 g]
Power :-
Output Voltage	48 DC
Software :-
OS Compatibility	Windows 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 Linux 2.4.x and up - LTS Versions only
Special Notes / Requirements :-
Patents and Licenses	The following patents are licensed for this product. This list might not be all inclusive. United States Patent No. 5,406,260 (expired) United States Patent No. 6,650,622 United States Patent No. 7,457,250 United States Patent No. 8,155,012 United States Patent No. 8,902,760 United States Patent No. 8,942,107 United States Patent No. 9,019,838 United States Patent No. 9,049,019 United States Patent Application No. 14/695,456 United States Patent Application No. 14/726,940
System and Cable Requirements	Available full height (standard profile) PCI Express expansion slot Available LP4 Molex or SATA power connector

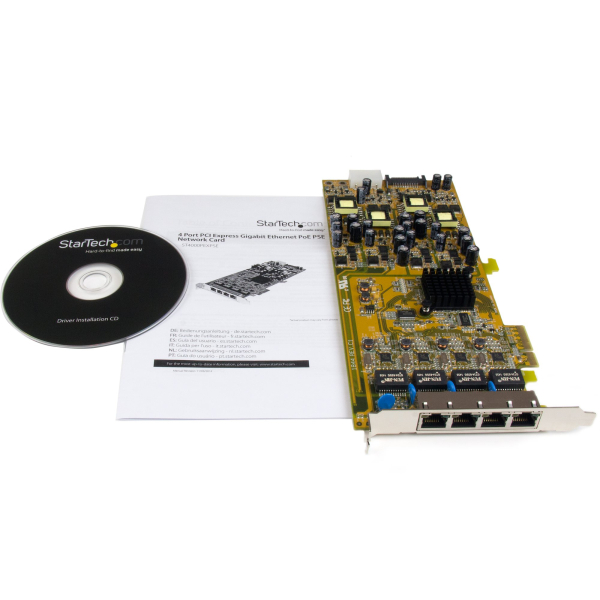

What's in the Box :-
Included in Package	1 - PCI Express Network Card 1 - Instruction Manual
