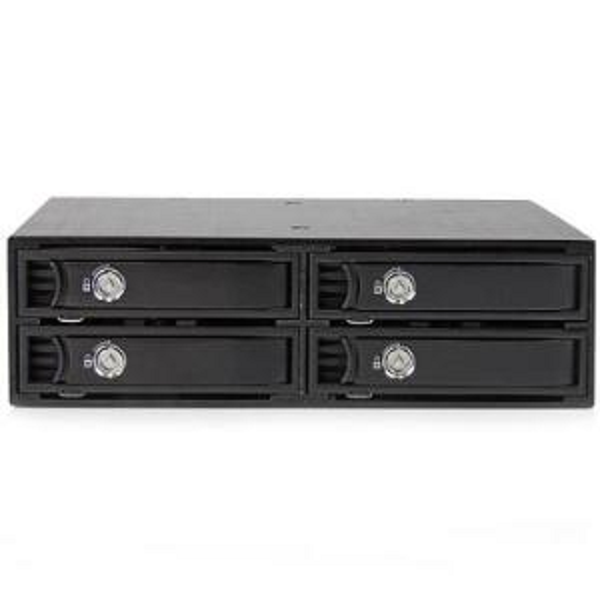

Startech 4-bay Backplane For 2.5in Sata/sasdrives SATSASBP425, 4 - Host Connectors: SATA (7 pin, Data), 4 - Drive Connectors: SATA Data & Power Combo (7+15 pin), 1 - Other Interface(s): LP4 (4 pin; Large Drive Power), Interface: SATA / SAS, Front Door Key Lock: Yes, Number of Drives: 4, Drive Size: 2.5in, Compatible Drive Types: SAS & SATA, Drive Installation: Removable, Number of 2.5 inch bays: 4, Fan(s): Yes, 2 - Fans: 40 mm, Fan Bearing Type: Sleeve Bearing
The mobile rack backplane is engineered to protect your valuable data and provide reliable performance. The aluminum housing is designed for enhanced heat dissipation, while two 40mm fans improve air flow to minimize heat build-up and ensure optimum operating temperature.
We Accept
Manufacture # Startech | Model # SATSASBP425
The mobile rack backplane is engineered to protect your valuable data and provide reliable performance. The aluminum housing is designed for enhanced heat dissipation, while two 40mm fans improve air flow to minimize heat build-up and ensure optimum operating temperature.
Many fast-paced work environments require drives to be removed regularly. Hot swap between systems quickly, without shutting down, with the convenient backplane.The included drive trays are interchangeable, working with both the 4-bay backplane and the single-bay backplane (SATSASBP125) so you can hot swap between systems for easy file access.
Designed for versatile use, the backplane supports an extensive range of both SATA or SAS based HDDs and SSDs, from 5 to 15mm in height.To maximize the performance of your drives, the mobile rack supports SAS II and SATA III performance for transfer speeds up to 6 Gbps when paired with a compatible controller. The backplane also works with your preferred RAID controller or Hyper Duo™ controller to produce a high-performance or redundant storage solution.
Features:
Overview:
Manufacturer Warranty: 02 Years Limited Warranty
| Warranty | 2 Years |
| 4 - Host Connectors | SATA (7 pin, Data) |
| 4 - Drive Connectors | SATA Data & Power Combo (7+15 pin) |
| 1 - Other Interface(s) | LP4 (4 pin; Large Drive Power) |
| Operating Temperature | 0°C to 55°C (23°F to 95°F) |
| Storage Temperature | -20°C to 55°C (-4°F to 131°F) |
| Humidity | 5%~65% RH |
| Interface | SATA / SAS |
| Front Door Key Lock | Yes |
| Number of Drives | 4 |
| Drive Size | 2.5in |
| Compatible Drive Types | SAS & SATA |
| Drive Installation | Removable |
| Number of 2.5 inch bays | 4 |
| Supported Drive Height(s) | 5mm / 9.5mm / 12.5mm / 15mm |
| Fan(s) | Yes |
| 2 - Fans | 40 mm |
| Fan Bearing Type | Sleeve Bearing |
| 4 - LED Indicators | Drive power and activity LED |
| 1 - LED Indicators | Fan activity |
| Package Height | 80.0 mm [3.1 in] |
| Package Length | 21.6 cm [8.5 in] |
| Shipping (Package) Weight | 1.0 kg [2.3 lb] |
| Package Width | 19.4 cm [7.6 in] |
| Maximum Data Transfer Rate | 6 Gbps |
| Type and Rate | SATA III (6 Gbps) |
| Port Multiplier | No |
| Max Drive Capacity | Tested with hard drives up to 2TB at 7200 RPM |
| Hot Swap Capability | Yes |
| Insertion Rating | 50000 |
| Noise Level | 20 dBA |
| MTBF | 30000 |
| Color | Black |
| Material | Aluminum and Steel |
| Max Drive Height | 15 mm [0.6 in] |
| Product Length | 15.2 cm [6.0 in] |
| Product Width | 14.6 cm [5.7 in] |
| Product Height | 42.0 mm [1.7 in] |
| Weight of Product | 760.0 g [26.8 oz] |
| OS Compatibility | OS independent; No software or drivers required |
| Note | Flammability rating: UL94 - V0 |
| 1 - Included in Package | 4-bay SATA/SAS hard drive backplane quick start guide |
| 2 - Included in Package | drive tray keys SATA to Molex power adapters |
| 4 - Included in Package | 2.5" drive trays 18" SATA data cables |
| 16 - Included in Package | drive mounting screws |
| 8 - Included in Package | backplane mounting screws |
