Sku: MDP2DVIMM3BS
Brand: StarTech
Category: Display Cables Adapter
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
We Accept
Manufacture # Startech | Model # MDP2DVIMM3BS

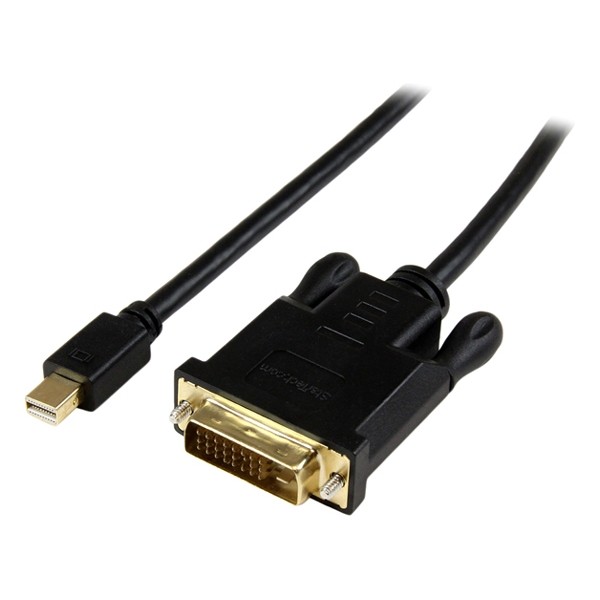

The MDP2DVIMM3BS 3ft. active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports dual-mode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Features:
Overview:
Manufacturer Warranty: 03 Years Limited Warranty
| Active or Passive Adapter | Active |
| Adapter Style | Cable Adapters |
| Audio | No |
| AV Input | Mini DisplayPort - 1.2 |
| AV Output | DVI-D - Single-Link |
| Chipset ID | Parade - PS171 |
| Audio Specifications | DVI - No Audio Support |
| Maximum Cable Length | 3 ft [0.9 m] |
| Maximum Digital Resolutions | 1920 x 1200 |
| MTBF | 1,291,679 hours |
| Supported Resolutions | 1024 x 768 1280 x 720 1920 x 1080 1920 x 1200 |
| Wide Screen Supported | Yes |
| Connector A | 1 - Mini-DisplayPort (20 pin) Male |
| Connector B | 1 - DVI-D (25 pin) Male |
| System and Cable Requirements | Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter. This adapter is not compatible for use with the Apple Cinema Display. |
| Humidity | 40%-85%RH |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Cable Length | 3 ft [0.9 m] |
| Color | Black |
| Product Height | 0.6 in [1.5 cm] |
| Product Length | 36.2 in [92 cm] |
| Product Width | 1.6 in [40 mm] |
| Weight of Product | 5.5 oz [154.7 g] |
| Package Height | 0.6 in [15 mm] |
| Package Length | 8.7 in [22 cm] |
| Package Width | 7.9 in [20 cm] |
| Shipping (Package) Weight | 3 oz [84 g] |
| Included in Package | 1 - Active DisplayPort to DVI Adapter |
