Startech 3-Port HDBaseT Extender Kit with 3 Receivers 1x3 HDMI over CAT5e Splitter Up to 4K

Sku: ST124HDBT

Availability: In Stock

Brand: StarTech

Category: Audio Video Receiver

$1,812.80 $3,542.00 49% OFF

Ports: 4, Max Distance: 70 m / 230 ft, Color: Black, Material: Steel, Power Source: AC Adapter Included, Input Voltage: 100 - 240 AC, Input Current: 1.5A, 02 Years Limited Warranty, ST124HDBT.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # Startech | Model # ST124HDBT

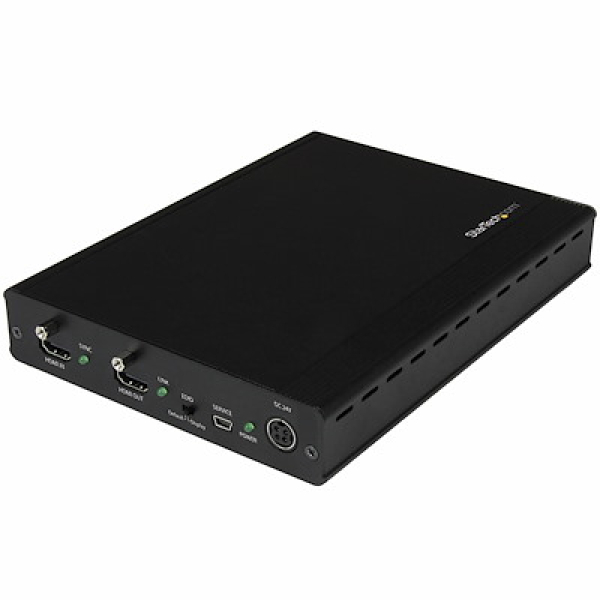

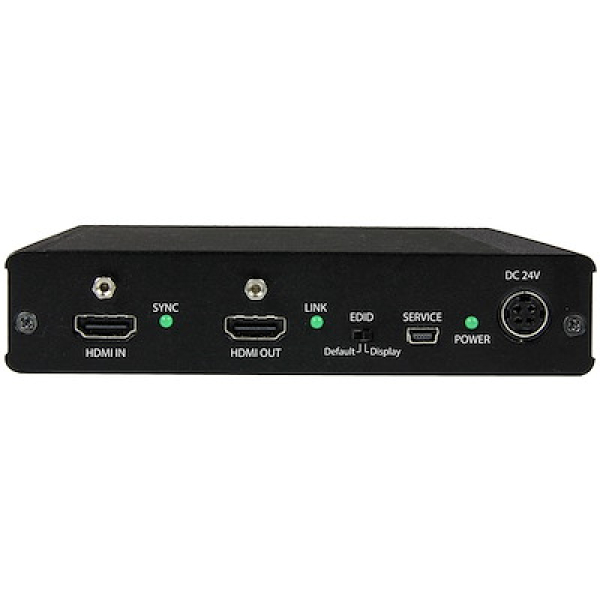

This 3-Port HDBaseT extender kit lets you extend an HDMI® source to three remote locations, using HDBaseT technology. The kit includes three remote receiver units, and the transmitter features a local HDMI output, which gives you the ability to keep a fourth HDMI display at your local video source.


Features:

  • Extends your HDMI video signal to three remote HDMI displays, each in different locations

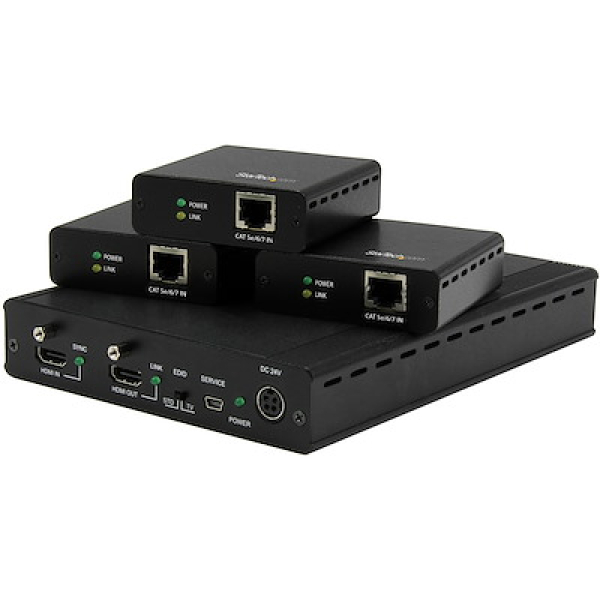

  • A complete extender kit that includes the transmitter and three remote receivers
  • Maintains UHD 4K up to 115 feet away, and HD 1080p up to 230 ft. away, over non-proprietary CAT5e or CAT6 cabling
  • Mountable, to install securely and out of the way
  • Dolby TrueHD, DTS-HD MA Audio



Overview:

  • Ports: 4
  • Max Distance: 70 m / 230 ft
  • Color: Black
  • Material: Steel
  • Power Source: AC Adapter Included
  • Input Voltage: 100 - 240 AC
  • Input Current: 1.5A



Manufacturer Warranty: 02 Years Limited Warranty

Hardware :-
Ports 4
Cabling Cat 5e UTP or better
Audio Yes
Rack-Mountable Yes
Daisy-Chain Yes
Performance :-
Maximum Cable Length 2755.9 in [70000 mm]
Max Distance 70 m / 230 ft
Maximum Digital Resolutions 4096 x 2160 (4K) @ 30 Hz - maximum distance 35 m (115 ft.)
1920x1080 (1080p) - maximum distance 70 m (230 ft.)
Supported Resolutions 4k x 2K (Ultra HD) @ 30 Hz
2560x1600 @ 60 Hz
1920x1200
1920x1080 (1080p)
1280x720 (720p)
General Specifications Maximum 1080p Distance: 70 m (230 ft.)
Maximum 4K Distance: 35 m (115 ft.)
Physical Characteristics :-
Color Black
Material Steel
Product Length 7.9 in [20 cm]
Product Width 5.7 in [14.5 cm]
Product Height 1.2 in [3 cm]
Weight of Produc 2.2 lb [1 kg]
Power :-
Power Source AC Adapter Included
Input Voltage 100 - 240 AC
Input Current 1.5A
Output Voltage 24 DC
Output Current 2.7A
Center Tip Polarity Positive
Plug Type 4-pin DIN
Power Consumption (In Watts) 64.8
Environmental :-
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
Humidity 0% - 80 % RH (non-condensing)
Special Notes / Requirements :-
Note CAT6 STP Cables provide protection against electromagnetic interference and cross-talk, and are highly recommended for use with this product.
What's in the Box :-
Included in Package 1 - 3-port HDBaseT extender

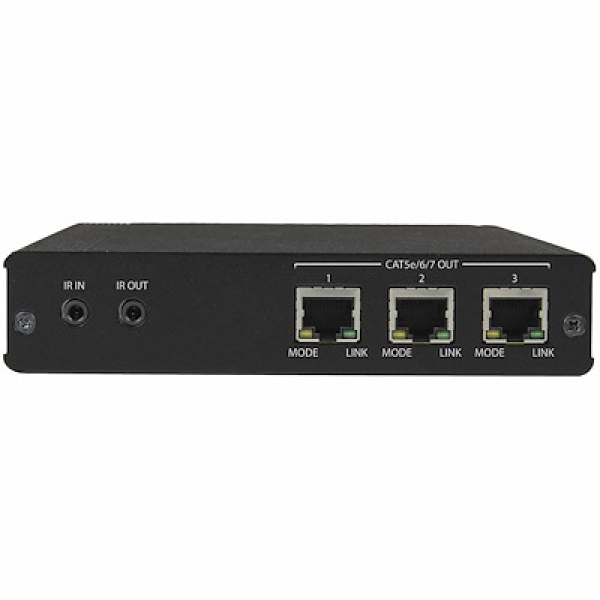

3 - HDBaseT receivers
1 - universal power adapter (NA / EU / UK / AU)
4 - IR blasters
4 - IR receivers
1 - quick start guide
