Startech 3-in-1 USB-C To Vga Dvi Or Hdmi (CDPVGDVHDBP)

Startech 3-in-1 USB-C To Vga Dvi Or Hdmi (CDPVGDVHDBP)

Name: Startech 3-in-1 USB-C To Vga Dvi Or Hdmi CDPVGDVHDBP
Brand: StarTech
SKU: CDPVGDVHDBP
Price: 86 AUD
Availability: InStock

SKU : CDPVGDVHDBP

Brand : StarTech

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse

Startech 3-in-1 USB-C To Vga Dvi Or Hdmi (CDPVGDVHDBP), Active or Passive Adapter: Active, Adapter Style: Adapters, AV Input: USB-C, AV Output: DVI-I (Digital Only) - Single-Link, HDMI - 1.4, VGA, Audio Specifications: HDMI - 7.1 Channel Audio, DVI - No Audio Support, VGA - No Audio Support, Video Revision: DisplayPort 1.2, Wide Screen Supported: Yes This USB-C™ multiport video adapter offers a portable solution for connecting your USB Type-C laptop to a VGA, DVI or HDMI® display. Avoid the hassle of carrying different adapters for different displays with this 3-in-1 USB-C adapter. With VGA

Ask a question about this product

$86.00

Buy Now

Estimated Shipping

Find

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Startech | Model # CDPVGDVHDBP

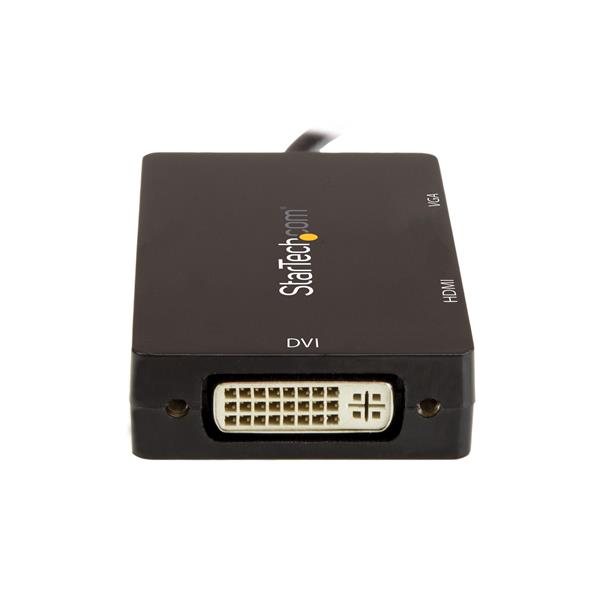

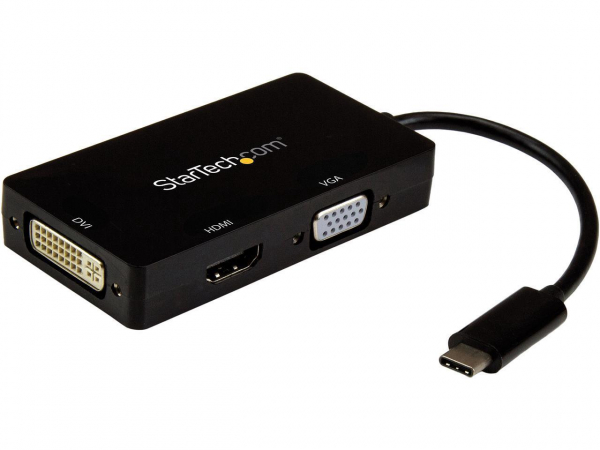

This USB-C™ multiport video adapter offers a portable solution for connecting your USB Type-C laptop to a VGA, DVI or HDMI® display. Avoid the hassle of carrying different adapters for different displays with this 3-in-1 USB-C adapter. With VGA, DVI and HDMI output, you can connect your laptop to virtually any display.

Features:

Maximize your video compatibility with a?3-in-1?USB-C display?adapter:?USB-C to?VGA,?DVI,?or?HDMI
Get astonishing picture quality with support for UHD resolutions up to 4K?30Hz
Thunderbolt™ 3 and?USB Type-C™ with?DP?Alt Mode Compatible
Easy to set up, use, and store

Overview:

Active or Passive Adapter: Active
Adapter Style: Adapters
AV Input: USB-C
Maximum Analog Resolutions: 1920 x 1200 @ 60Hz

Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Active or Passive Adapter	Active
Adapter Style	Adapters
AV Input	USB-C
AV Output	DVI-I (Digital Only) - Single-Link HDMI - 1.4 VGA
Audio Specifications	HDMI - 7.1 Channel Audio DVI - No Audio Support VGA - No Audio Support
General Specifications	Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function.
Maximum Analog Resolutions	1920 x 1200 @ 60Hz
Maximum Cable Distance To Display	49.9 ft [15.2 m]
Maximum Digital Resolutions	3840 x 2160 @ 30Hz
Supported Resolutions	HDMI output: 3840 x 2160 (@ 30 Hz), 2560 x 1600, 2048 x 1280 (@ 60 Hz), 1920 x 1200, 1920 x 1080, 1280 x 720 VGA and DVI output: 1920 x 1200 (@ 60 Hz), 1920 x 1080, 1280 x 720
Video Revision	DisplayPort 1.2
Wide Screen Supported	Yes
Connector A	1 - USB-C (24 pin) DisplayPort Alt Mode Male Input
Connector B	1 - HDMI (19 pin) Female Output 1 - DVI-I (29 pin) Female Output 1 - VGA (15 pin, High Density D-Sub) Female Output
Note	Maximum Cable Distance to Display refers to digital video. VGA distance capabilities are dependent upon the quality of your cabling
System and Cable Requirements	Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
Humidity	10%-85% RH
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Cable Length	5.9 in [150 mm]
Color	Black
Product Height	0.6 in [1.5 cm]
Product Length	3.3 in [85 mm]
Product Width	1.8 in [45 mm]
Weight of Product	1.8 oz [51 g]
Package Height	0.8 in [20 mm]
Package Length	8.9 in [22.5 cm]
Package Width	4.9 in [12.5 cm]
Shipping (Package) Weight	1.9 oz [55 g]
Included in Package	1 - USB-C travel adapter
