Manufacture # Startech | Model # MDP2DVIMM3B

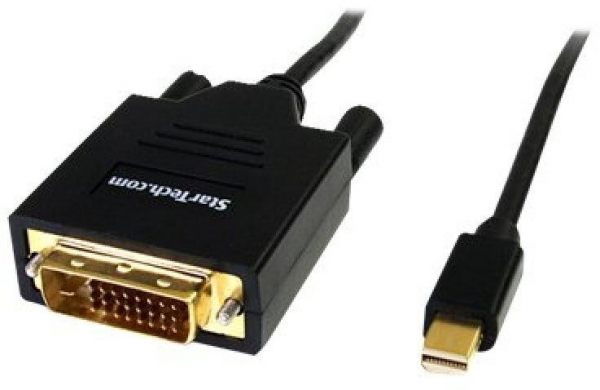

The MDP2DVIMM3B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 3 feet (1 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display device with no additional cabling required.
Features:
Overview:
Manufacturer Warranty: 03 Years Limited Warranty
| Active or Passive Adapter | Passive |
| Adapter Style | Cable Adapters |
| Audio | No |
| AV Input | Mini DisplayPort - 1.2 |
| AV Output | DVI-D - Single-Link |
| Chipset ID | NXP - 3361 |
| Audio Specifications | DVI - No Audio Support |
| Maximum Cable Length | 3 ft [0.9 m] |
| Maximum Digital Resolutions | 1920x1200 / 1080p |
| MTBF | 2,405,577 hours |
| Wide Screen Supported | Yes |
| Connector A | 1 - Mini-DisplayPort (20 pin) Male |
| Connector B | 1 - DVI-D (25 pin) Male |
| System and Cable Requirements | DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through |
| Humidity | 40%-85%RH |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | 0°C to 70°C (32°F to 158°F) |
| Cable Length | 3 ft [0.9 m] |
| Color | Black |
| Product Height | 0.6 in [1.5 cm] |
| Product Length | 36.2 in [92 cm] |
| Product Width | 1.5 in [38 mm] |
| Weight of Product | 2.5 oz [69.4 g] |
| Package Height | 0.7 in [17 mm] |
| Package Length | 8.7 in [22 cm] |
| Package Width | 7.9 in [20 cm] |
| Shipping (Package) Weight | 3 oz [86 g] |
| Included in Package | 1 - Mini DisplayPort® to DVI Adapter |
