Manufacture # Startech | Model # DP2DVIMM3BS

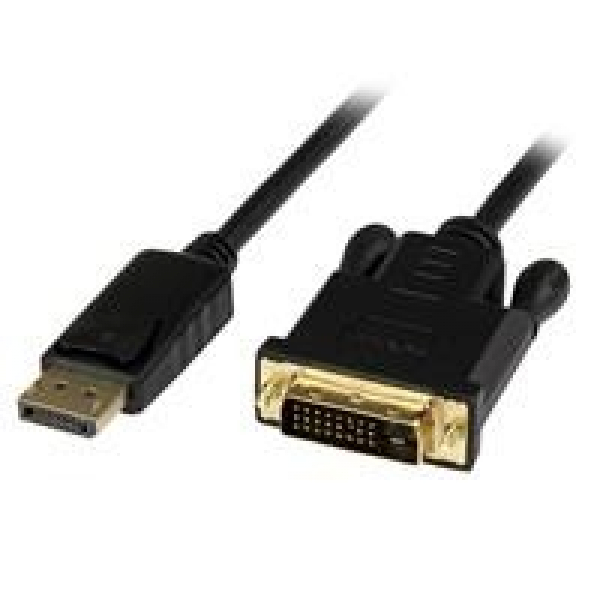

The DP2DVIMM3BS 3ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Features:
Overview:
Manufacturer Warranty: 03 Years Limited Warranty
| Active or Passive Adapter | Active |
| Adapter Style | Cable Adapters |
| Audio | No |
| AV Input | DisplayPort - 1.2 |
| AV Output | DVI-D - Single-Link |
| Chipset ID | Parade - PS171 |
| Audio Specifications | DVI - No Audio Support |
| Maximum Cable Length | 3 ft [0.9 m] |
| Maximum Digital Resolutions | 1920 x 1200 |
| MTBF | 1,291,679 hours |
| Supported Resolutions | 1024 x 768 1280 x 720 1920 x 1080 1920 x 1200 |
| Wide Screen Supported | Yes |
| Connector A | 1 - DisplayPort (20 pin) Male |
| Connector B | 1 - DVI-D (25 pin) Male |
| System and Cable Requirements | Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter. This adapter is not compatible for use with the Apple Cinema Display. |
| Humidity | 40%-85%RH |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Cable Length | 3 ft [0.9 m] |
| Color | Black |
| Product Height | 0.6 in [1.5 cm] |
| Product Length | 36 in [91.5 cm] |
| Product Width | 1.6 in [40 mm] |
| Weight of Product | 2.6 oz [74.9 g] |
| Package Height | 0.6 in [15 mm] |
| Package Length | 8.7 in [22.2 cm] |
| Package Width | 7.8 in [19.7 cm] |
| Shipping (Package) Weight | 3.2 oz [91.6 g] |
| Included in Package | 1 - Active DisplayPort to DVI Adapter |
