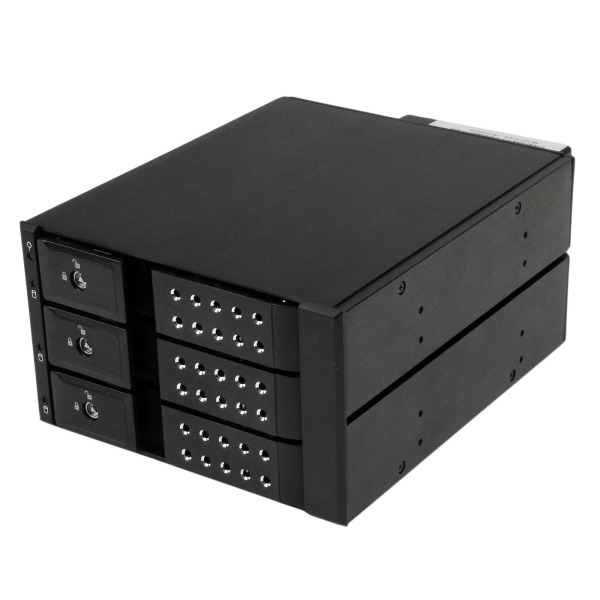

StarTech 3 Bay Trayless Hot Swap 3.5" SATA HDD Mobile Rack Backplane

Sku: HSB3SATSASBA

Brand: StarTech

Category: Enclosures

$154.00 $199.10 23% OFF

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Material: Aluminum, Number of Drives: 3, Drive Size: 3.5in, Number of internal 3.5 inch bays: 3, Maximum Data Transfer Rate: 6 Gbit/s, Type and Rate: SATA III (6 Gbps), Warranty: 02 Years, HSB3SATSASBA.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # StarTech | Model # HSB3SATSASBA



The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).



For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.



Features:

  • Increased Productivity: The 3-drive hot swap backplane lets you turn two 5.25in bays into a hot-swappable interface for you to connect up to three 3.5in SATA or SAS hard drives (HDD)
  • Maximum Compatibility: For added versatility, the hard mobile rack backplane can interface with SATA I/II/III and SAS I/II hard drives; An ideal accommodation for enterprise system applications; Power and status LEDs for each bay

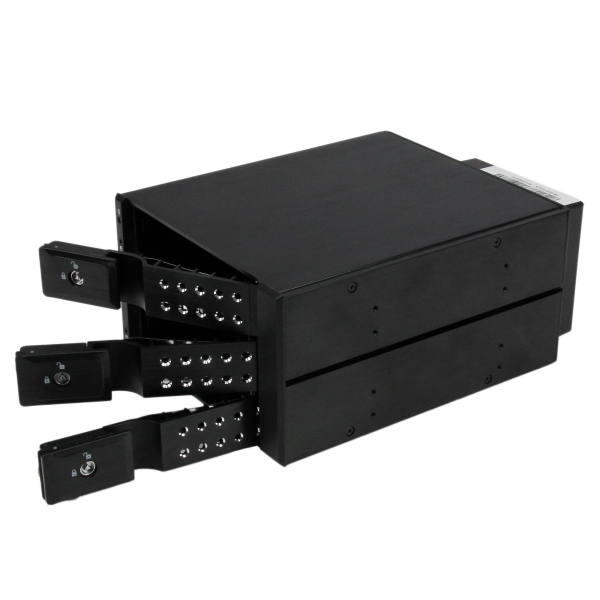

  • Quick Setup: For a quick and secure method of installing and removing drives, this trayless SATA hot swap backplane features individual ejection levers for each bay with a key-lock design for optional added security (includes two keys)
  • Maintain Optimal Temperature: To help prevent drive failure, the 3-drive hot swap backplane features a vented solid aluminum enclosure that provides excellent heat dissipation in addition to a built-in fan with speed control; UL VO flammability rated



Overview:

  • Material: Aluminum
  • Number of Drives: 3
  • Drive Size: 3.5in
  • Number of internal 3.5 inch bays: 3
  • Maximum Data Transfer Rate: 6 Gbit/s
  • Type and Rate: SATA III (6 Gbps)



Manufacturer Warranty: 02 Years Limited Warranty

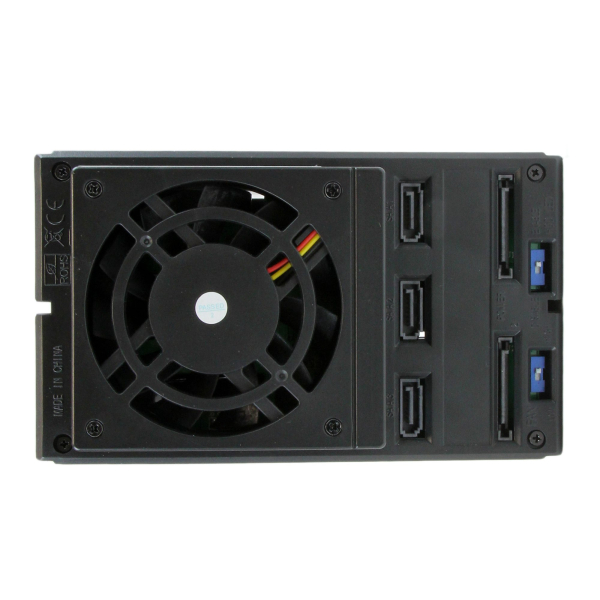

Connector(s) :-
Drive Connectors 3 - SFF-8482 (29 pin, Data & Power, Internal SAS)
Host Connectors 2 - SATA Power (15 pin)
3 - SATA (7 pin, Data)
Environmental :-
Operating Temperature 0°C to 55°C (23°F to 95°F)
Storage Temperature -20°C to 60°C (-4°F to 122°F)
Humidity 5%~85% RH
Hardware :-
Interface SATA
Front Door Key Lock Yes
Number of Drives 3
Drive Size 3.5in
Compatible Drive Types SAS & SATA
Drive Installation Removable
Number of internal 3.5 inch bays 3
Fan(s) Yes
Fans 1 - 70 mm
Fan Bearing Type Sleeve Bearing
Indicators :-
LED Indicators 1 - Power LED
1 - Drive 1 Activity LED
1 - Drive 2 Activity LED
1 - Drive 3 Activity LED
Performance :-
Maximum Data Transfer Rate 6 Gbit/s
Type and Rate SATA III (6 Gbps)
Max Drive Capacity Currently tested with up to 4TB 7200 RPM hard drives
General Specifications Fan Specifications:
Speed: 3000 RPM+10% Airflow: 27.60CFM (At zero static pressure) Noise level: 26.72dB-A
Physical Characteristics :-
Color Black
Material Aluminum
Product Length 7.6 in [19.4 cm]
Product Width 5.7 in [14.6 cm]
Product Height 3.3 in [8.5 cm]
Weight of Product 1.9 lb [0.9 kg]
Software :-
OS Compatibility OS independent; No software or drivers required
What's in the Box :-
Included in Package 1 - 3 SATA HDD Backplane
2 - Bay Key
3 - 18" SATA Cable
1 - Installation screw kit
1 - Instruction Manual
