STARTECH 2x1 Vga+hdmi To Vga Converter Switch VS221HD2VGA

Brand : STARTECH
SKU : VS221HD2VGA
Availablity : In stock
Ships within 1 and 3 days
STARTECH 2x1 Vga+hdmi To Vga Converter Switch VS221HD2VGA, 1 - Connector A: VGA (15 pin, High Density D-Sub), HDMI (19 pin), 1 - Connector B: VGA (15 pin, High Density D-Sub), Ports: 2, AV Input: HDMI, VGA, AV Output: VGA, Audio: Yes, 1 - LED Indicators: VGA Port Selected, HDMI Port Selected, Maximum Analog Resolutions: 1920x1200, Maximum Digital Resolutions: 1920x1200,    The VS221HD2VGA VGA & HDMI Auto Switch lets you connect two distinct A/V sources -- one VGA and one HDMI to the same VGA monitor or projector, and automatically or manually switch between which video...
$271.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa
  • Description
  • Specifications

Product Description

Manufacture # Startech | Model # VS221HD2VGA

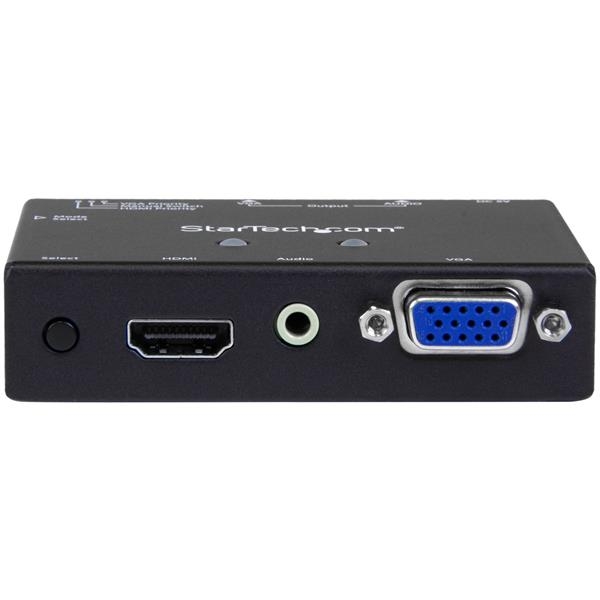

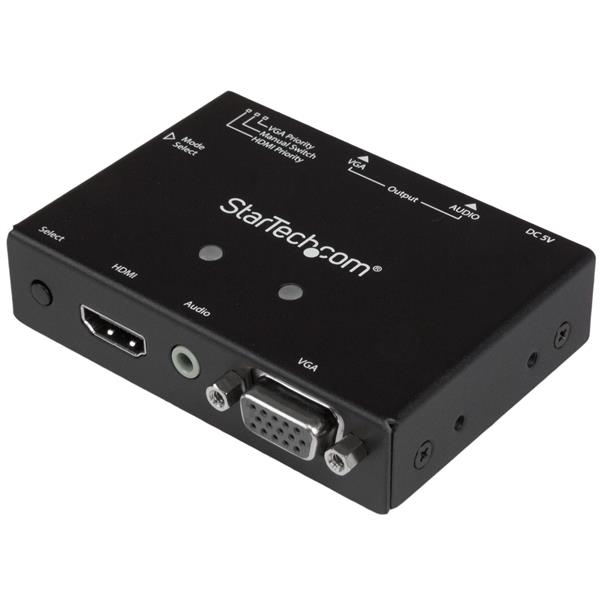

The VS221HD2VGA VGA & HDMI Auto Switch lets you connect two distinct A/V sources -- one VGA and one HDMI to the same VGA monitor or projector, and automatically or manually switch between which video source is displayed.  This multi-input switch supports video resolution up to 1920x1200 (1080p) and includes mounting hardware for a tidy, professional installation.



The A/V switch features built-in HDMI conversion, enabling you to connect an HDMI as well as a VGA video source to the same VGA display, without the use of  additional adapters or scalers. The switch also supports EDID pass-through, EDID copy, and EDID emulation to ensure your HDMI and VGA native resolutions will be maintained between both source connections.



Features:

  • Accommodates both VGA and HDMI input devices in a single switch with VGA output, saving hassle and expense by reducing the need for adapters
  • Effortless control with priority port selection
  • Ideal for classroom and boardroom display applications, allowing presenters to connect a wide range of devices
  • Supports video resolutions up to 1920x1200 / 1080p
  • Supports EDID pass-through, EDID Copy and EDID Emulation
  • Mounting hardware included



Overview:

  • 1 - Connector A: VGA (15 pin, High Density D-Sub), HDMI (19 pin)
  • 1 - Connector B: VGA (15 pin, High Density D-Sub)
  • Ports: 2
  • AV Input: HDMI, VGA
  • AV Output: VGA
  • Audio: Yes



Manufacturer Warranty: 02 Years Limited Warranty



Technical Specifications

Warranty 2 Years
1 - Connector A VGA (15 pin, High Density D-Sub), HDMI (19 pin)
1 - Connector B VGA (15 pin, High Density D-Sub)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 0%~80%
Ports 2
AV Input HDMI, VGA
AV Output VGA
Audio Yes
1 - LED Indicators VGA Port Selected, HDMI Port Selected
Package Height 66,0 mm [2,6 in]
Package Length 23,7 cm [9,3 in]
Package Width 15,5 cm [6,1 in]
Shipping (Package) Weight 600,0 g [21,2 oz]
Maximum Analog Resolutions 1920x1200
Maximum Digital Resolutions 1920x1200
Supported Resolutions Supports resolutions up to 1920x1200 / 1080p
Wide Screen Supported Yes
Audio Specifications 2-channel 3.5mm stereo audio
Material Steel
Product Length 84,0 mm [3,3 in]
Product Width 59,0 mm [2,3 in]
Product Height 20,0 mm [0,8 in]
Weight of Product 172,0 g [6,1 oz]
Power Source AC Adapter Included
Input Voltage 100 - 240 AC
Input Current 0.4 A
Output Voltage 5 DC
Output Current 0.0833333333333333
Power Consumption (In Watts) 10
Note Digitally encrypted content from the HDMI video source will not be displayed on the VGA display

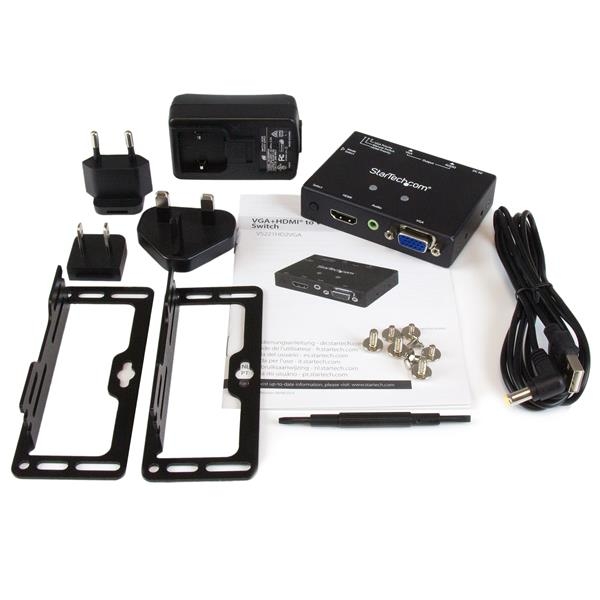

1 - Included in Package VGA+HDMI to VGA converter switch, mounting brackets, universal power adapter (NA, EU, UK, ANZ), instruction manual
