STARTECH 2x1 Hdmi + Vga To Hdmi Converter Switch VS221VGA2HD, 1 - Connector B: HDMI (19 pin), Ports: 2, AV Input: HDMI, VGA, AV Output: HDMI, Audio: Yes, 1 - LED Indicators: VGA Port Selected, HDMI Port Selected, Maximum Analog Resolutions: 1920x1200, Maximum Digital Resolutions: 1920x1200, Wide Screen Supported: Yes

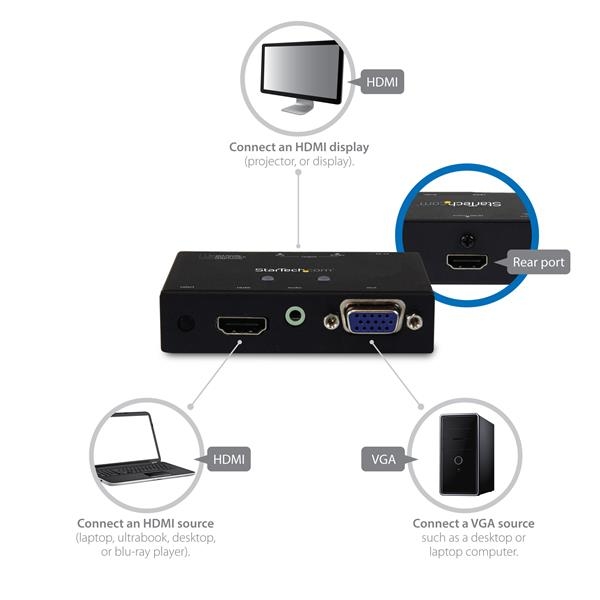

The VS221VGA2HD HDMI & VGA Auto Switch lets you connect an HDMI and a VGA audio/video source to the same HDMI display or projector, and automatically or manually switch between which video source is displayed.
We Accept
Manufacture # Startech | Model # VS221VGA2HD

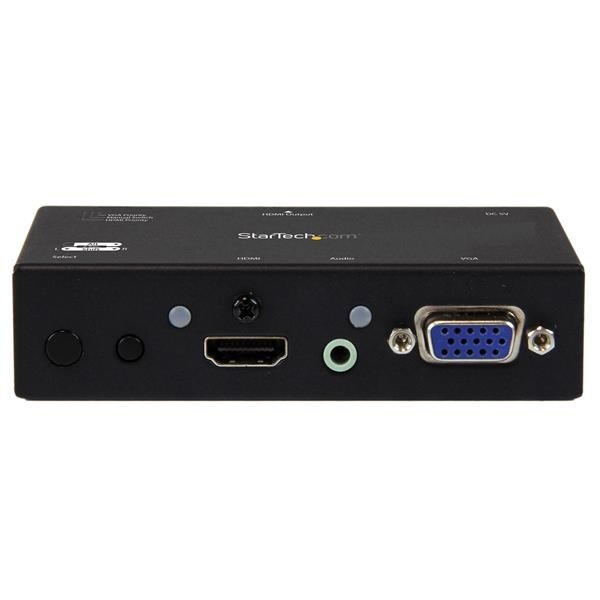

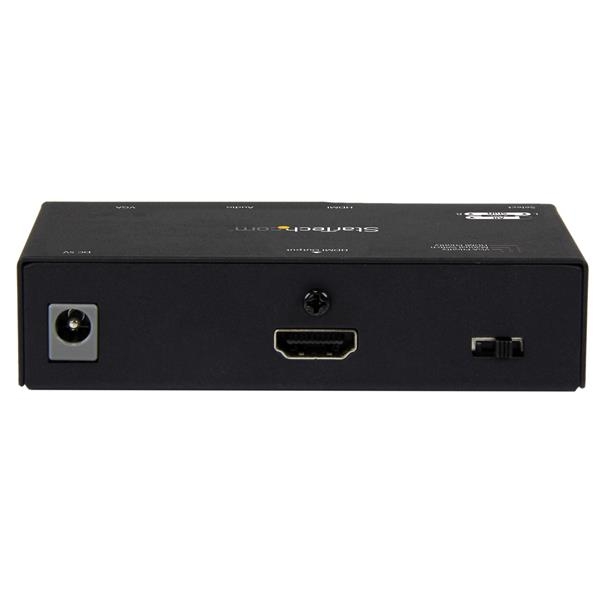

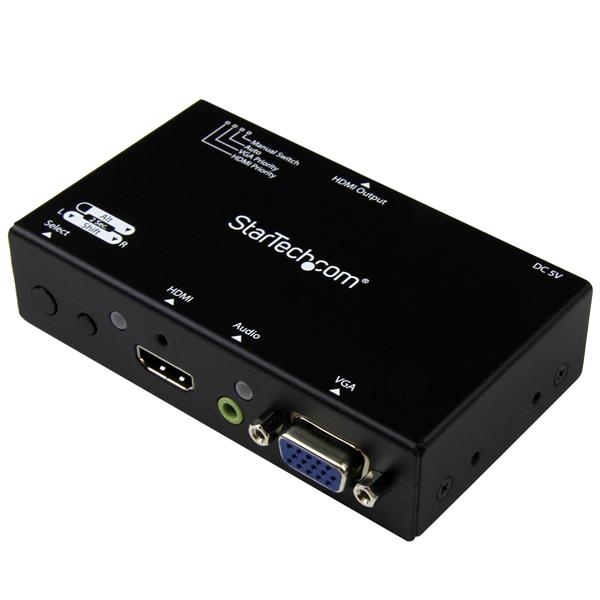

The VS221VGA2HD HDMI & VGA Auto Switch lets you connect an HDMI and a VGA audio/video source to the same HDMI display or projector, and automatically or manually switch between which video source is displayed. The multi-input A/V switch supports video resolution up to 1920x1200 (1080p) and includes mounting hardware for a tidy professional installation.
The A/V switch features built-in VGA conversion, enabling you to connect an HDMI and a VGA video source to the same HDMI display without the use of additional adapters or scalers.
Features:
Manufacturer Warranty: 02 Years Limited Warranty
| Warranty | 2 Years |
| 1 - Connector A | HDMI (19 pin) VGA (15 pin, High Density D-Sub) 3.5 mm Mini-Jack (3 Position) |
| 1 - Connector B | HDMI (19 pin) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0%~80% |
| Ports | 2 |
| AV Input | HDMI, VGA |
| AV Output | HDMI |
| Audio | Yes |
| 1 - LED Indicators | VGA Port Selected, HDMI Port Selected |
| Package Height | 64 mm [2.5 in] |
| Package Length | 15.7 cm [6.2 in] |
| Shipping (Package) Weight | 657 g [23.2 oz] |
| Package Width | 23.6 cm [9.3 in] |
| Maximum Analog Resolutions | 1920x1200 |
| Maximum Digital Resolutions | 1920x1200 |
| Supported Resolutions | Supports resolutions up to 1920x1200 / 1080p |
| Wide Screen Supported | Yes |
| Audio Specifications | 2-channel 3.5mm stereo audio (VGA), 7.1 surround sound (HDMI) |
| Weight of Product | 226 g [8.0 oz] |
| Material | Steel |
| Product Length | 10.2 cm [4.0 in] |
| Product Width | 54 mm [2.1 in] |
| Product Height | 29 mm [1.1 in] |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.4 A |
| Output Voltage | 5 DC |
| Output Current | 0.0416666666666667 |
| Power Consumption (In Watts) | 5 |

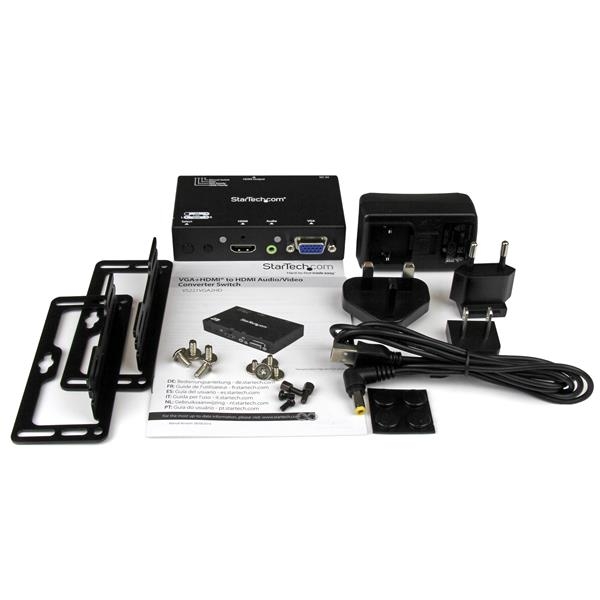

| 1 - Included in Package | VGA+HDMI to HDMI converter switch mounting kit universal power adapter (NA, EU, UK, ANZ) instruction manual |
