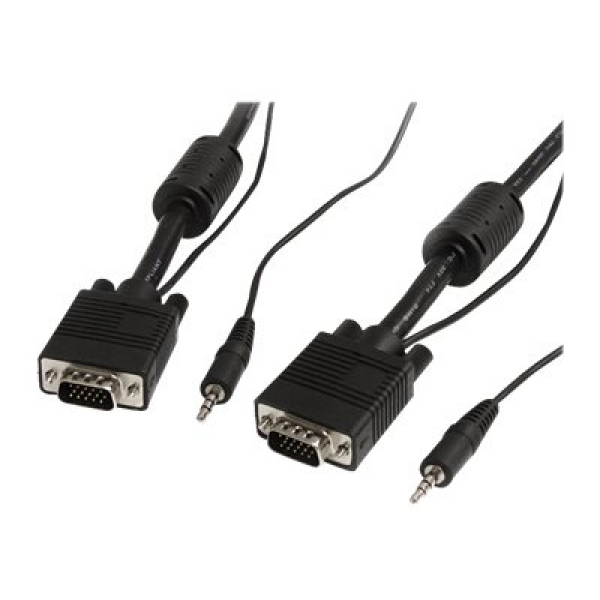

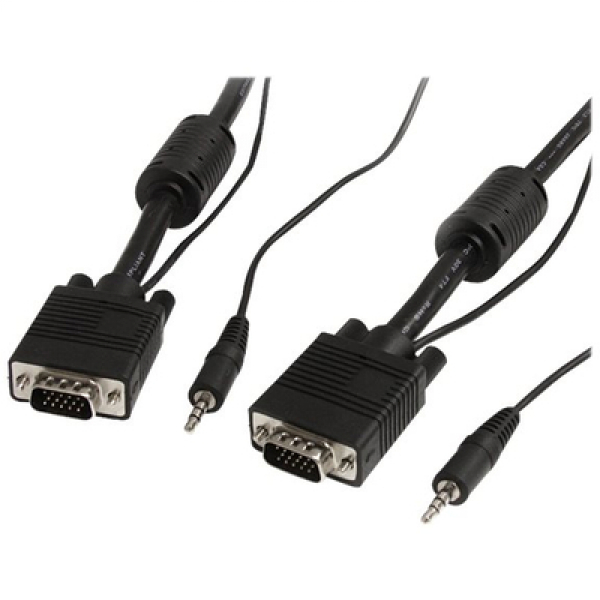

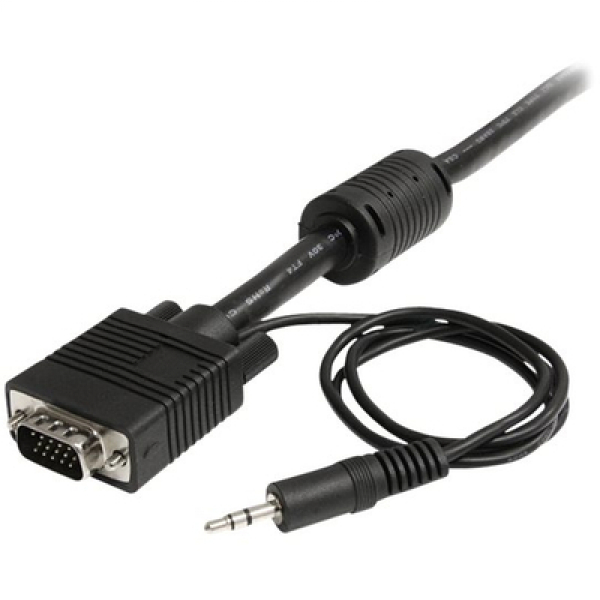

Startech 2m High Resolution Monitor VGA Cable With Audio (MXTHQMM2MA) The MXTHQMM2MA 2-meter High Resolution VGA Cable with Audio is a high quality SVGA cable designed to provide the highest video quality possible through VGA - a single cable solution for connecting both video between a VGA video card and monitor, and audio connections between a sound card and external audio device.
StarTech.com’s high resolution VGA cable with audio features high quality male-to-male coaxial VGA cable, and is designed to eliminate picture "ghosting" and fuzzy images that are inherent to non-coaxial cables, while providing superior EMI interference protection by using ferrite cores near the connector ends.
FEATURES :
- Triple-coaxial + twisted-pair wire for crystal clear display
- Impedance matched at 75 Ohms for full brightness and vibrant picture color
- Molded connector ends with strain relief
- Ferrite core eliminates EMI interference
SPECIFICATIONS :
| Cable Jacket Type |
PVC - Polyvinyl Chloride |
| Cable Shield Type |
Aluminum-Mylar Foil with Braid |
| Connector Plating |
Nickel |
| Fire Rating |
CMG Rated (General Purpose) |
| Number of Conductors |
14 |
| Number of Ferrites |
2 |
| Regulatory Approvals |
UL2919 |
| Impedance |
75 Ohm |
| Connector A |
1 - 3.5 mm Mini-Jack (3 Position) Male
1 - VGA (15 pin, High Density D-Sub) Male |
| Connector B |
1 - 3.5 mm Mini-Jack (3 Position) Male
1 - VGA (15 pin, High Density D-Sub) Male |
| Humidity |
0 - 80 %RH |
| Operating Temperature |
0 to 60 °C |
| Storage Temperature |
-20 to 80 °C |
| Cable Length |
2 m [6.6 ft] |
| Color |
Black |
| Connector Style |
Straight |
| Product Length |
2000 mm [78.7 in] |
| Product Weight |
246 g [8.7 oz] |
| Wire Gauge |
28 AWG |
| Package Quantity |
1 |
| Shipping (Package) Weight |
0.3 kg [0.6 lb] |
| Included in Package |
1 - 2 m Coax High Resolution Monitor VGA Cable with Audio HD15 M/M |
