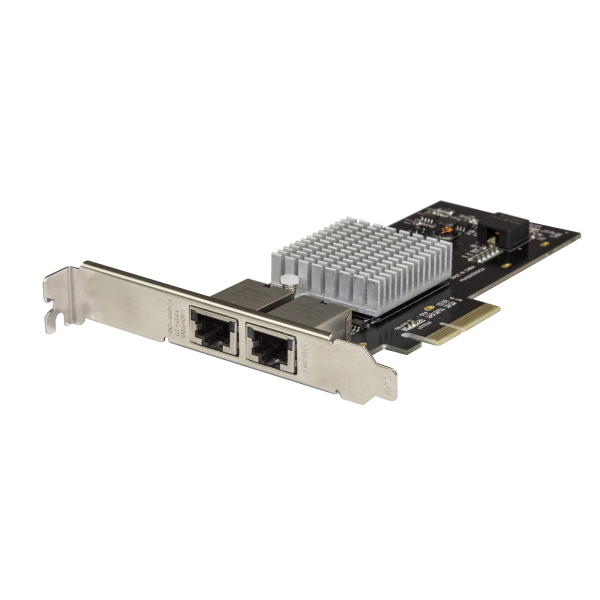

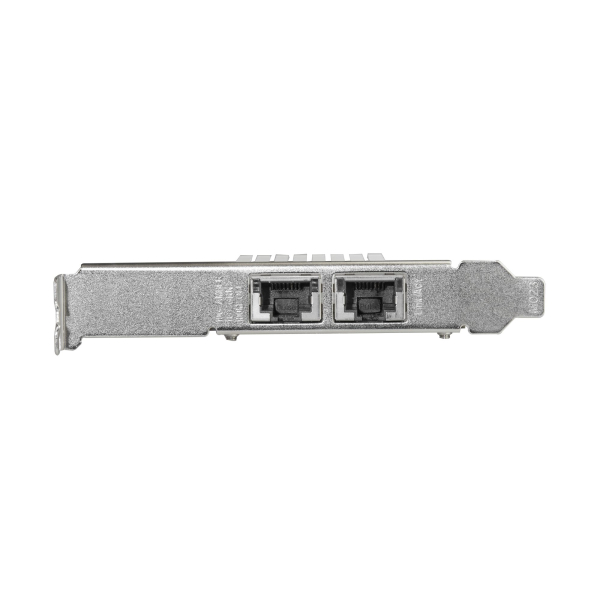

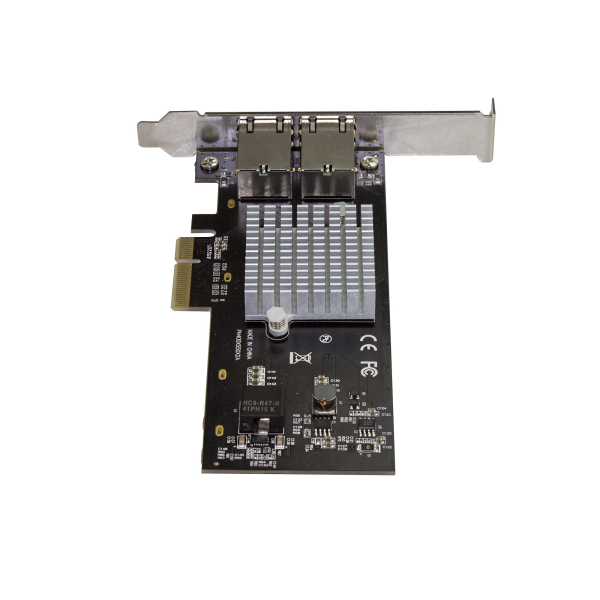

StarTech 2-port PCIe 10GBase-T / NBASE-T Ethernet Network PCIe Card - Intel X550

Sku: ST10GPEXNDPI

Availability: Out of Stock

Brand: StarTech

Category: Wired Adapters

$783.20 $1,062.60 26% OFF

Material: Steel, Connector Type(s): 1 - PCI Express x4, External Ports: 2 - RJ-45, Interface: RJ45 (10 Gigabit Ethernet), Maximum Data Transfer Rate: 10 Gbps, Compatible Networks: 10 Gbps/5G/2.5G/1G/100 Mbps, Jumbo Frame Support: 9K max., Warranty: 02 Years, ST10GPEXNDPI.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # StarTech | Model # ST10GPEXNDPI



This dual-port network card offers versatile and cost-efficient network connectivity, by increasing the available network bandwidth without having to replace your existing cabling infrastructure. The 5-speed network card lets you add two 10G/NBASE-T RJ45 ports to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G, 1G, and 100Mbps.



Features:

  • Dual Port 10gbe Network Interface Card: 10Gbps Dual port PCIe Network Adapter Card copper combines high data transfer rates to provide redundancy or independent connections to multiple networks
  • Tech Specs: 10 Gbps | 2x RJ45 Ports |Intel X550AT2 | 10GBASE-T & NBASE-T | Multi-Gigabit 1 / 2.5 / 5 / 10 Gbps | PCI Express 3.0 x4 | 9K Jumbo Frames | VLAN | VT-c | PXE | Full & low profile | 2Yr Warranty
  • Tested & Verified Performance: We use Spirent SmartBits validation tools to validate performance; compatible with major operating systems
  • Advanced Features: Workstation NIC Supports SAN (Storage Area Network) advanced features including iSCSI offload and Fibre Channel over Ethernet (FCoE)



Overview:

  • Material: Steel
  • Connector Type(s): 1 - PCI Express x4
  • External Ports: 2 - RJ-45
  • Interface: RJ45 (10 Gigabit Ethernet)
  • Maximum Data Transfer Rate: 10 Gbps
  • Compatible Networks: 10 Gbps/5G/2.5G/1G/100 Mbps
  • Jumbo Frame Support: 9K max.



Manufacturer Warranty: 02 Years Limited Warranty

Connector(s) :-
Connector Type(s) 1 - PCI Express x4
External Ports 2 - RJ-45
Environmental :-
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 20% ~ 80% RH
Hardware :-
Ports 2
Interface RJ45 (10 Gigabit Ethernet)
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Industry Standards IEEE 802.3an (10GBASE-T)
IEEE 802.3ab (1GBASE-T)
IEEE 802.3u (100BASE-T)
IEEE 802.3az (Energy Efficient Ethernet)
PCI Express Rev 3.0
Chipset ID Intel - X550AT2
Indicators :-
LED Indicators 2 - Link Speed
2 - Link/Activity
Performance :-
Maximum Data Transfer Rate 10 Gbps
Compatible Networks 10 Gbps/5G/2.5G/1G/100 Mbps
Auto MDIX Yes
Full Duplex Support Yes
Jumbo Frame Support 9K max.
Promiscuous Mode Yes
Supported Protocols IEEE 802.3X (Flow Control Support)
IEEE 802.1q (VLAN tagging)
Physical Characteristics :-
Color Black
Material Steel
Product Length 9.0 in [22.8 cm]
Product Width 0.6 in [1.5 cm]
Product Height 5.2 in [13.2 cm]
Weight of Product 3.5 oz [98.0 g]
Software :-
OS Compatibility Windows 7, 8, 8.1, 10, 11
Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
(Windows Drivers are supported in 64-bit only)
Linux 3.x and up - LTS Versions only
Special Notes / Requirements :-
System and Cable Requirements Available PCI Express x4 slot
For Windows, NBase-T support requires Windows 8 or higher
What's in the Box :-
Included in Package 1 - network card
1 - low-profile bracket
1 - quick-start guide
