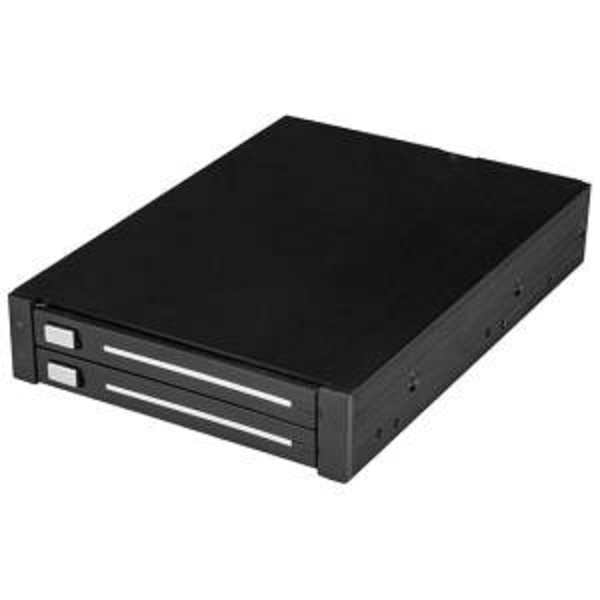

Startech 2-bay 2.5in Sata Ssd/hdd Rack For 3.5 Ba (HSB225S3R)

Brand : STARTECH
SKU : HSB225S3R
Availablity : In stock

Startech HSB225S3R | 2 x 2.5" Drives to 3.5" Bay | Interface SATA | Insertion Rating 50,000 | Drive Connectors 1 x 22 pin SATA Data + Power (7 + 15 pin) Receptacle | Host Connectors 1 x Molex (4 pin, PWM) + 1 x 7 pin SATA Data Receptacle.



This HDD rack lets you install two 2.5” SATA hard drives or solid-state drives into a single 3.5” front bay. With configurable RAID support, the SATA drive rack provides an ideal data storage solution.

Ask a question about this product

$114.00

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Product Description

Manufacture # Startech  | Model # HSB225S3R



This HDD rack lets you install two 2.5” SATA hard drives or solid-state drives into a single 3.5” front bay. With configurable RAID support, the SATA drive rack provides an ideal data storage solution. Configure and arrange your drives for increased drive capacity, or add data redundancy, with built-in hardware RAID functionality. The HDD rack offers software and operating system independent operations and with multiple RAID options, such as RAID 0, RAID 1, spanning, or JBOD, you can build the data storage solution that works best for you.



Features:

  • SATA III (6Gbps) drive interface, compatible with SATA I, II and III
  • Increase drive capacity, performance, or data redundancy, with multiple RAID modes: RAID 0, RAID 1, spanning
  • Supports HSB225S3R up to two 2.5” SATA SSD/HDDs
  • Front-mount bay design for installation into any standard 3.5" front bay
  • Trayless HSB225S3R design, with hot-swappable bays, makes it easy to swap drives in and out of the mobile rack
  • Well-built, durable aluminum construction
  • LED indicators for power and activity, to easily monitor your hard drives
  • 50,000 insertion rating
  • Single SATA data and power connection.



Overview:

  • Model: HSB225S3R
  • Color: Black
  • Mobile Rack Drives Support: 2 x 2.5" Drives to 3.5" Bay
  • Compatible Products: 2.5"



Manufacturer Warranty: 02 Years Limited Warranty



Technical Specifications

Brand StarTech.com
Model HSB225S3R
Color Black
Mobile Rack Drives Support 2 x 2.5" Drives to 3.5" Bay
Mobile Rack Interface Drive Connectors: 1 x 22 pin SATA Data + Power (7 + 15 pin) Receptacle

Host Connectors: 1 x Molex (4 pin, PWM) + 1 x 7 pin SATA Data Receptacle
Compatible Products 2.5"
Specifications Chipset ID: ASMedia - ASM1092R

Compatible Drive Types: SATA

Drive Installation: Removable

Drive Size: 2.5in

Interface : SATA

Number of 2.5 inch bays: 2

Number of Drives: 2

Supported Drive Height(s): 5mm / 7mm / 9.5mm

Hot Swap Capability: Yes
Insertion Rating: 50,000
Port Multiplier: Yes
RAID: Yes
S.M.A.R.T. Support: Yes
Supported RAID Modes:
RAID 0 (Striped Disks)
RAID 1 (Mirrored Disks)
BIG (Spanning or Concatenation)
JBOD - (Just a Bunch of Disks)

TRIM Support: Yes

Type and Rate: SATA III (6 Gbps)
Package Contents 1 - mobile rack
1 - SATA data cable
1 - SATA to Molex adapter
1 - installation screw kit
1 - quick-start guide
