Connector A: USB-C / Thunderbolt, Connector B: DisplayPort , Bandwidth: HBR3, Video Revision: DisplayPort 1.4, Warranty: 03 Years, CDP2DP141MBD.
100% Guarantee Safe Checkout
Description
Manufacture # StarTech | Model # CDP2DP141MBD

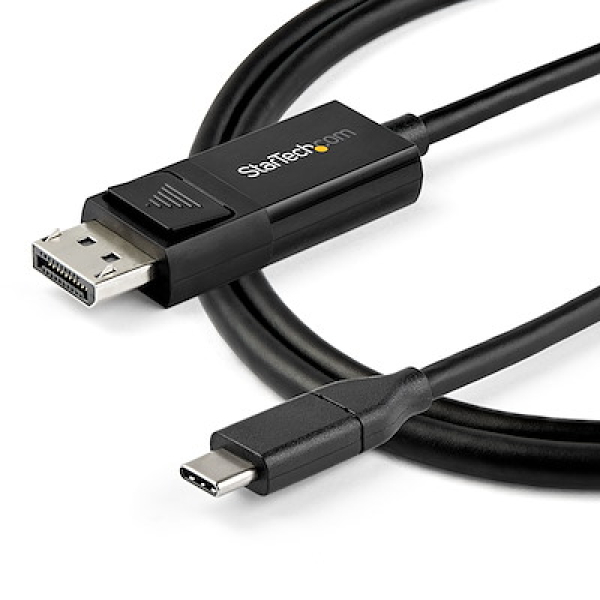

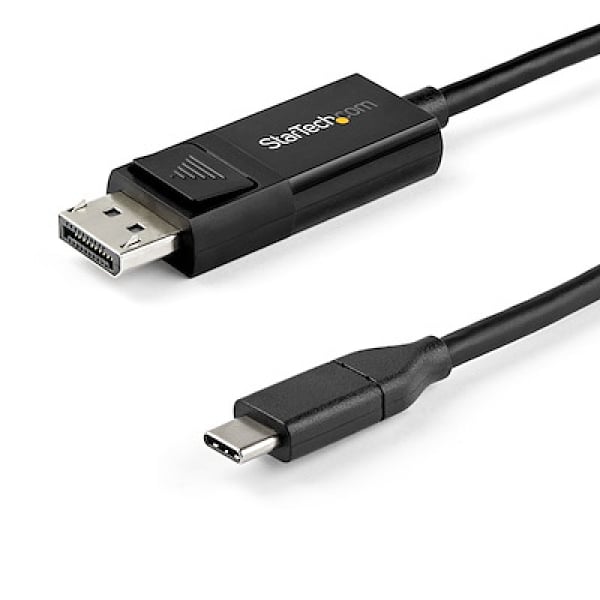

The USB-C to DisplayPort 1.4 cable lets you connect your USB Type-C (or Thunderbolt 3 ) device to a DisplayPort display, or a DP device to a USB-C display with just one cable. Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps. The video cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for the home, office, or other work environments, while future-proofing for 8K implementation.
Features:
Overview:
Manufacturer Warranty: 03 Years Limited Warranty
Connector A | 1 - USB-C (24 pin) DisplayPort Alt Mode 1 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps) |
Connector B | 1 - DisplayPort (20 pin) |
Operating Temperature | 0°C to 45°C (32°F to 113°F) |
Storage Temperature | -10°C to 70°C (14°F to 158°F) |
Humidity | 10%-85% RH |
Active or Passive Adapter | Active |
AV Input | USB-C DisplayPort - 1.4 |
AV Output | DisplayPort USB-C |
Audio | Yes |
Chipset ID | Chrontel - CH7213C-BF Texas Instruments - TUSB544 VIA Labs - VL170 |
Audio Specifications | DisplayPort - 7.1 Channel Audio USB-C - 7.1 Channel Audio |
Bandwidth | HBR3 |
Maximum Digital Resolutions | DisplayPort: 7680x4320 (8K) / 60Hz USB-C: 7680x4320 (8K) / 60Hz |
Video Revision | DisplayPort 1.4 |
Wide Screen Supported | Yes |
Color | Black |
Product Height | 0.4 in [1 cm] |
Product Length | 38.2 in [97.0 cm] |
Weight of Product | 1.6 oz [46 g] |
Product Width | 0.9 in [2.2 cm] |
Material | Plastic |
System and Cable Requirements | Your USB-C device must support DisplayPort Alt Mode to work with this cable To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4 This cable is not compatible with the Surface Dock 2 |
Included in Package | 1 - 1 m USB-C to DisplayPort 1.4 Bi-Directional Adapter Cable |
