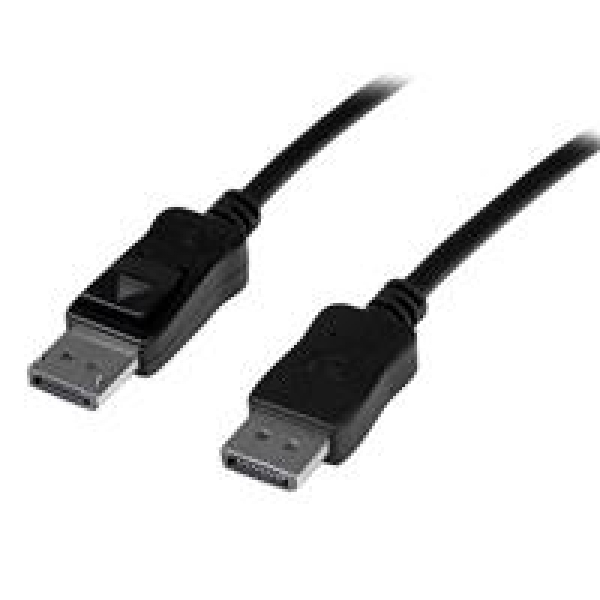

STARTECH 10m Active Displayport Cable - DISPL10MA

Description

Manufacture # Startech | Model # DISPL10MA

The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.

This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.

The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560×1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.

Features:

• ACTIVE DISPLAYPORT CABLE: Active 10m (32.8ft) DisplayPort cable supports 4K (3840x2160p at 30Hz), 10.8 Gbps bandwidth, HBR, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (1080p at 60Hz)
• ACTIVE CIRCUITRY: Active bus powered amplifier boosts video signals over longer distances up to 10 m (32.8 ft) (no external power supply needed), supports additional color spaces
• LIGHT AND DURABLE CABLE: Long-lasting light-weight cable; 32AWG wire; Flexible PVC jacket; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
• SPECS: 10 m (32.8 ft) | Black | DisplayPort v1.2 Latching Male to Male | 32 AWG | PVC cable jacket | Shield: Al-Mylar foil with Braid | Protocols: HBR, MST, GTC | 2-Year Warranty | Note: DP connector labelled "Display" connects to the display side

Overview:

• 1 - Connector A: DisplayPort (20 pin)
• 1 - Connector B: DisplayPort (20 pin)
• Number of Conductors: 19
• Connector Plating: Nickel
• Cable Jacket Material: PVC - Polyvinyl Chloride

Manufacturer Warranty: 02 Years Limited Warranty
