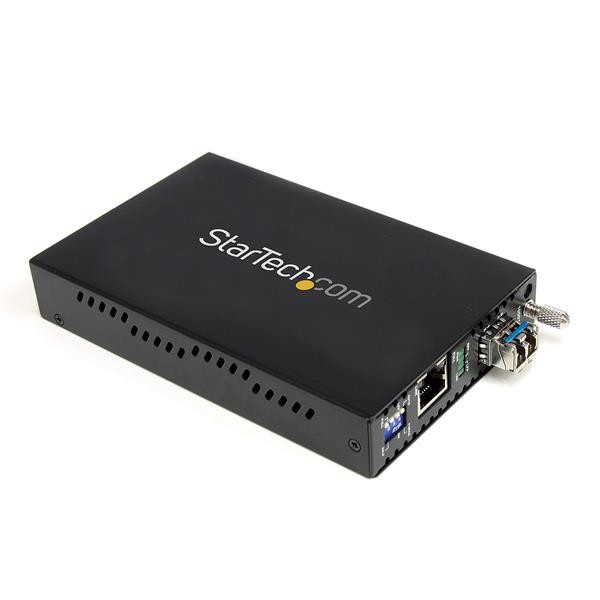

1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km(ET1000S40LC2)The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).Backed by a StarTech.com 2-year warranty and free lifetime technical support.Link loss forwarding, remote monitoring of status ensures maximum up-time Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
SPECIFICATION:
Warranty |
2 Years |
Industry Standards |
IEEE802.3ab (1000BASE-T) |
IEEE802.3z (1000BASE-SX/LX) |
PoE |
No |
WDM |
No |
Auto MDIX |
Yes |
Fiber Operating Mode |
Half/Full-Duplex |
Fiber Type |
Single Mode |
Jumbo Frame Support |
9K max. |
Max Transfer Distance |
40 km (24.8 mi) |
Maximum Data Transfer Rate |
2000 Mbps (full duplex mode) |
MTBF |
65,000 Hours |
Wavelength |
1310nm |
Local Unit Connectors |
1 - Fiber Optic LC Duplex Female |
|
1 - RJ-45 Female |
Center Tip Polarity |
Positive |
Input Current |
0.36A |
Input Voltage |
115V-230V AC |
Output Current |
1.6 A |
Output Voltage |
12 DC |
Plug Type |
M |
Power Consumption (In Watts) |
4 |
Power Source |
AC Adapter Included |
Humidity |
10~90% RH |
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
Storage Temperature |
-10°C to 70°C (14°F to 158°F) |
Color |
Black |
Product Height |
0.9 in [24 mm] |
Product Length |
6.1 in [155 mm] |
Product Weight |
14.7 oz [416 g] |
Product Width |
3.4 in [87 mm] |
Shipping (Package) Weight |
1.8 lb [0.8 kg] |
Included in Package |
1 - Fiber Media Converter |
|
1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand |
|
1 - Grounding Screw |
|
1 - Instruction Manual |
