STARTECH 10 Port Industrial Usb 3.0 Hub - Esd ST1030USBM

SKU : ST1030USBM
Brand : StarTech
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Startech ST1030USBM, 10 Port Industrial Usb 3.0 Hub, Chipset Genesys Logic - GL3522, MTBF 119388 hours, USB 3.0 - 5 Gbit/s, Connector 10 - USB Type-A (9 pin) USB 3.0 (5 Gbps) Female, 1 - USB Type-B (9 pin) USB 3.0 Female, 1 - Terminal Block (2 Wire), LED 1 - Power (Green), Black, Steel. This TAA compliant 10-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing.
Ask a question about this product
$290.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Startech | Model # ST1030USBM



This TAA compliant 10-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.



Features:

  • Protects your connected devices with 15kV Air and 8kV Contact ESD protection
  • Surge protection of 350W on the downstream and upstream USB ports
  • Mount industrial USB hub where required with built-in mounting brackets or included DIN rails
  • Offers flexible, wide-range power inputs with a 7-24V DC terminal block
  • USB Battery Charging Specification 1.2 up to 2.4A on any port to a maximum of 50W total



Overview:

  • Cable Length: 80 in [2032 mm]
  • Color: Black
  • Form Factor: Industrial
  • Material: Steel



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Bus Type USB 3.0
Chipset ID Genesys Logic - GL3522
Fast-Charge Port(s) Yes
Industry Standards USB Battery Charging Specification Rev. 1.2
USB 3.0 - Backward compatible with USB 2.0/1.1
Interface USB 3.0
Ports 10
USB-C Device Port(s) No
USB-C Host Connection No
ESD Protection +/-15kV (Air)
+/-8kV (Contact)
Maximum Data Transfer Rate 5 Gbps
MTBF 119388 hours
Surge Protection 350W on the DFP and UFP
Type and Rate USB 3.0 - 5 Gbit/s
Connector Type(s) 10 - USB Type-A (9 pin) USB 3.0 (5 Gbps) Female
1 - USB Type-B (9 pin) USB 3.0 Female
1 - Terminal Block (2 Wire)
OS Compatibility OS Independent; No additional drivers or software required
Note If connected to a USB 2.0 host port, performance may be limited
This product is intended for use with terminal block power only – Standard AC adapter not available
System and Cable Requirements
Host computer with an available USB 3.0 port
LED Indicators 1 - Power (Green)
Input Voltage 7 ~ 24 DC
Power Source Terminal Block
Humidity 5%~95% RH (Non-condensing)
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Cable Length 80 in [2032 mm]
Color Black
Form Factor Industrial
Material Steel
Product Height 1.2 in [3.1 cm]
Product Length 7.8 in [19.8 cm]
Product Width 2.2 in [56 mm]
Weight of Product 12.6 oz [357 g]
Package Height 2.2 in [57 mm]
Package Length 9.7 in [24.6 cm]
Package Width 6.7 in [16.9 cm]
Shipping (Package) Weight 20.7 oz [587 g]

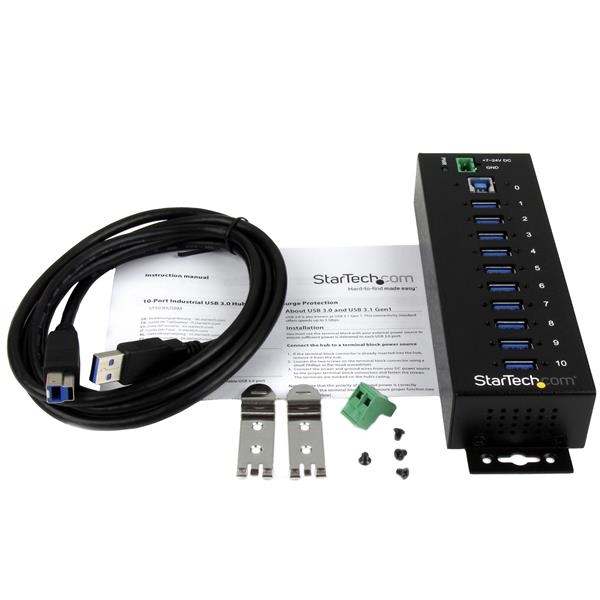

Included in Package 1 - 10-port industrial USB 3.0 hub
1 - USB 3.0 host cable
1 - DIN rail mounting kit
1 - terminal block (2 wire)
1 - instruction manual
