STARTECH 1 Port Low Profile Pci 10/100 Mbps ST100SLP

SKU : ST100SLP
Brand : StarTech
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
STARTECH 1 Port Low Profile Pci 10/100 Mbps ST100SLP, 1 - Connector Type(s): PCI / PCI-X (Universal 3.3 & 5V, 32-bit), 1 - External Ports: RJ-45, Ports: 1, Interface: RJ45 (10/100 Ethernet), Bus Type: PCI / PCI-X (5 / 3.3V), Card Type: Low Profile (SP bracket incl.), Industry Standards: IEEE 802.3/802.3u, Chipset ID: Realtek - RTL8100C, 1 - LED Indicators: Network link/activity, 10/100Mbps selection, Maximum Data Transfer Rate: 200 Mbits/Sec, Compatible Networks: 10/100 Mbps, Full Duplex Support: Yes   This 1 Port PCI Fast Ethernet Network Adapter Card offers a reliable, cost-effective Ethernet net
Ask a question about this product
$21.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Startech | Model # ST100SLP

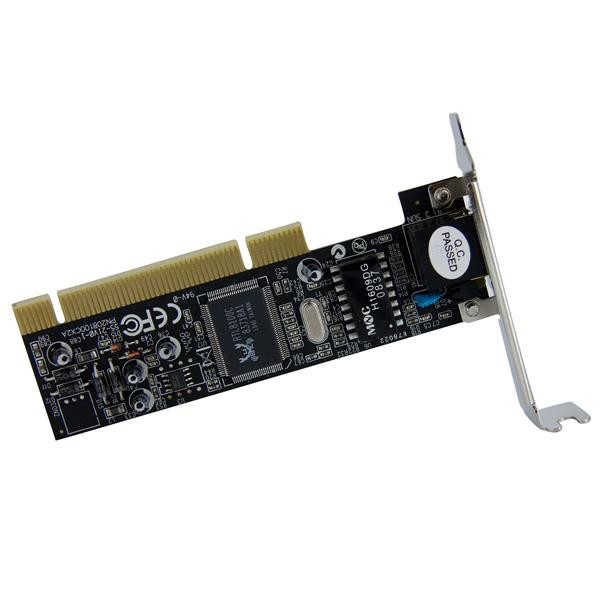

This 1 Port PCI Fast Ethernet Network Adapter Card offers a reliable, cost-effective Ethernet network connection that's ideal for small form factor computers.



Delivering a simple connection to 10/100Mbps (Fast) Ethernet networks, the NIC features auto-negotiation that senses speed and duplex capabilities of connected devices and full duplex support for data transfer rates up to 200Mbps.



A versatile network interface solution, the NIC features a low profile mounting bracket that's suitable for small form factor computers, and is supported by all popular operating systems including Windows, Linux, Mac OS and Novell platforms. Backed by StarTech.com's Lifetime Warranty.



Features:

  • A single 10/100 Mbps compatible RJ45 Ethernet port
  • Network Link/Activity and 10/100 Mbps LED indicators
  • Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Full and half duplex support
  • Crossover Detection & Auto-Correction (Auto MDI/MDI-X)
  • Supports optional Boot ROM (Realtek RTL8139D Compatible Boot ROM required)



Overview:

  • 1 - Connector Type(s): PCI / PCI-X (Universal 3.3 & 5V, 32-bit)
  • 1 - External Ports: RJ-45
  • Ports: 1
  • Interface: RJ45 (10/100 Ethernet)
  • Bus Type: PCI / PCI-X (5 / 3.3V)
  • Card Type: Low Profile (SP bracket incl.)



Manufacturer Warranty: Lifetime Limited Warranty

Technical Specifications

Warranty Lifetime
1 - Connector Type(s) PCI / PCI-X (Universal 3.3 & 5V, 32-bit)
1 - External Ports RJ-45
Operating Temperature 0°C to 55°C (32°F to 131°F)
Humidity 10~90% RH Non-condensing
Ports 1
Interface RJ45 (10/100 Ethernet)
Bus Type PCI / PCI-X (5 / 3.3V)
Card Type Low Profile (SP bracket incl.)
Industry Standards IEEE 802.3/802.3u
Chipset ID Realtek - RTL8100C
1 - LED Indicators Network link/activity, 10/100Mbps selection
Package Height 30.0 mm [1.2 in]
Package Length 17.1 cm [6.7 in]
Shipping (Package) Weight 132.0 g [4.7 oz]
Package Width 14.2 cm [5.6 in]
Maximum Data Transfer Rate 200 Mbits/Sec
Compatible Networks 10/100 Mbps
Full Duplex Support Yes
Weight of Product 42.0 g [1.5 oz]
Product Length 12.0 cm [4.7 in]
Product Width 20.0 mm [0.8 in]
Product Height 80.0 mm [3.1 in]
OS Compatibility Windows® NT, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2016, 2019
Mac OS® 10.0.4, 9.1 / 9.0
Unix, Linux 2.6 to 4.11.x LTS Versions Only
NetWare 3.x/4.x
Note IRQ Line and I/O Address Assigned by system
1 - Included in Package Low Profile 10/100 Mbps Ethernet PCI Card
Full Profile bracket
Driver CD
Instruction Manual
