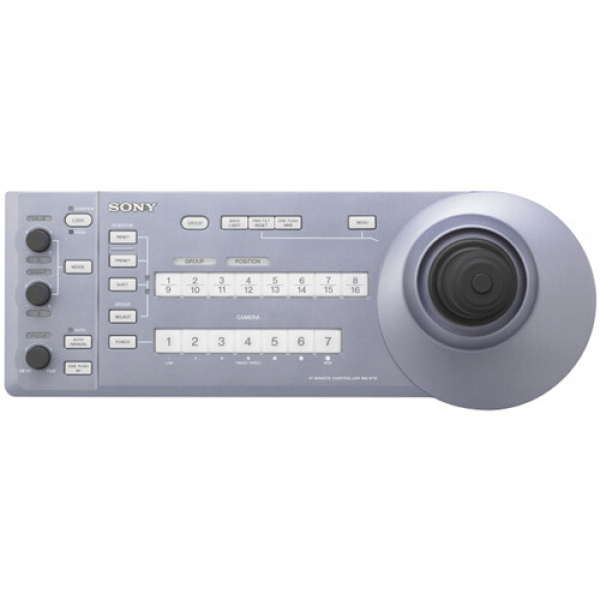

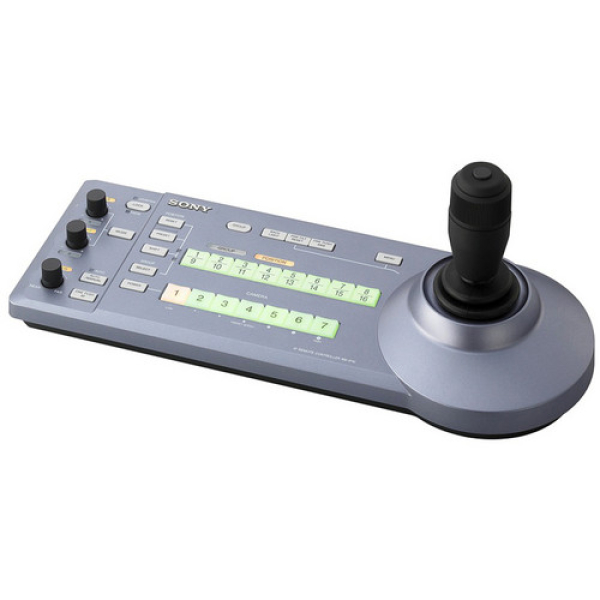

Sony RM-IP10 IP remote control panel for BRC cameras

Sku: RM-IP10

Availability: Out of Stock

Brand: Sony

Category: Remote Control

$3,199.90

Power Connector: JEITA type 4 (DC IN 12V), Zoom Control selectable: Ring of Joystick, max Controller qty (/sys): 5, Input voltage: 12V DC (10.8 to 13.2V DC), 01 Year Limited Warranty, RM-IP10.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # Sony | Model # RM-IP10



The RM-IP10 remote control panel gives you control of up to 112 BRC cameras over an IP network, or 7 cameras over a traditional VISCA-controlled network. Up to 5 remote control panels can share control of the system.


Features:

  • The RM-IP10 remote control panel gives you control of up to 112 BRC cameras over an IP network.
  • The RM-IP10 can also control up to 7 BRC cameras over a traditional VISCA (Video System Control Architecture) network.
  • The RM-IP10 links to an IP network with via a RJ-45 connector providing very easy, low cost and speedy installation.
  • The RM-IP10 provides for convenient configuration of system IPs and BRCs numbers, with location free configuration of anetwork.
  • Up to 5 RM-IP10 control panels can be used on a single network allowing shared control and simultaneous multi-operator control of large camera systems.


Overview:

  • Power Connector: JEITA type 4 (DC IN 12V)
  • Zoom Control selectable: Ring of Joystick
  • max Controller qty (/sys): 5
  • Input voltage: 12V DC (10.8 to 13.2V DC)



Manufacturer Warranty: 01 Year Limited Warranty

Input/Output Connectors:-
Control input/output VISCA RS-232C OUT Connector : Mini DIN 8pin type
VISCA RS-422 connector: 9-pin type LAN : RJ-45, 10BASE-T/100BASE-TX automatically detected
Tally In/Contact Out: 9-pin type
Control signal format 9,600 bps/38,400 bps (for RS-232C/RS-422 communication)
VISCA over IP communication
Power Connector JEITA type 4 (DC IN 12V)
Use Interface:-
Display No
Speed Control No
Zoom Seesaw Lever No
Zoom Ring of Joystick Yes
Zoom Control selectable Ring of Joystick
ASSIGN button 0
Kensington lock hole No
Camera Control:-
Maximum IP Connections 112
Maximum Serial Connections 7
Control Protocol VISCA over IP/VISCA RS-422/VISCA RS-232C switchable
max Controller qty (/sys) 5
Direct Function of Buttons/Knobs:-
Exposure mode selection No
One-push white balance auto adjustment No
One-push black balance auto adjustment No
Toggle color bars output on/off No
Toggle backlight compensation on/off Yes
Toggle flicker compensation on/off No
Display the status of iris,gain,shutter speed and zoom position No
R gain and B gain adjustment Yes *1
R black and B black adjustment Yes *1
Master black adjustment No
Detail level display No
Detail level adjustment No
Knee point display No
Knee point adjustment No
AE level display No
AE level adjustment No
Iris setting display No
Iris value adjustment Yes *1
Gain setting display No
Gain value adjustment Yes *1
Shutter speed display No
Shutter speed adjustment Yes *1
General:-
Input voltage 12V DC (10.8 to 13.2V DC)
Current consumption 0.3A max. (at 12V DC), 3.6W
Operating temperature 0 °Cto 40 °C(32°F to 104°F )
Storage temperature -20 °C to 60 °C (-4°F to 140°F )
Dimensions (W x H x D) 391.3 mm x 165 mm x 145.9 mm
Mass Approx. 950g (2 lb 15 oz)
