Explore the high-performance 4K camera with 14.2 Megapixels and advanced features like 12x optical zoom, multiple video output options (HDMI, 3G-SDI), and powerful image controls. Ideal for professional use with features like Auto/Manual exposure, white balance, and advanced focusing system.
100% Guarantee Safe Checkout
Description

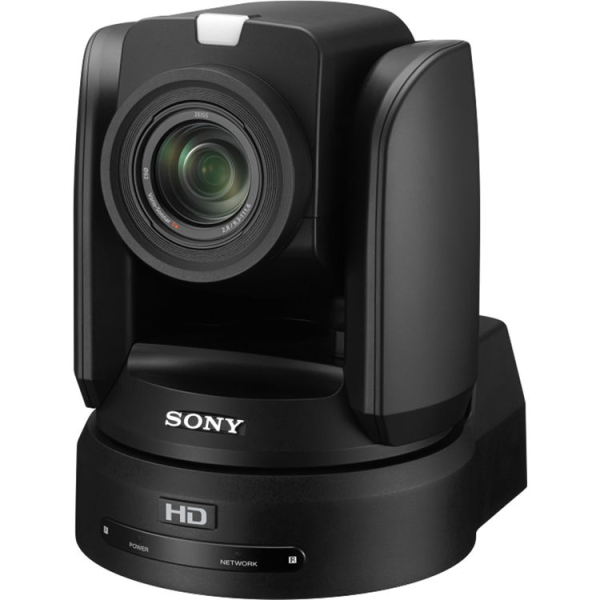

Manufacture: Sony | Model: BRC-X1000
The 4K PTZ Camera is a high-performance imaging solution designed for professional video applications. Featuring a 1.0-type back-illuminated Exmor R CMOS sensor, this camera delivers exceptional image quality with approximately 14.2MP effective pixels. It supports multiple video resolutions, including 4K (2160p) and Full HD (1080p), ensuring crisp, detailed visuals. The 12x optical zoom combined with Clear Image Zoom expands its capabilities, while advanced image processing features such as Wide Dynamic Range (WDR), Visibility Enhancer, and multiple gamma settings optimize footage in varying lighting conditions. The PTZ mechanism provides smooth pan and tilt control, offering a ±170° pan range and +90°/-30° tilt range, ideal for dynamic coverage. With multiple connectivity options, including 3G-SDI, HDMI, and VISCA over IP, the camera integrates seamlessly into broadcast, live streaming, and surveillance setups. Built for reliability, it supports PoE+ for efficient power management and offers external sync input for precise multi-camera configurations.
| Image Sensor | 1.0-type back-illuminated Exmor R CMOS sensor |
| Image Sensor (Number of Effective Pixels) | Approx. 14.2 Megapixels |
| Image Sensor (Total Number of Pixels) | Approx. 20.4 Megapixels |
| Signal System | 2160/29.97p, 1080/59.94p, 1080/59.94i, 720/59,94p, 2160/25p, 1080/50p, 1080/50i, 720/50p, 2160/23.98p, 1080/23.98p |
| Minimum Illumination (50IRE) | 1.7 lux (50IRE, F2.8, 1/30s, Max.Gain) |
| Horizontal Resolution | 1800 TV line (in 3G-SDI output) (center) |
| Gain | Auto/Manual (-3dB to +33dB) |
| Shutter Speed | 1/10000s to 1/8 (59.94/29.97), 1/10000s to 1/6 (50/25/23.98) |
| Exposure Control | Auto, Manual, Priority mode (shutter priority, iris priority, gain priority), Back light, Spot light |
| White Balance | Auto1/Auto2/One Push/Indoor/Outdoor/Manual |
| Optical Zoom | 12x |
| Clear Image Zoom | 2x *1.5x at 4K resolution |
| Digital Zoom | No |
| Tele Convert Mode | Off, 2x (1920x1080 only) |
| Focusing System | Auto/Manual |
| Horizontal Viewing Angle | 64.6° (Wide-end) |
| Focal Length | f=9.3 to 111.6mm F2.8(Wide), F4.5(Tele) |
| Minimum Object Distance | 1000 mm(Tele), 80 mm(Wide) |
| Pan/Tilt Angle | Pan: ±170°, Tilt: +90°/-30° |
| Pan/Tilt Speed | Pan: 0.3° to 60°/s *1, Tilt: 0.3° to 60°/s *1 |
| Pan/Tilt Slow Mode | Yes |
| Pan/Tilt Operation Noise | NC30 or less (Sony measurement conditions) |
| Preset Position | 100 |
| PTZ Trace Memory | 16 |
| PTZ Motion Sync | Yes |
| Camera Tracking Data Output | Yes (Requires firmware V2.10) |
| Camera Features | Day/Night, Visibility Enhancer, Image Flip On/Off, Picture Profile Preset |
| ND Filter | Off, 1/4, 1/16, 1/64 switchable in menu |
| Color Gain | Yes (15 step) |
| Color Hue | Yes (15 step) |
| Color Matrix | Off/Standard/High Saturation/FL light/MOVIE/STILL/CINEMA/PRO/ITU709/BW |
| Gamma | Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709/Pattern |
| Gamma Level | Yes (15 step) |
| Black Level | Yes (97 step) |
| Black Gamma | Yes (15 step) |
| Knee Point | Yes (13 step) |
| Knee Slope | Yes (15 step) |
| Flicker Cancel | On/Off |
| Interface | 4K Video Output: Dual Link 3G-SDI x2 and HDMI, HD Video Output: 3G-SDI x4 and HDMI |
| HDMI Color Space | YCbCr, 4:2:2, RGB, 4:4:4 |
| Camera Control Interface | VISCA RS-422, RJ45 (In/Out), VISCA over IP RJ45 |
| External Sync. Input | BNC, 75Ω, HD 3-level sync, SD Black Burst |
| Power Connector Type | IEC60130-10 (JEITA standard RC-5320A) TYPE4 |
| Power Requirements | DC 10.8V to 13.2V, PoE+ (IEEE802.3at compliant) |
| Power Consumption | DC12 V: 21.5 W (Max), PoE+: 25.5 W (Max) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Dimensions (W x H x D) | Approx. 198 x 260 x 238mm (without projecting object), Approx. 7 7/8 x 10 1/4 x 9 3/8 inch (without projecting object) |
| Mass | Approx. 4.3kg (Approx. 9 lb 7.7oz) |
| Optional Card Slots | Not needed |
| Body Color | Black and White |
| Size of Screw Hole for Tripod | 1/4-20UNC x2 |
| Mountable Angle | <±15° |
| Ceiling Mount | Yes |
| Supplied Accessories | IR Remote Commander Unit (1), Ceiling bracket (2), Wire rope (1), Screws(M3 x 8) (7), Screws(M4 x 8) (1), HDMI cable fixing plate (1) |
