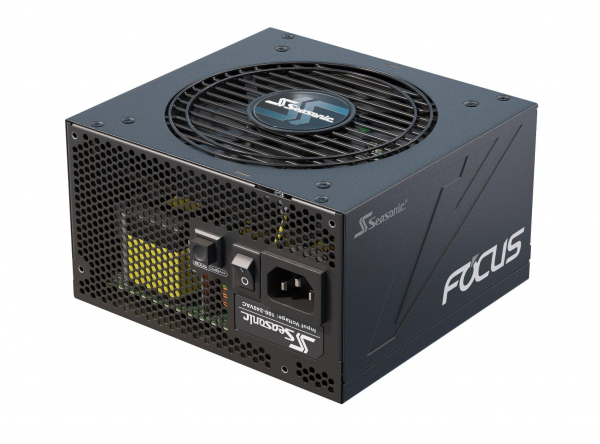

Seasonic Focus GX-650 650W ATX 12V 80 PLUS Gold Fully Modular PSU PSUSEAFOCUSGX650

Sku: PSUSEAFOCUSGX650

Availability: In Stock

Brand: Seasonic

Category: Power Supplies

$199.10

80 PLUS Gold certified 650W power supply with Intel ATX 12 V form factor, featuring a 120mm fan with S3FC technology, fully modular flat black cables, and a 10-year warranty. Offers high efficiency, protection features like OPP, OVP, UVP, OCP, OTP, SCP, and a long MTBF of 100,000 hours. Compatible with Energy Star and RoHS standards.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Seasonic | Model: PSUSEAFOCUSGX650



The 650W 80 PLUS Gold-certified Intel ATX 12V power supply is designed to deliver efficient and stable power for gaming PCs, workstations, and high-performance systems. With a compact form factor of 140mm x 150mm x 86mm, it offers compatibility with a wide range of cases. The PSU features a 120mm Fluid Dynamic Bearing (FDB) fan with S3FC fan control, allowing fanless operation until 30% load for silent performance. The fan has a life expectancy of 50,000 hours at 40°C, ensuring long-term durability. Its fully modular design with flat black cables allows for efficient cable management and improved airflow. Supporting full-range AC input (100-240V) with active PFC, it provides stable power delivery under various voltage conditions. Built-in protection mechanisms, including OPP, OVP, UVP, OCP, OTP, and SCP, safeguard against electrical fluctuations. Certified by global safety and environmental standards such as cTUVus, TUV, CB, and CE, it meets RoHS, WEEE, and Energy Star compliance requirements. With an MTBF of 100,000 hours and backed by a 10-year warranty, this PSU guarantees long-term reliability and efficiency.



Key Features:



  • 80 PLUS Gold Certification for High Energy Efficiency
  • 650W Continuous Power Output for Stable Performance
  • Compact Intel ATX 12V Form Factor (140mm x 150mm x 86mm)
  • 120mm Fluid Dynamic Bearing (FDB) Fan with S3FC Fan Control
  • Fanless Operation Until 30% Load for Silent Performance
  • Fully Modular Design with Flat Black Cables for Clean Cable Management
  • Comprehensive Protection: OPP, OVP, UVP, OCP, OTP, SCP
  • MTBF of 100,000 Hours for Long-Term Reliability
  • Certified for cTUVus, TUV, CB, CCC, BSMI, EAC, CE Safety Standards
  • 10-Year Warranty for Ultimate Peace of Mind

80PLUS® Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size: 120 mm
Fan Control: S3FC - Fanless until 30% load
Fan Bearing: Fluid Dynamic Bearing
Life Expectancy: 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity: Fully Modular
Cable Type: Flat black cables
Electrical Features Operating Temperature: 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan: 100,000 hours
AC Input: Full Range
Protection: OPP, OVP, UVP, OCP, OTP, SCP
Total Continuous Power: 650 W
Safety and Environmental Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty: 10 Years
Power Output AC Input: Voltage: 100 V - 240 V, Current: 9 - 4.5 A, Frequency: 50 Hz - 60 Hz
DC Output:
Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 54 A 0.3 A 3 A
Power (W) 100 W 100 W 648 W 3.6 W 15 W
