750W ATX/EPS power supply with Gold 80PLUS® certification, smart fan control, fully modular black braided cables, and protection against OPP, OCP, OTP, OVP, SCP, UVP. Features a 7-year warranty, Energy Star, ErP Lot 6, RoHS compliance, and more.
We Accept
Manufacture: Seasonic | Model: PSUSEACOREGX750V2

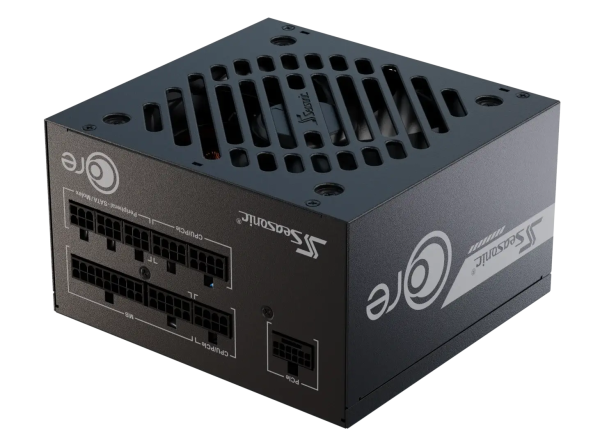

The 750W ATX/EPS power supply is designed for high efficiency, reliability, and quiet operation. With 80 PLUS Gold certification, it delivers up to 90% efficiency at typical loads, reducing energy waste and optimizing system stability. The unit features a 120mm Fluid Dynamic Bearing (FDB) fan with Smart and Silent Fan Control, ensuring efficient cooling while maintaining low noise levels. Built with a fully modular design, it comes with individually braided black cables for a clean and organized build. Engineered for durability, it has a life expectancy of 25,000 hours at 40°C and an MTBF of 100,000 hours at 25°C (excluding the fan). The power supply supports full-range AC input (100-240V) and provides robust +12V rail performance at 62A. Comprehensive protection mechanisms include OPP, OCP, OTP, OVP, SCP, and UVP to safeguard components. Compliance with safety and environmental standards such as BSMI, CE, FCC, RoHS, and Energy Star ensures reliability and sustainability. With a total continuous power output of 750W and a 7-year warranty, this PSU is a dependable choice for gaming and workstation setups.
| 80PLUS® Certification | Gold |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | ATX/EPS |
| Fan Information | Fan Size: 120 mm |
| Fan Control: Smart and Silent Fan Control | |
| Fan Bearing: Fluid Dynamic Bearing | |
| Life Expectancy: 25,000 hours at 40°C, 15% – 65% RH | |
| Cable Information | Modularity: Fully Modular |
| Cable Type: Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature: 0 - 50°C (derating from 100% to 80% from 40°C to 50°C linearly) |
| MTBF @ 25°C, excl. fan: 100,000 hours | |
| AC Input: Full Range | |
| Protection | OPP, OCP, OTP, OVP, SCP, UVP |
| Safety and Environmental | Safety and EMC: BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA |
| Environmental Compliance: Energy Star, ErP Lot 6, REACH, RoHS, WEEE | |
| Warranty | 7 Years |
| Power Output | AC Input: Voltage: 100 V - 240 V, Current: 10 - 5 A, Frequency: 50 Hz - 60 Hz |
| DC Output: +3.3V @ 20A, +5V @ 20A, +12V @ 62A, -12V @ 0.3A, +5VSB @ 3A | |
| Maximum Power: 100W (3.3V & 5V), 744W (+12V), 3.6W (-12V), 15W (+5VSB) | |
| Total Continuous Power: 750W |
