Sku: PSUSEAFOCUSGX750V4
Brand: Seasonic
Category: Power Supplies
Availability: In Stock
Ships in 1-2 days.
Pickup from Seven Hills in 1-2 days.
Shipping Calculator
Find

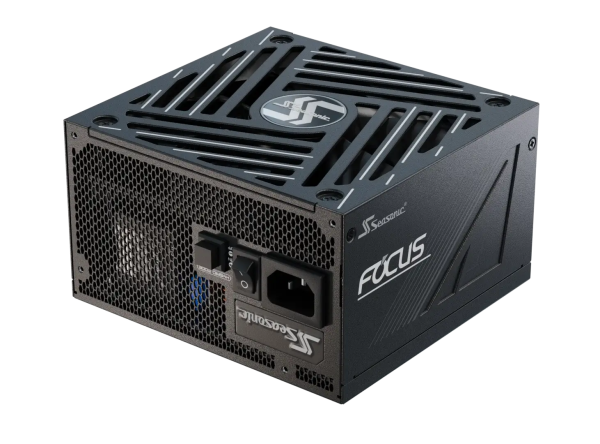

This Gold-certified 80PLUS® power supply provides 750W of continuous power with fully modular cables and advanced protection features. Designed for efficiency and reliability, it includes a 135mm fan with fluid dynamic bearing, a long lifespan, and a 10-year warranty.
We Accept
Manufacture: Seasonic | Model: PSUSEAFOCUSGX750V4
The 750W ATX/EPS power supply is a high-performance and reliable unit designed for gaming, workstations, and high-demand computing environments. With 80 PLUS Gold certification, it provides up to 90% efficiency at typical loads, ensuring reduced energy consumption and stable power delivery. Featuring a 135mm Fluid Dynamic Bearing (FDB) fan with Digital Hybrid Fan Control, this PSU offers optimal cooling while minimizing noise. Its fully modular design, combined with individually braided black cables, ensures efficient cable management for a clean build. Engineered for longevity, it has a fan life expectancy of 50,000 hours at 40°C and an MTBF of 100,000 hours at 25°C (excluding the fan). The unit supports full-range AC input (100-240V) and delivers a powerful +12V rail output of 62A, making it suitable for high-end components. Equipped with comprehensive protection mechanisms, including OCP, OPP, OTP, OVP, SCP, and UVP, it safeguards components from electrical faults. Certified for global safety and environmental compliance standards, such as CE, FCC, RoHS, and Energy Star, this PSU guarantees reliable operation. Backed by a 10-year warranty, it provides long-term peace of mind for any high-performance build.
| 80PLUS® Certification | Gold |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | ATX/EPS |
| Fan Information | Fan Size: 135 mm |
| Fan Control: Digital Hybrid Fan Control | |
| Fan Bearing: Fluid Dynamic Bearing | |
| Life Expectancy: 50,000 hours at 40°C, 15% - 65% RH | |
| Cable Information | Modularity: Fully Modular |
| Cable Type: Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature: 0 - 50°C |
| MTBF @ 25 °C, excl. fan: 100,000 hours | |
| AC Input: Full Range | |
| Protection | OCP, OPP, OTP, OVP, SCP, UVP |
| Safety and Environmental | Safety and EMC: CB, CCC, CE, cTUVus, EAC, TUV, BSMI, FCC |
| Environmental Compliance: Energy Star, ErP Lot 6, REACH, RoHS, WEEE | |
| Warranty | 10 Years |
| Power Output | AC Input: Voltage: 100 V - 240 V, Current: 10 - 5 A, Frequency: 50 Hz - 60 Hz |
| DC Output: +3.3V @ 20A, +5V @ 20A, +12V @ 62A, -12V @ 0.3A, +5VSB @ 3A | |
| Maximum Power: 100W (3.3V & 5V), 744W (+12V), 3.6W (-12V), 15W (+5VSB) | |
| Total Continuous Power: 750W |
