Sku: ST20000NM007D
Brand: Seagate
Category: Enterprise Drives
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
We Accept

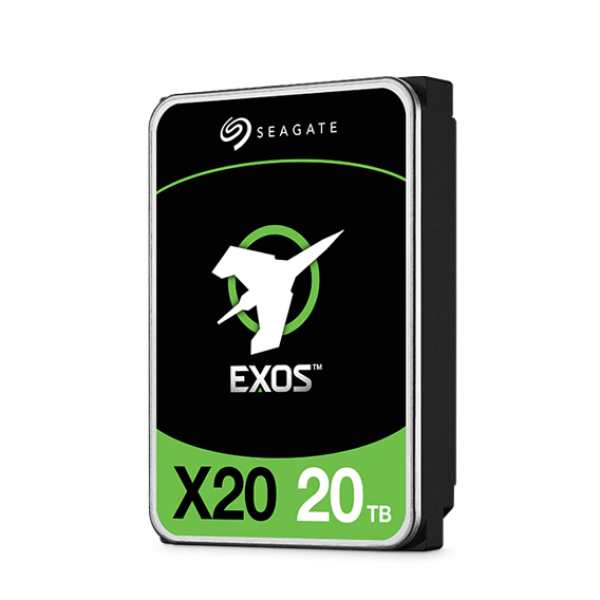

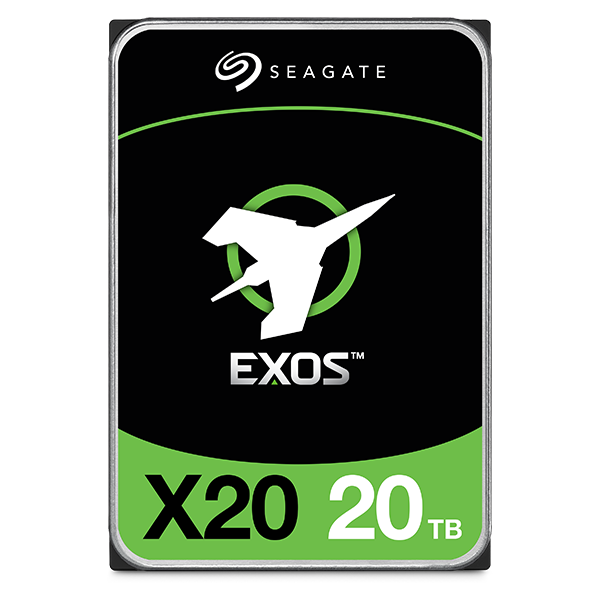

Manufacture # Seagate | Model # ST20000NM007D
Powerful performance with proven technology Seagate’s Exos X20 drives are built off the platform that’s shipped millions globally and deployed in leading cloud service provider solutions making them the most sought after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure, Exos X20 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.
Features:
Overview:
Manufacturer Warranty: 05 Years Limited Warranty
| Capacity | 20 TB |
| Features:- | |
| Helium Sealed-Drive Design | Yes |
| Conventional Magnetic Recording (CMR) | Yes |
| Protection Information (T10 DIF) | No |
| SuperParity | Yes |
| Low Halogen | Yes |
| PowerChoice Idle Power Technology | Yes |
| PowerBalance Power/Performance Technology | Yes |
| Hot-Plug Support | Yes |
| Cache, Multi-segmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| RSA 3072 Firmware Verification (SD&D) | Yes |
| Reliability/Data Integrity:- | |
| Mean Time Between Failures (MTBF, hours) | 2500000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
| Power-On Hours per Year (24×7) | 8760 |
| Non-recoverable Read Errors per Bits Read | 1 sector per 10E15 |
| 512e Sector Size (Bytes per Sector) | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4096 |
| Performance:- | |
| Spindle Speed (RPM) | 7,200 RPM |
| Interface Access Speed (Gb/s) | 6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s, MiB/s) | 285/272 |
| Random Read/Write 4K QD16 WCD (IOPS) | 168/550 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotation Vibration @ 20-1500 Hz (rad/sec²) | 12.5 |
| Power Consumption:- | |
| Idle A (W) Average | 5.4 W |
| Max Operating, Random Read/Write 4K/16Q (W) | 9.4, 6.4 |
| Power Supply Requirements | +12 V and +5 V |
| Environmental:- | |
| Temperature, Operating (°C) | 5°C – 60°C |
| Vibration, Non-operating: 2 to 500 Hz (Grms) | 2.27 |
| Shock, Operating 2 ms (Read/Write) (Gs) | 40 |
| Shock, Non-operating 2 ms (GS) | 200 |
| Physical:- | |
| Height (in/mm, max) | 1.028 in/26.1 mm |
| Width (in/mm, max) | 4.01 in/101.85 mm |
| Depth (in/mm, max) | 5.787 in/147 mm |
| Weight (gm/lb) | 670 g/1.477 lb |
