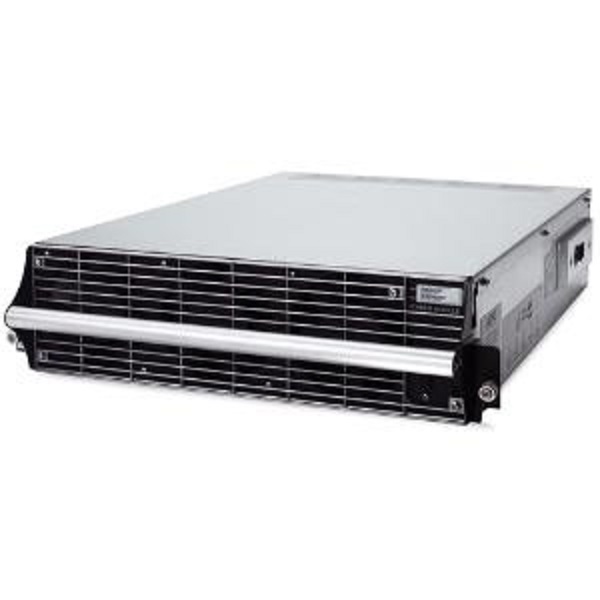

Schneider Symmetra Px Power Module SYPM10K16H

Brand : SCHNEIDER
SKU : SYPM10K16H
Availablity : Pre Order

Free shipping free shipping

  • This is an APC SYPM10K16H Symmetra PX Power Module rated 10/16kW, 400V
  • This SYPM10K16H 16kW high efficiency power module is used
  • The Symmetra PX160kW & PX48kW (both available separately)



A 16kW high efficiency power module for the Symmetra PX160kW & PX48kW. This power module is backward compatible with the SYPM10KH module and will autodetect to deliver only 10kW of power protection if installed in a PX80kW, 40KW or 20kW all-in-one.

Ask a question about this product

$10,140.00

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Product Description

Manufacture # Schneider  | Model # SYPM10K16H



A 16kW high efficiency power module for the Symmetra PX160kW & PX48kW. This power module is backward compatible with the SYPM10KH module and will autodetect to deliver only 10kW of power protection if installed in a PX80kW, 40KW or 20kW all-in-one.



Features:

  • This is an APC SYPM10K16H Symmetra PX Power Module rated 10/16kW, 400V
  • This SYPM10K16H 16kW high efficiency power module is used
  • The Symmetra PX160kW & PX48kW (both available separately)
  • This power module is backward compatible
  • With the SYPM10KH module and will autodetect to deliver only 10kW of power protection if installed.



Overview:

  • Form Factor: Plug-in module
  • UPS Technology: On-line
  • Voltage Provided: AC 230/380/400/415 volt
  • Voltage Provided Margin: ± 2%
  • Frequency Provided: 50/60 hertz
  • UPS Output Waveform: Sinewave



Manufacturer Warranty: 01 Years Limited Warranty



Technical Specifications

Manufacturer American Power Symmetra/Silcon
Brand APC
Product Line APC Symmetra PX
Model Power Module
Subcategory UPS
Product Type UPS
Form Factor Plug-in module
UPS Technology On-line
Voltage Provided AC 230/380/400/415 volt
Voltage Provided Margin ± 2%
Frequency Provided 50/60 hertz
UPS Output Waveform Sinewave
Power Provided 16 kilograms per millimetere
Power Capacity (VA) 16000 volt ampere per kilogram
Voltage Required AC 400 volt
Voltage Required Margin ± 5%
Input Voltage Range AC 340 - 477 V
Frequency Required 50/60 hertz
Input Wiring 3-phase
Input Connector Type Hardwire 5-wire (3PH + N + G)
Input Connector Qty 1
Output Connector Type Hardwire 5-wire (3PH + N + G)
Output Connector Qty 1
Power Output Connectors Details 1 x hardwire 5-wire (3PH + N + G)
UPS Battery No battery
Height (Rack Units) 3
Compliant Standards EN 50091-1, FCC Class A certified, FCC Part 15
Width 19 inch
Depth 27.6 inch
Height 5.2 inch
Weight 62.83 lbs
Shipping Width 23.4 inch
Shipping Depth 27.6 inch
Shipping Height 8.9 inch
Shipping Weight 69.67 lbs
Type 1-year warranty
Service & Support Limited warranty - 1 year
Min Operating Temperature 32 degree Fahrenheit
Max Operating Temperature 104 degree Fahrenheit
Humidity Range Operating 0 - 95%
Sound Emission 63 dBA
Compatible With P/N: SY128K160H, SY128K160H-NB, SY128K160H-PD, SY160K160H, SY160K160H-NB, SY160K160H-PD, SY16K48H-PD, SY32K160H, SY32K160H-NB, SY32K160H-PD, SY32K96H, SY32K96H-NB, SY32K96H-PD, SY48K48H-PD, SY64K160H, SY64K160H-NB, SY64K160H-PD, SY64K96H, SY64K96H-NB, SY64K96H-PD, SY96K160H, SY96K160H-NB, SY96K160H-PD, SY96K96H, SY96K96H-NB, SY96K96H-PD
