Samsung 860 Evo 500GB V-Nand 2.5" 7MM SATA III 6GB/S R/W(Max) 550MB/S/52 SSD Drives (MZ-76E500BW)

SKU : MZ-76E500BW
Brand : Samsung
This product is either discontinued or we cannot get that from suppliers.
Samsung 860 Evo SATA III 6GB/S R/W(Max) 550MB/S/52 SSD Drives (MZ-76E500BW), 500 GB, FF 2.5 inch, Interface SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface, Samsung MJX Controller, TRIM Supported, S.M.A.R.T Supported, Auto Garbage Collection Algorithm, Random Read (4KB, QD32) Up to 98,000/Write Up to 520 MB/s, Reliability (MTBF) 1.5 Million Hours Reliability (MTBF).   The Samsung 860 Evo 500GB 2.5" SSD (MZ-76E500BW) is a reliable, durable, fast-operating SSD that offers numerous high-tech features. These include TurboWrite technology, 3D V-NAND flash memory architecture.
Ask a question about this product
Call Us

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacturer: Samsung | SKU: MZ-76E500BW

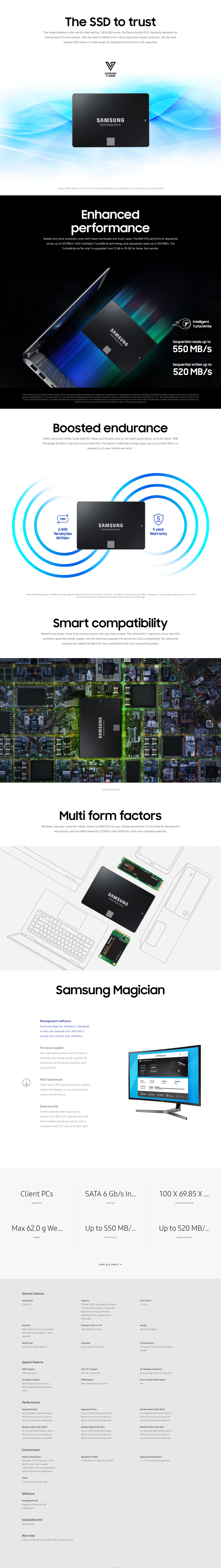

The Samsung 860 Evo 500GB 2.5" SSD (MZ-76E500BW) is a reliable, durable, fast-operating SSD that offers numerous high-tech features. These include TurboWrite technology, 3D V-NAND flash memory architecture, Rapid Mode data processing, advanced encryption and a Dynamic Thermal Guard. In addition, the Samsung 860 Evo 500GB 2.5" SSD is backed by a five-year limited warranty, for ultimate peace of mind.



Features:

  • Samsung 860 Evo SATA III 6GB/S R/W(Max) 550MB/S/52 SSD Drives (MZ-76E500BW)
  • Samsung Magician software is designed to help you manage
  • SSD with a simple and intuitive user interface
  • Get notifications when new firmware is released, and easily install
  • Updates for enhanced performance, stability, and compatibility
  • Check your SSD's sequential and random read/write speeds, so you can maintain superb performance
  • Protect data by selecting security options
  • The 860 EVO supports AES 256-bit hardware-based encryption and is compliant with TCG Opal and IEEE 1667.



Overview:

  • Form Factor: 2.5 inch
  • Interface: SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
  • NAND Type: Samsung V-NAND 3bit MLC
  • Controller: Samsung MJX Controller





Manufacturer Warranty: 05 Years Limited Warranty



Technical Specifications

Application Client PCs
Capacity 500 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor 2.5 inch
Interface SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
Dimension (WxHxD) 100 X 69.85 X 6.8 (mm)
Weight Max 50.0g Weight
NAND Type Samsung V-NAND 3bit MLC
Controller Samsung MJX Controller
Cache Memory Samsung 512 MB Low Power DDR4 SDRAM
TRIM Support TRIM Supported
S.M.A.R.T Support S.M.A.R.T Supported
GC (Garbage Collection) Auto Garbage Collection Algorithm
Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support World Wide Name supported
Device Sleep Mode Support Yes
Sequential Read Up to 550 MB/s Sequential Read
Sequential Write Up to 520 MB/s Sequential Write
Random Read (4KB, QD32) Up to 98,000 IOPS Random Read
Random Write (4KB, QD32) Up to 90,000 IOPS Random Write
Random Read (4KB, QD1) Up to 10,000 IOPS Random Read
Random Write (4KB, QD1) Up to 42,000 IOPS Random Write
Power Consumption *Average: 2.5 W *Maximum: 4.0 W (Burst mode)
Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
Operating Temperature 0 - 70 ? Operating Temperature
Shock 1,500 G & 0.5 ms (Half sine)
