Sku: TS-1232PXU-RP-4G
Brand: QNAP
Category: Network Storage
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find

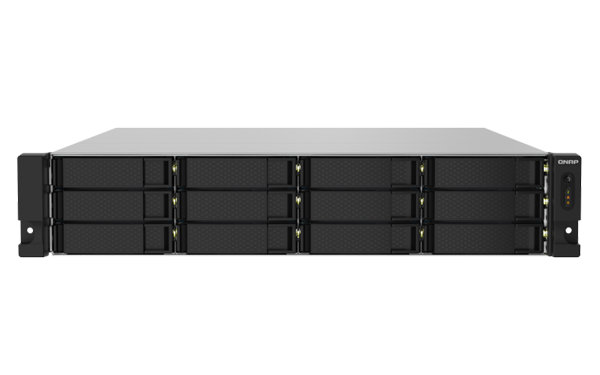

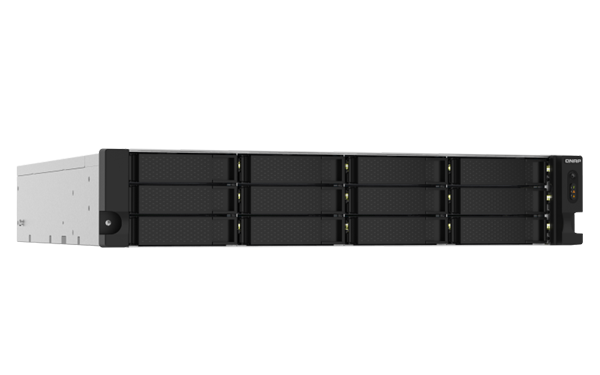

QNAP TS-1232PXU-RP-4G Rackmount 12-Bay Diskless NAS Alpine Quad-Core 4GB RAM, CPU AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 quad-core 1.7GHz, 4 GB UDIMM DDR4 (1 x 4 GB), 512 MB (Dual boot OS protection), 12 x 3.5-inch SATA 6Gb/s, 3Gb/s, 2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (also support 10M), 10 Gigabit Ethernet Port 2 x 10GbE SFP+.
With 10GbE SFP+ and 2.5GbE network ports, the TS-1232PXU-RP delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing.
We Accept
Manufacture # Qnap | Model # TS-1232PXU-RP-4G
With 10GbE SFP+ and 2.5GbE network ports, the TS-1232PXU-RP delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity.
The TS-1232PXU-RP supports file backup and synchronization, secure snapshot protection, and Google G Suite™ and Microsoft 365® enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a new hybrid cloud storage solution has never been easier. The TS-1232PXU-RP also features a redundant power supply to ensure uninterrupted operation of mission-critical applications.
The TS-1232PXU-RP is powered by an Annapurna Labs Alpine AL-324 ARM® Cortex®-A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance.
Features:
Overview:
Manufacturer Warranty: 03 Years Limited Warranty
| CPU | AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 quad-core 1.7GHz processor |
| CPU Architecture | 64-bit ARM |
| System Memory | 4 GB UDIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x Long-DIMM DDR4 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| M.2 SSD Slot | Optional via a PCIe adapter |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (also support 10M) |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ |
| PCIe Slot | 1 Slot 1: PCIe Gen 2 x2 |
| USB 3.2 Gen 1 port | 4 |
| Form Factor | 2U Rackmount |
| LED Indicators | HDD 1-12, Status, LAN, Storage expansion |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 3.5 × 18.98 × 21.02 inch |
| Weight (Net) | 25 lbs |
| Weight (Gross) | 38.07 lbs |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27?C (80.6?F) |
| Power Supply Unit | 250W (x2) PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical | 83.57 W |
| Fan | 2 x 70mm, 12VDC |
| Sound Level | 32.2 db(A) |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) | 700 |
