Sku: PSCERT3000L
Brand: PowerShield
Category: UPS
Shipping Information
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
Capacity: 3000VA/2700W, High Line Transfer: 300VAC ± 5 %, High Line Comeback: 290VAC ± 5 %, Frequency: Range 40Hz–70Hz, Phase: Single phase with ground, 02 Years Limited Warranty, PSCERT3000L.
100% Guarantee Safe Checkout
Description

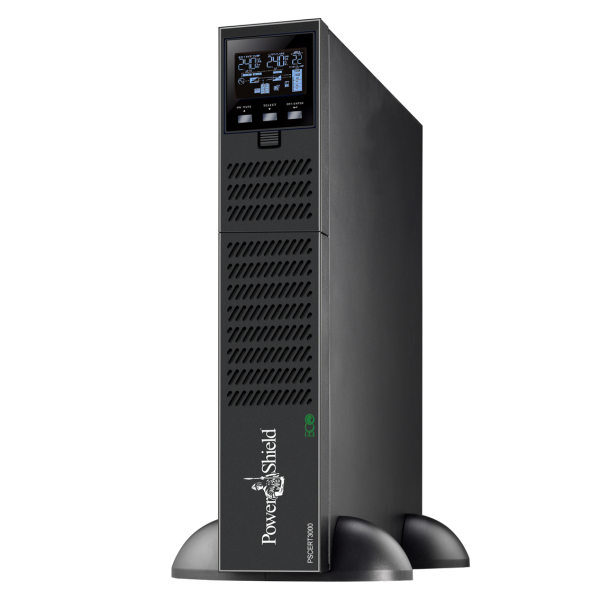

Manufacture # PowerShield | Model # PSCERT3000L
The Centurion RT features true online double conversion. As our highest single phase power density UPS, this sophisticated range will provide the most comprehensive protection for mission critical devices such as sensitive networks, computers, servers, telecom applications, as well as industrial applications. Meticulously developed by PowerShield engineers to be a world leading technology UPS, the Centurion RT addresses absolutely all requirements and features as has been demanded by the sophisticated Australian power consumer and hence stands in a class of its own, as a world leading UPS technology.
Features:
Overview:
Manufacturer Warranty: 02 Years Limited Warranty
Capacity | 3000VA/2700W |
Topology | True online double-conversion, Pure Sine Wave |
Input Voltage Range:- | |
Low Line Transfer | 160VAC / 140VAC / 120 / 110VAC ± 5 % (based on load percentage 100%–80% / 80%–70% / 70%–60% / 60%–0) |
Low Line Comeback | 175VAC / 155VAC / 135VAC / 125VAC ± 5 % |
High Line Transfer | 300VAC ± 5 % |
High Line Comeback | 290VAC ± 5 % |
Frequency | Range 40Hz–70Hz |
Phase | Single phase with ground |
Power Factor Correction | 0.99 @ nominal voltage (100% load) |
Output :- | |
Output Power Factor | 0.9 |
Output Voltage (AC Mode) | 240VAC (Selectable 200/208/220/230/240VAC) |
Voltage Regulation (Batt. Mode) | ± 1% |
Frequency Range (Batt. Mode) | 50Hz or 60Hz ±1Hz |
Current Crest Ratio | 3:1 (max.) |
AC Mode to Batt. Mode | Zero |
Inverter to Bypass | 4ms (Typical) |
Waveform (Batt. Mode) | Pure Sine Wave |
IEC Outlets | 10A, C13 x 5 16A, C19 x 1 |
Australian Sockets | 2 |
Efficiency :- | |
ECO Mode (Advanced) | 97% |
Battery Mode | 87% |
Battery :- | |
Battery Number (12 V*9AH) | x 6 |
Typical Recharge Time | 4 hours recover to 90% capacity (for standard model only) |
Charging Current (max.) | Standard Models – 1.5Amp. Long Run Models – 1Amp / 2Amp / 4Amp / 6Amp selectable (factory default is 6Amp) |
Protection :- | |
Full Protection | Overload, discharge, thermal, short circuit and overcharge protection |
Surge Protection | 984 Joules / 22000 Amps |
Communications And Management :- | |
Interface | USB or RS232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry con-tact |
Software | PowerShield NetGuard software – supports Windows, Linux, Unix and Mac based operating systems |
HID | Supports Windows, Apple, Linux, NAS and various industrial controllers |
LCD Display/Alarm | UPS Status, Load & Battery Level, Input/Output Voltage, Batt. Time Remaining and Fault Indicators |
Audible Alarm | Battery Mode, Bypass Mode, Low Battery (Batt. Mode), Fault, Overload |
Operating Environment :- | |
Temperature | 0–40°C |
Humidity | 20–90% (RH Non-condensing) |
Noise Level | < 50dBA @ 1 Meter |
Physical :- | |
Dimensions (D x W x H) mm | 600 x 438 x 88 |
Weight | 11.6 Kg |
