Manufacture: Panasonic | Model: PT-FRQ60W

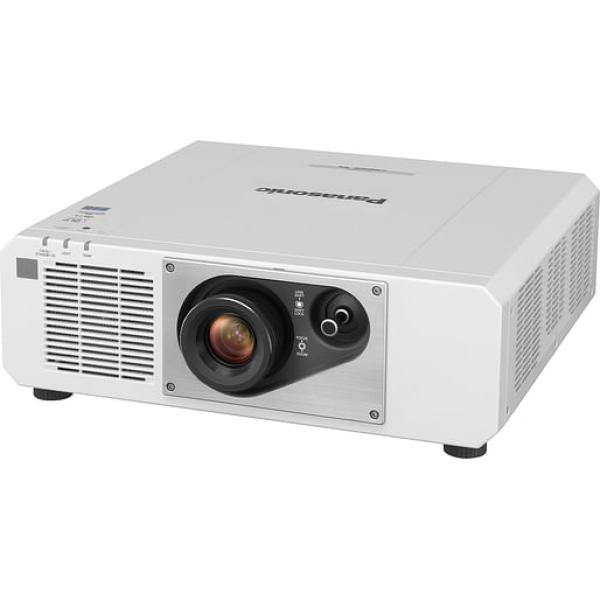

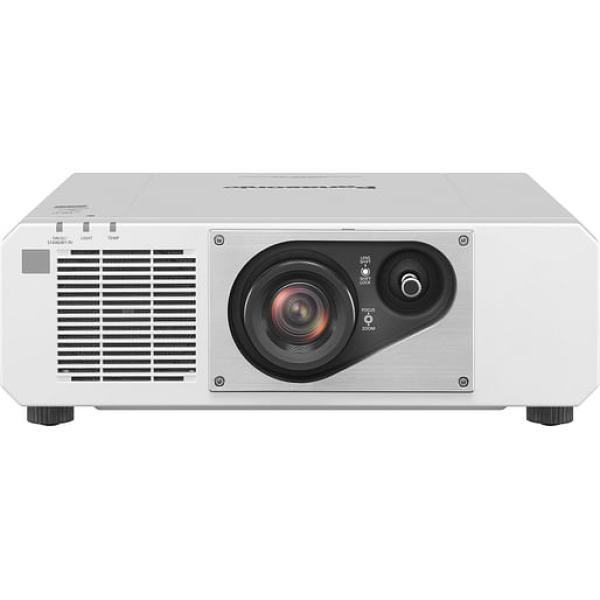

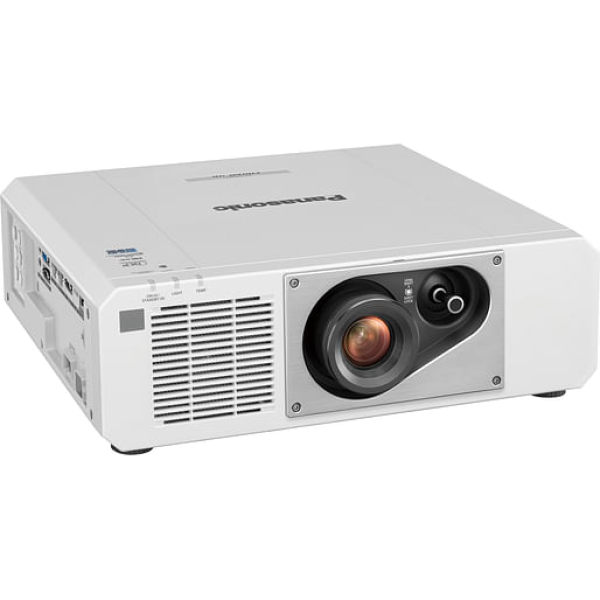

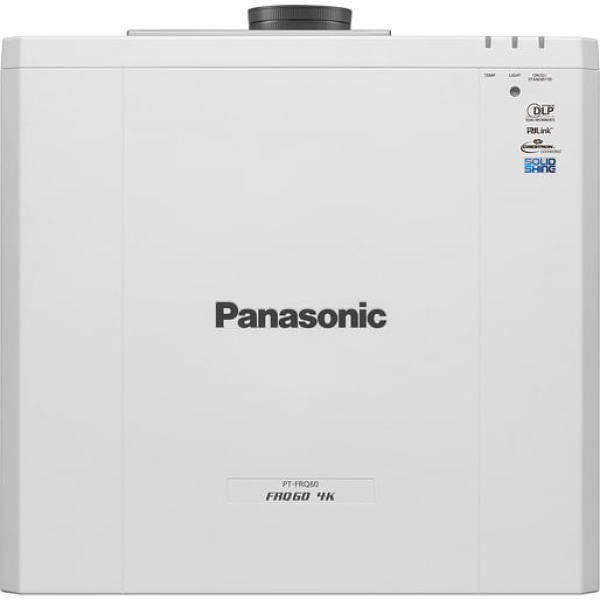

The Panasonic 1-Chip DLP™ projector offers impressive 4K resolution (3840 x 2160) with Quad Pixel Drive, providing exceptional image clarity. With a light output of 6,000 lumens and a contrast ratio of 20,000:1, it delivers bright and dynamic visuals. The projector supports flexible installation with a 2.0x manual zoom lens and a vertical lens shift of +71% to -48%, allowing for optimal alignment. The projector also features HDMI inputs, network connectivity via LAN, and supports multiple control functions, including Crestron and PJLink. With a quiet operating noise of 31 dB in Quiet mode and a long-lasting light source of 20,000 hours, it's perfect for various professional settings.
| Projector Type | 1-Chip DLP™ projector |
| Panel Size | 16.5 mm (0.65 in) diagonal (16:9 aspect ratio) |
| Display Method | DLP™ chip x 1, DLP™ projection system |
| Number of Pixels | 1920 x 1080 pixels (If a signal other than 120 Hz/240 Hz is input, it cannot be displayed at this resolution.) |
| Light Source | Laser diodes |
| Light Output | 6,000 lm / 6,200 lm (Center) |
| Time Until Light Output Declines to 50% | 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) |
| Resolution | 4K (3840 x 2160 pixels) (With Quad Pixel Drive) |
| Contrast Ratio | 20,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. HDMI signal input) |
| Screen Size (Diagonal) | 1.02–7.62 m (40–300 in), 16:9 aspect ratio |
| Center-to-Corner Zone Ratio | 90% |
| Lens | 2.0x manual zoom (throw ratio: 1.46–2.93:1), manual focus, F 2.0–3.4, f 21.5–43.0 mm |
| Lens Shift (Vertical) | +71 %, -48 % (manual) |
| Lens Shift (Horizontal) | +34 %, -27 % (manual) |
| Keystone Correction Range | Vertical: ±40 °, Horizontal: ±20 ° |
| HDMI IN 1/2 | HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input, CEC supported) |
| COMPUTER IN | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| MONITOR OUT | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| AUDIO IN/OUT | M3 stereo mini-jack x 2 |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| DIGITAL LINK/LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input, Extron XTP®) |
| LAN | RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net) |
| USB | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module, for USB memory, and for power supply (DC 5 V, maximum 2 A) |
| Supported Internet Protocol Versions | IPv4, IPv6 |
| Power Supply | AC 100–240 V, 50/60 Hz; AC 110 V, 60 Hz (Taiwan) |
| Power Consumption | 505 W (5.5–2.4 A) (525 VA) |
| Operation Noise | 36 dB (NORMAL/ECO) / 31 dB (QUIET) |
| Dimensions (W x H x D) | 498 x 168 x 492 mm (19 5/8? x 6 5/8? x 19 3/8?) |
| Weight | Approx. 16.4 kg (36.2 lbs) |
| Operating Environment | Operating temperature: 0–45 °C (32–113 °F), operating humidity: 10–80 % (no condensation) |
| Applicable Software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Projector Network Setup Software |
| Control Function via LAN | Crestron Connected™ V2, Crestron XiO Cloud™12, Art-Net DMX, AMX® DD, and PJLink™ (Class 2) |
