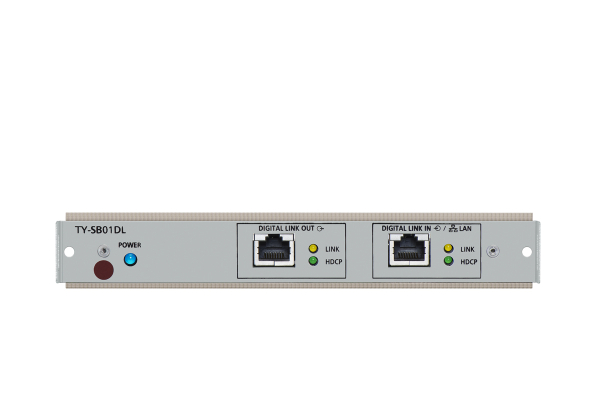

Panasonic Option Interface Digital Link Terminal Board TY-SB01DL

Sku: TY-SB01DL

Availability: Out of Stock

Brand: Panasonic

Category: Projectors

$839.30

High-performance digital link solution with RJ45 LAN compatibility, supporting resolutions up to 4K at 60Hz, and a compact design. Includes LAN cable and operating instructions for seamless integration.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Panasonic | Model: TY-SB01DL



The Digital Link device offers seamless connectivity for digital signals, supporting both motion and still pictures at a wide range of resolutions. Designed for long reach capabilities, it ensures high-quality performance for professional environments, whether you're connecting displays or projectors.



Key Features:



  • Slot Compatibility: Intel® SDM Specification
  • Digital Link In / LAN: RJ45 x 1 (For network and DIGITAL LINK connection), 100BASE-TX, Long reach mode, Compatible with HDCP2.2
  • Digital Link Out: RJ45 x 1 (For DIGITAL LINK connection), Long reach mode, Compatible with HDCP2.2
  • Dimensions: 195 x 25 x 123.2 mm (7.68" x 0.99" x 4.85")
  • Weight: 0.6 lb (280 g)
  • Carton Size: 319 x 56 x 316 mm (12.6" x 2.3" x 12.5")
  • Gross Weight: 1.7 lb (750 g)
  • Includes: Operating Instructions x1
  • Cable: LAN cable (STP cable of CAT5e or higher)
  • Motion Picture Resolution Support: From 480/60p, 576/50p to 4096 x 2160
  • Still Picture Resolution Support: From 640 x 480 to 3840 x 2400 (Non-interlace)
  • Dot Clock Frequency: 25 MHz to 297 MHz
  • Image Signal Compatibility: Dependent on the performance of connected displays and projectors
  • Long Reach Mode (1080/60p, 4:4:4 24bit or lower resolution): 150 m
  • 100 m Reach: 1080/60p (4:4:4 36bit) or lower resolution
  • 50 m Reach: 4K/60p (4:2:0) or lower resolution

Slot Compatibility Intel® SDM specification
DIGITAL LINK IN / LAN RJ45 x 1 (For network connection, For DIGITAL LINK connection)
100BASE-TX, Long reach mode, Compatible with HDCP2.2
DIGITAL LINK OUT RJ45 x 1 (For DIGITAL LINK connection)
Long reach mode, Compatible with HDCP2.2
Dimensions (W x H x D) W 7.68" x H 0.99" x D 4.85" (195 x 25 x 123.2 mm)
Weight 0.6 lb (280 g)
Carton Size (W x H x D) W 12.6" x H 2.3" x D 12.5" (319 x 56 x 316 mm)
Gross Weight 1.7 lb (750 g)
Accessories Operating Instructions x1
Cable LAN cable (STP cable of CAT5e or higher)
Resolution (Motion Picture-related signal) 480/60p, 576/50p to 4096 x 2160
Resolution (Still Picture-related signal) 640 x 480 to 3840 x 2400 (Non-interlace)
Dot Clock Frequency 25 MHz to 297 MHz
Image Signals * Image signals that can be displayed by displays and projectors depend on the performance of the displays and projectors.
150 m (Long reach mode, 1080/60p (4:4:4 24bit) or lower resolution)
100 m (1080/60p (4:4:4 36bit) or lower resolution)
50 m (4K/60p (4:2:0) or lower resolution)
