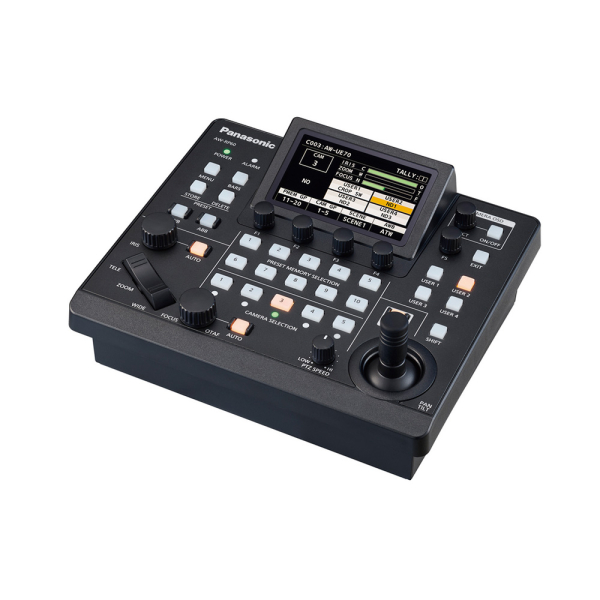

Panasonic AW-RP60 Remote Camera Controller

Sku: AW-RP60GJ

Availability: Out of Stock

Brand: Panasonic

Category: IP Cameras

$4,240.50

This advanced camera controller offers PoE power (42V to 57V DC) and features multiple connection options including LAN, RS-422, and TALLY/GPIO. It supports up to 200 IP cameras and allows control of 5 cameras directly from the LCD screen, with 40 camera groups and 100 preset memories. It operates efficiently within a temperature range of 0°C to 40°C and supports a variety of camera control signals for seamless operation.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Panasonic | Model: AW-RP60GJ



The professional camera controller is a high-performance remote control solution designed for managing multiple cameras in broadcast, live production, and corporate environments. Supporting up to 200 cameras over IP and 5 cameras via RS-422, this controller offers seamless integration into complex video production workflows. It features five camera selection buttons, with additional camera control accessible via the LCD interface. The unit is powered via PoE (42V to 57V DC) or a 12V DC input using an XLR 4-pin connector, ensuring flexibility in installation. With a lightweight yet durable build weighing 1.5 kg (3.31 lbs), it is suitable for professional production environments.

Equipped with multiple connectivity options, including LAN (IP and serial control), RS-422, and GPIO/TALLY input and output, this controller allows for precise and responsive camera control. It supports up to 40 camera groups, with five units per group, making it highly efficient for large-scale productions. The preset memory function stores up to 100 configurations, ensuring quick access to frequently used camera positions and settings. Designed to operate in ambient temperatures ranging from 0°C to 40°C and storage conditions from -20°C to 50°C, this unit is built for reliability and long-term use in diverse environments.



Key Features:



  • Supports up to 200 cameras over IP and 5 cameras via RS-422
  • 5 direct camera selection buttons, expandable to 200 via LCD
  • PoE power supply (42V to 57V DC) or 12V DC via XLR 4-pin input
  • RS-422 serial control with TALLY OUT and remote camera control signals
  • LAN connectivity (10BASE-T/100BASE-TX) with up to 100m cable length
  • GPIO/TALLY interface with 25-pin D-sub connector for trigger and status operations
  • Preset memory function with storage for up to 100 camera configurations
  • Supports 40 camera groups with five units per group
  • Compact and lightweight design (1.5 kg) for professional use
  • Operating temperature range: 0°C to 40°C with humidity tolerance of 20% to 90%

PoE PoE, 42 V to 57 V DC
Current Consumption 0.9 A (XLR connector input), 0.3 A (PoE power supply)
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity 20 % to 90 % (no condensation)
Storage Temperature -20 °C to 50 °C (-4 °F to 122 °F)
Weight 1.5 kg (3.31 lbs)
DC IN DC 12 V IN, XLR 4?pin
LAN?IP CONT? 10BASE?T/100BASE-TX, PoE input
Connecting cable: LAN cable, max. 100 m (328 ft)
• When connecting via a switching hub: Straight cable (category 5e), STP (Shielded Twisted Pair) recommended
• When connecting directly: Crossover cable (category 5e), STP (Shielded Twisted Pair) recommended
• REMOTE: Available only for LAN (RJ45) control
LAN?SERIAL CONT? RS?422 (control signals for remote cameras), TALLY OUT
Connecting cable: Straight cable (category 5e), max. 1000 m (3280 ft)
TALLY OUT: Open collector output (negative logic)
Maximum voltage resistance: DC 24 V, Maximum current: 50 mA
TALLY / GPIO 1 D-sub 25-pin, female, inch thread
TALLY IN: Contact input (Status operation)
GPIO IN: Contact input (Trigger operation)
GPIO OUT: Open collector output (negative logic)
Maximum voltage resistance: DC 24 V, Maximum current: 10 mA
No. of Connectable Cameras 200 (IP), 5 (RS422)
No. of Camera Selection Buttons 5 (6 to 200 controlled from the LCD)
No. of Camera Groups 40 (5 units/group)
Preset Memory 100
