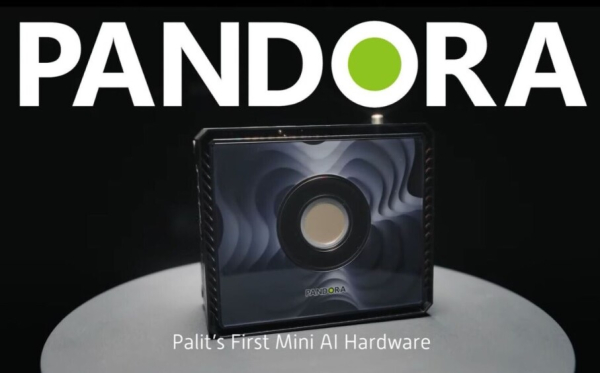

Palit Pandora Nvidia Jetson Orin Nx Super 16gb Ai

Sku: A002FVP1

Availability: In Stock

Brand: PALIT

Category: nVidia

$1,901.90

The NVIDIA Jetson Orin NX 16GB SUPER model A002FVP1 features an 8-core Arm Cortex-A78AE CPU and 1024 CUDA cores on an NVIDIA Ampere architecture GPU with 32 Tensor cores, delivering impressive AI performance of 157 TOPS (sparse) and 78 TOPS (dense). With 16GB of LPDDR5 system memory and 102.4 GB/s bandwidth, this compact module is built for high-performance AI and edge computing tasks. It offers extensive connectivity options, including USB, M.2 expansion slots, Ethernet, and HDMI 2.0.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Palit | Model: A002FVP1



The NVIDIA Jetson Orin NX 16GB SUPER is a high-performance AI computing platform designed for edge applications requiring powerful processing and efficiency. Powered by an 8-core Arm Cortex-A78AE CPU and a 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, it delivers AI performance of up to 157 TOPS (sparse). With 16GB of LPDDR5 memory offering 102.4 GB/s bandwidth and multiple M.2 expansion slots, this system is optimized for AI workloads, robotics, and embedded applications. It supports external NVMe storage, multiple high-speed USB and Ethernet ports, and an advanced video processing engine for 4K encoding and decoding. Running on Ubuntu 22.04 with JetPack SDK support, the system provides robust software compatibility. Designed for industrial use, it features a compact, lightweight build and operates efficiently within a wide temperature range.



Key Features:



  • 8-Core Arm Cortex-A78AE CPU with 1024-Core Ampere GPU
  • AI Performance up to 157 TOPS for Deep Learning
  • 16GB LPDDR5 Memory with 102.4 GB/s Bandwidth
  • Supports External NVMe Storage for High-Speed Data Access
  • Multiple USB 3.2, Ethernet, and MIPI CSI-2 Interfaces
  • Advanced Video Encode/Decode with AV1, H.265, and H.264
  • JetPack 6.1.1 SDK and Linux for Tegra (L4T) R36.4 Support
  • Wide Operating Temperature Range: 0~60°C with Airflow

Model Number A002FVP1
CPU NVIDIA Jetson Orin NX 16GB SUPER
8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
2MB L2 + 4MB L3
GPU 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
AI Performance 157 / 78 TOPS (Sparse / Dense)
System Memory 16GB 128-bit LPDDR5, total 102.4 GB/s bandwidth
Dimension of Main Board 115mm x 115mm
Dimension of System 145mm x 123mm x 66mm
Weight 470g
Storage Supports External NVMe
Display Interface 1 x HDMI2.0
Ethernet 2 x RJ45 for 10/100/1000Mbps Ethernet DHCP Client
USB 2 x USB3.2 Gen2 (Type-A)
1 x USB3.2 Gen2 (Type-C) (OTG)
2 x USB2.0 (Type-A)
Expansion Slot 1×M.2 2280 M Key PCIe Gen4×2 Slot (with Pre-Installed 128GB SSD)
1 x M.2 2280/3080 M Key PCIe Gen4×4 Slot, Support SSD or Video Capture Cards
1 x M.2 2230 E Key PCIe Gen4×1+USB2.0 Slot, Support Wi-Fi Module
1 x M.2 3042/3052 B Key USB3.2 Gen1 Slot, Support 5G/4G Wireless Module
MIPI 8-Lane MIPI CSI-2 (D-PHY 2.1, Support MIPI Camera, Capture Card)
Audio 1 x Line In (3.5mm Phone Jack)
1 x Line Out (3.5mm Phone Jack)
Peripheral Communication 40 Pin Header:
- 1 x I2S
- 2 x I2C
- 2 x SPI
- 1 x UART
- 3 x GPIO
14 Pin Header:
- 1 x CAN Bus
- 1 x UART with CTS/RTS
- 1 x UART for Debug
Misc. Features Firmware Upgradable TPM Module (Optional)
Video Encode AV1 (UHP): 1 x 4K 60 | 3 x 4K 30 | 6 x 1080p 60 | 12 x 1080p 30
H.265 (UHP): 1 x 4K 60 | 3 x 4K 30 | 6 x 1080p 60 | 12 x 1080p 30
H.264 (UHP): 1 x 4K 60 | 2 x 4K 30 | 5 x 1080p 60 | 11 x 1080p 30
Video Decode AV1 (Main Profile): 1 x 8K 30 | 2 x 4K 60 | 4 x 4K 30 | 10 x 1080p 60 | 20 x 1080p 30
H.265 (Main, Main10): 1 x 8K 30 | 2 x 4K 60 | 4 x 4K 30 | 9 x 1080p 60 | 18 x 1080p 30
H.264 (Baseline, Main, High): 1 x 4K 60 | 2 x 4K 30 | 5 x 1080p 60 | 11 x 1080p 30
VP9 (Profile 0, Profile 2): 1 x 4K 60 | 3 x 4K 30 | 7 x 1080p 60 | 15 x 1080p 30
OS Ubuntu: 22.04
Kernel 5.15.148-tegra or Higher
BSP Linux for Tegra (L4T) R36.4 or Higher
SDK JetPack 6.1.1 or Higher
Power Supply DC input: 12~36V
Power Consumption 8GB Max: 42W / 16GB Max: 49.2W
Operating Temperature Standard Version: 0~60°C with Airflow
Storage Temperature -20~80°C
