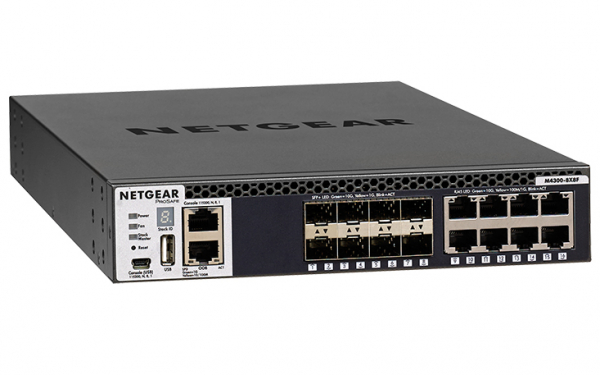

NETGEAR M4300-8x8f 16-port Fully Managed XSM4316S-100AJS

Sku: XSM4316S-100AJS

Brand: Netgear

Category: Switches

$4,166.80

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

NETGEAR XSM4316S-100AJS M4300-8x8f 16-port Fully Managed, Layer 3 Switch, Power 49 Watts, 8 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds), 8 x SFP+ (1G and 10G speeds), Power Supply.



The NetGear XSM4316S-100AJS M4300-8X8F 16-Port Fully Managed M4300 Stackable Switch Series that delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # NetGear | Model # XSM4316S-100AJS



The NetGear XSM4316S-100AJS M4300-8X8F 16-Port Fully Managed M4300 Stackable Switch Series that delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. The non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. With dual redundant, modular power supplies equipping full-width models to contribute to business continuity management. It has a Layer 3 feature set that includes static, dynamic, and policy-based routing - as standard. This stackable switch is perfect for wireless access, unified communications, and IP video and is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.



Features:

  • Cost-effective 1G access layer in campus LAN networks, and high performance 10G distribution layer for midsize organizations networks
  • Advanced Layer 3 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
  • Industry standard SNMP, RMON, MIB, LLDP, AAA, sFlow and RSPAN remote mirroring implementation
  • Advanced IPv4/IPv6 security implementation including malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation.



Overview:

  • Power Consumption (Max): 49 Watts
  • 10G RJ45 Ports: 8 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)
  • 10G Fiber SFP+ Ports: 8 x SFP+ (1G and 10G speeds)



Manufacturer Warranty: Lifetime Warranty

Brand NETGEAR
Model XSM4316S-100AJS
Product Type Layer 3 Switch
Acoustics 36.9dB @ 25C (77F)
Power Consumption (Max) 49 Watts
10G RJ45 Ports 8 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)
10G Fiber SFP+ Ports 8 x SFP+ (1G and 10G speeds)
Feature Set Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)
Management Ports 1G Ethernet service port for out-of-band management (OOB, RJ45)
RS232 straight-through serial RJ45 for local management console
Mini-USB port for local management console
USB port for local storage, logs, configuration or image files
Form Factor Half-Width enabling one or two 10G switches in a single rack space for redundant top-of-rack
1 modular PSU
Weight (Approximate) 3.32 kg
Power Source Power Supply
Compatible Rack Unit 1U
