NETGEAR M4300-24x24f 48-port Fully Managed XSM4348S-100AJS

NETGEAR
Availablity Pre Order
$7,307.00

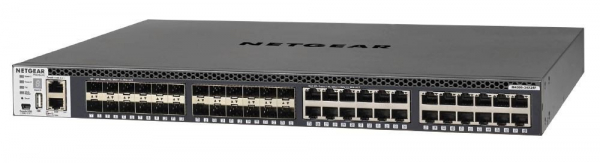

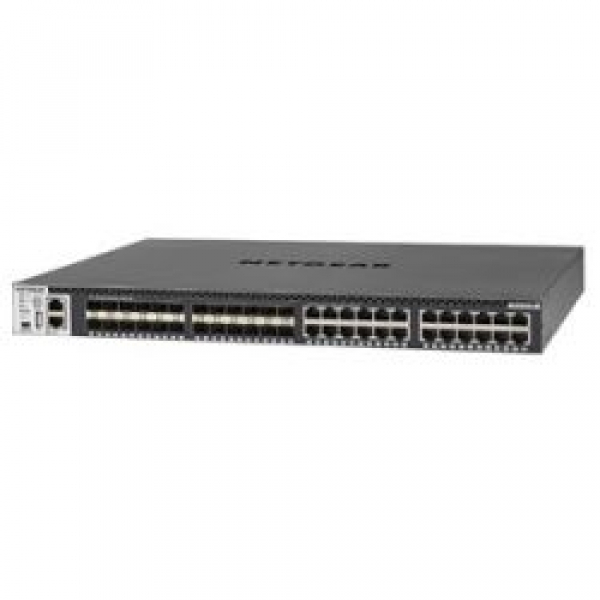

M4300-24X24F 48-PORT FULLY MANAGED STACKABLE LAYER 3 SWITCH (48 X 10G PORTS: 24 X 10GBASE-T & 24 X SFP+)
SKU: XSM4348S-100AJS

Free shipping within 2 business days Icon

Ask a question about this product

Product Description

Netgear M4300-24x24F 48-Port Fully Managed Stackable (XSM4348S-100AJS) The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies.

Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing - as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

FEATURES :

  • Cost effective 1G access layer in campus LAN networks, and high performance 10G distribution layer for midsize organizations networks
  • Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
  • Innovative mixed "Spine and Leaf", 1G and 10G stacking with nonstop forwarding and hitless failover redundancy
  • Low acoustics, half-width 16-port and 24-port 10G models can be paired in a single rack space for redundant Top of Rack
  • Up to 384 (Gigabit) ports, or 384 (10 Gigabit) ports, or a combination of both in a single logical switch
  • PoE+ (30 watts per port) with hot swap, redundant power supplies and full provisioning
  • 48-port 10G models ultra-low latency and scalable table size with 128K MAC, 8K ARP/NDP, 4K VLANs, 12K routes
  • Mixed Stack of 1G and 10G models provides 16K MAC, 2K ARP/NDP, 4K VLANs and 512 routes
  • SDN-Ready OpenFlow 1.3 support for maximum investment protection

SPECIFICATIONS :

Manufacturer Netgear, Inc
Manufacturer Part Number XSM4348S-100AJS
Brand Name Netgear
Product Series M4300
Product Model M4300-24X24F
Product Name 48x10G Stackable Managed Switch with 24x10GBASE-T and 24xSFP+
Product Type Layer 3 Switch
Total Number of Network Ports 24
Uplink Port No
Modular Yes
Stack Port Yes
Port/Expansion Slot Details 24 x 10 Gigabit Ethernet Network
24 x 10 Gigabit Ethernet Expansion Slot
Media Type Supported Twisted Pair
Optical Fiber
Ethernet Technology 10 Gigabit Ethernet
Gigabit Ethernet
Network Technology 10GBase-T
10GBase-SR
10GBase-LR
1000Base-SX
1000Base-LX
10GBase-LRM
Number of Total Expansion Slots 24
Expansion Slot Type SFP+
Shared SFP Slot No
Number of SFP+ Slots 24
Layer Supported 3
Manageable Yes
Power Source Power Supply
Redundant Power Supply Supported Yes
Compatible Rack Unit 1U
Form Factor Desktop
Rack-mountable
Height 43.9 mm
Width 439.9 mm
Depth 344.9 mm
Weight (Approximate) 6.11 kg
