Sku: GS524PP-100AJS
Brand: Netgear
Category: Switches
Shipping Information
Availability: In Stock
Ships in 1-3 days or pickup from Seven Hills in 3-5 days.
Shipping Calculator
Find
Form Factor: Desktop/ Rackmount, PoE Max Power Per Port: 30W, Total PoE Power Budget: 300W, Bandwidth (Non-Blocking): 48 Gbps, Jumbo Frame Support: 9,216 bytes, Lifetime Limited Warranty, GS524PP-100AJS.
100% Guarantee Safe Checkout
Description
Manufacture # Netgear | Model # GS524PP-100AJS

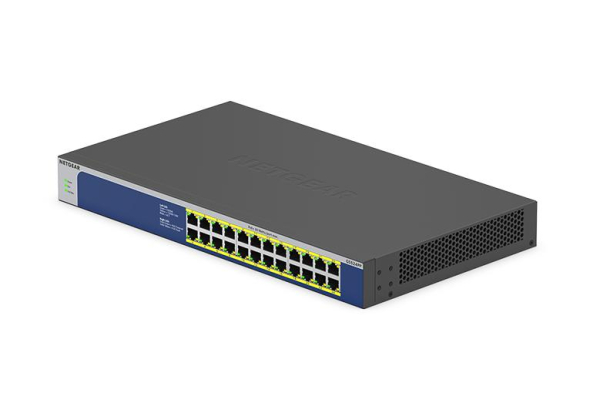

The GS524PP 24-port High-power PoE+ Gigabit Ethernet Unmanaged Switch join the NETGEAR Unmanaged switch family, adding full 16 and 24 port PoE+ support for flexible deployment of modern high-power PoE devices. Companies can now deploy denser PoE+ devices connected to a single switch instead of multiples with a total PoE power budget of 260W (GS516PP) and 300W (GS524PP). The quiet design makes he GS516PP and GS524PP ideal for any home or business environment.
Features:
Overview:
Manufacturer Warranty: Lifetime Limited Warranty
| Technical Specifications :- | |
| 10/100/1000Mbps Ports (Auto Uplink) | 24 |
| Enclosure | Metal |
| Connector Type | Metal |
| Form Factor | Desktop/ Rackmount |
| Power On/Off Switch | N/A |
| PoE Configuration :- | |
| 802.3at PoE+ Ports | 24 |
| 802.3bt PoE++ Type 3 Ports | 0 |
| Pre-802.3bt compatible | N/A |
| PoE Max Power Per Port | 30W |
| Total PoE Power Budget | 300W |
| Performance Specification :- | |
| Bandwidth (Non-Blocking) | 48 Gbps |
| Packet Buffer Memory (Dynamically shared across only used ports) | 192 KB |
| Jumbo Frame Support | 9,216 bytes |
| Queue WRR (Weighted Round Robin) Ratio | 1:2:4:8 |
| Forwarding Rate (using 64-byte packets) - 1000Mbps Port | 1,448,000 pps |
| Latency (using 64-byte packets) - 1000Mbps Port (average) | < 12 µsec |
| MAC Address Table Size | 8K |
| Auto MDI/MDI-X Cable Detection | Yes |
| Auto-sensing Half/Full Duplex Switched Ports | Yes |
| Mean Time Between Failures (MTBF) @ 25° C | 1457063 hrs |
| LEDs :- | |
| Per port | Speed, Link/Activity, PoE |
| Per device | Power, PoE Max, Fan |
| Quality of Service (QoS) :- | |
| 802.1P Based (CoS) Supported | Yes |
| Honors DSCP (DiffServ) Tags | Yes |
| Power Consumption :- | |
| DC Input/Power In | Internal (100–240V ~ 50/60 Hz, 6A) |
| Power Consumption (Max and Standby) | 359.5W / 12.9W |
| Heat Dissipation (Max and Standby) (BTU/Hr) | 1227.333BTU/ 44.0404BTU |
| Energy Efficiency :- | |
| Energy Efficient Ethernet (EEE) IEEE 802.3az compliant | Yes |
| Auto Power Down | Yes |
| Short Cable Detection | Yes |
| Fan/Fanless | 2 Fan |
| Power Supply | Internal 100-240V 50/60Hz 6A |
| Environmental Specifications :- | |
| Operating Temperature | 32–122°F (0–50°C) |
| Operating Temperature | 32–122°F (0–50°C) |
| Humidity | 10%–90% relative humidity, noncondensing |
| Altitude | 3000 M |
| Storage Temperature | -20 ~ +70 °C |
| Humidity (relative) | 10%~95%, non-condensing |
| Physical Specifications :- | |
| Dimensions (W x D x H) | 390 x 220 x 43 mm (15.4 in. x 8.7 in. x 1.7 in.) |
| Weight | 2.89 Kg |
