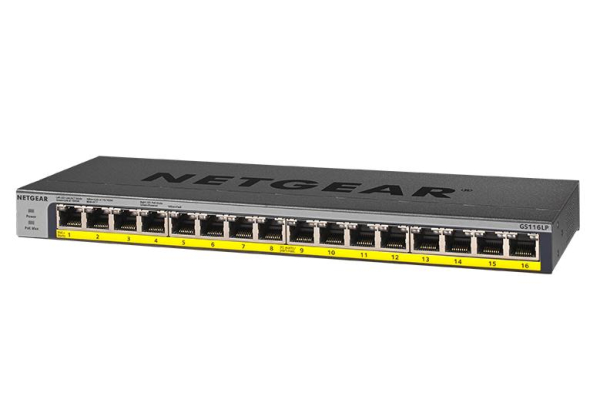

Netgear GS116LP 16-Port PoE/PoE+ GbE Unmanaged Switch

SKU : GS116LP-100AJS
Brand : Netgear
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Power Supply: External Input 54V 1.66A (90W), Gigabit Ports: 16, Max MAC entries: 4K, Buffer Size: 1MB, Total PoE Power Budget: 76W, Forwarding modes: Store-and-forward, Bandwidth: 32Gbps, Lifetime Limited Warranty, GS116LP-100AJS.
Ask a question about this product
$326.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Netgear | Model # GS116LP-100AJS



The NETGEAR Gigabit Unmanaged Switch series helps businesses costeffectively increase power budget to expand their network. Powered by the industry’s first flexible PoE+ integrated technology, you can increase or decrease the PoE budget by simply buying a new power supply, effectively futureproofing small business networks and budgets.



Features:

  • Simple setup with no software or configuration needed.
  • 16 PoE+ ports with 183W total power budget, and includes NETGEAR FlexPoE allowing to reduce the power budget to 155W or even 76W (w/separately purchased power supply modules)
  • Mount on rack, desktop, or wall.
  • Durable quality, space saver, and quietness for peace of mind.



Overview:

  • Power Supply: External Input 54V 1.66A (90W)
  • Gigabit Ports: 16
  • Max MAC entries: 4K
  • Buffer Size: 1MB
  • Total PoE Power Budget: 76W
  • Forwarding modes: Store-and-forward
  • Bandwidth: 32Gbps



Manufacturer Warranty: Lifetime Limited Warranty

Technical Specifications

Technical Specifications :-
Gigabit Ethernet RJ-45 Copper ports (10M/100M/1G) - 1000BASE-T 16
PoE/PoE+ ports 16 PoE+ (76W PoE budget)
Power Supply External Input 54V 1.66A (90W)
Power Supply Supported External
Input 54V 3.7A (200W)
Input 54V 2.4A (130W)
Input 54V 1.66A (90W)
Gigabit Ports 16
Max MAC entries 4K
Buffer Size 1MB
Energy Efficient Enthernet (IEEE 802.3az complaint) Yes
PoE Support :-
802.3af Ports Ports 1-16
802.3at Ports Ports 1-16
PoE Max Power Per Port Up to 15.4w for 802.3af and 30W for 802.3at
Total PoE Power Budget 76W
Forwarding modes Store-and-forward
Bandwidth 32Gbps
Jumbo frame support Yes
Acoustic noise (ANSI-S10.12) 0 (fanless)
Mean Time Between Failures 2,362,192 hours
Quality of Service (QOS) :-
DSCP Yes
IEEE 802.1p COS Yes
Queue WRR Ratio 1:3:5:7:8:10:12:15 Weighted Fair Queue (WFQ)
LEDs :-
Per port Speed, Link, Activity, PoE
Per device Power Status, PoE Max
Dimensions (W x D x H) 286 x 102 x 27 mm
Weight 0.88 kg
