General
Chipset A chipset is an electronic component in an integrated circuit known as a "Data Flow Management System" that manages the data flow between the processor, memory and peripherals.
AMD A620
Socket A CPU socket or CPU slot contains mechanical components providing mechanical and electrical connections between a processor and PCB. This allows for placing the CPU without soldering.
AM5
AMD Ryzen 7000 Series Desktop Processors
BIOS Basic Input/Output System, also known as the System BIOS is firmware used to provide runtime services for operating systems and programs to perform hardware initialization during the booting process.
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.5
Multi-language
Unique Features
Mystic Light
Frozr AI Cooling
User Scenario
True Color
Core Boost
Memory Boost
Lightning Gen 4 PCI-E Slot
Lightning Gen 4 M.2 Slot
PCI-E Steel Armor
EZ DEBUG LED
EZ LED Control
Audio Boost
Mystic Light Extension (RGB)
Ambient Devices Support
Memory
RAM Capacity The total memory that can be added to a computer depends on the address registers built into the CPU.
upto 96GB (48GB each)
DIMM Slots DIMM (dual in-line memory module) slots are the place on your motherboard where the RAM goes.
2
RAM Frequency Supports RAM frequency is measured in MHz and usually immediately follows the DDR version in the RAM spec.
DDR5 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz Supports non-ECC, un-buffered memory
Slots And Ports
Expansion Slots An expansion slot is a socket on the motherboard that is used to insert an expansion card, which provides additional features to a computer such as video, sound, graphics, ethernet or memory.
1x PCI-E x16 slot
1x PCI-E x1 slot
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Internal I/O Connectors An I/O (Input/Output) port is a socket on a computer that a cable is plugged into. The port connects the CPU to a peripheral device via a hardware interface or to the network via a network interface.
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports

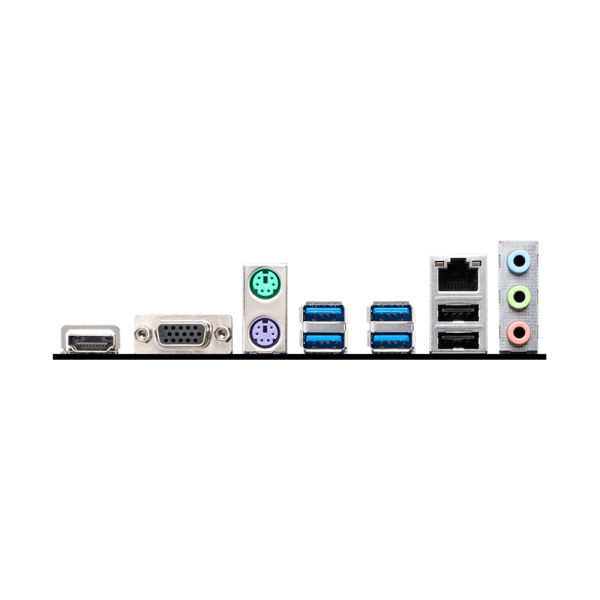

Back Panel Connectors The back or rear panel is the portion of the motherboard that allows you to connect external devices, such as your monitor, speakers, keyboard, mouse etc.
1x HDMI port
1x VGA port
1x mouse port
1x keyboard port
2x USB 3.2 Gen 1 5Gbps Type-A ports (From CPU)
2x USB 3.2 Gen 1 5Gbps Type-A ports (From A620 chipset)
2x USB 2.0 Type-A ports (From A620 chipset)
1x 1Gbps LAN (RJ45) port
3x audio jacks
Software
Operating System Supports An operating system (OS) is system software that manages computer hardware, software resources, and provides common services for computer programs.
Support for Windows 11 64-bit
Windows 10 64-bit
Bundled Software
Drivers
MSI Center
CPU-Z MSI GAMING
Norton 360 Deluxe
AIDA64 Extreme - MSI Edition
