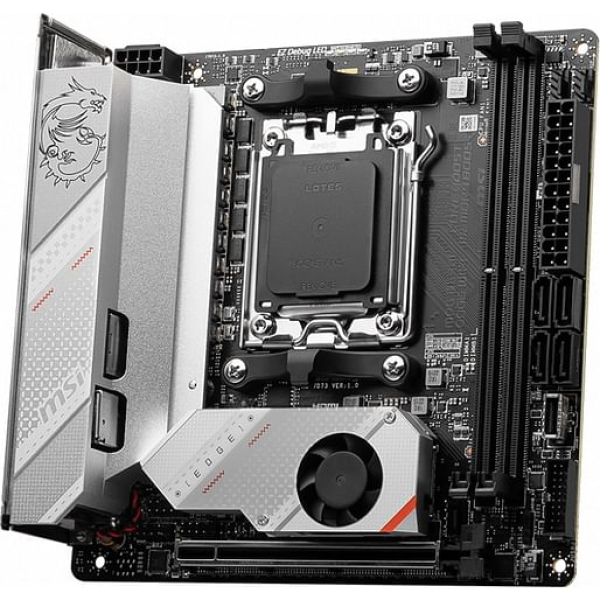

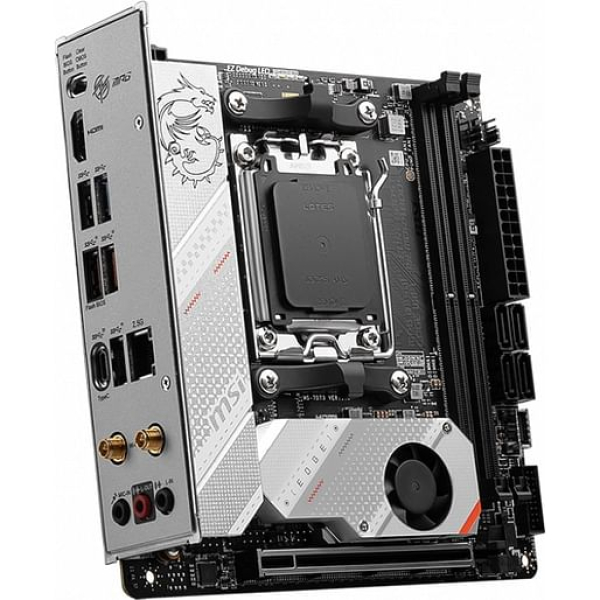

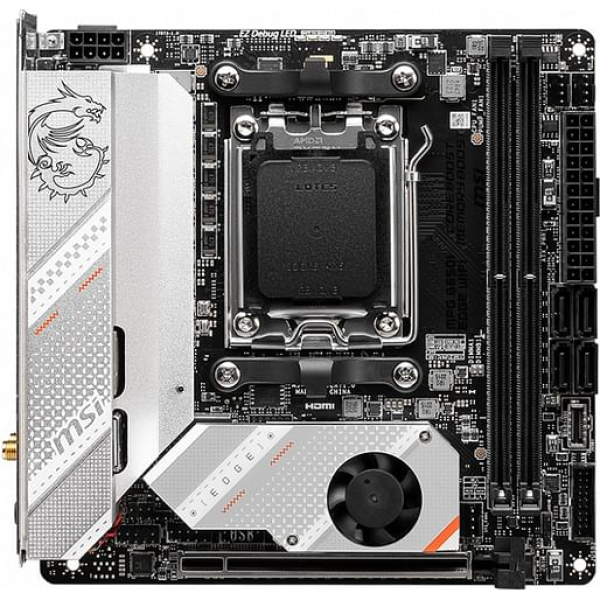

MSI MPG B560I Gaming Edge WIFI LGA1200 MITX Motherboard MPG B650I EDGE WIFI

Sku: MPG B650I EDGE WIFI

Availability: In Stock

Brand: MSI

Category: AMD Boards

$363.00 $427.90 15% OFF

Chipset: AMD B650, RAM Capacity: upto 64GB (32GB each), DIMM Slots: 4, Form Factor: Mini-ITX, Dimensions: 170mmx170mm.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # MSI | Model # MPG B650I EDGE WIFI



The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.



Features:

  • Supports DDR5 Memory, up to 6600+(OC) MHz
  • Enhanced Power Design: Direct 8+2+1 VRM power, Core Boost, Memory Boost
  • High Quality PCB: 10-layer PCB made by 2oz thickened copper and server grade level material
  • 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2



Overview:

  • Chipset: AMD B650
  • RAM Capacity: upto 64GB (32GB each)
  • DIMM Slots: 4
  • Form Factor: Mini-ITX
  • Dimensions: 170mmx170mm



Manufacturer Warranty: 03 Years Limited Warranty

General

Chipset A chipset is an electronic component in an integrated circuit known as a "Data Flow Management System" that manages the data flow between the processor, memory and peripherals.
AMD B650
Socket A CPU socket or CPU slot contains mechanical components providing mechanical and electrical connections between a processor and PCB. This allows for placing the CPU without soldering.
AM5
Supports AMD Ryzen 7000 Series Desktop Processors
BIOS Basic Input/Output System, also known as the System BIOS is firmware used to provide runtime services for operating systems and programs to perform hardware initialization during the booting process.
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.5
Multi-language
Unique Features
N/A

Memory

RAM Capacity The total memory that can be added to a computer depends on the address registers built into the CPU.
upto 64GB (32GB each)
DIMM Slots DIMM (dual in-line memory module) slots are the place on your motherboard where the RAM goes.
4
RAM Frequency Supports RAM frequency is measured in MHz and usually immediately follows the DDR version in the RAM spec.
Memory Support DDR5 6600+(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz

Onboard Graphics

With HDMI
1x HDMI
Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz
With DisplayPort

Wireless Communication

Wi-Fi Wi-Fi is a wireless networking technology that allows devices such as computers, mobile devices, and other equipments to interface with the Internet.
Wi-Fi 6E
802.11 a/ b/ g/ n/ ac/ ax
Bluetooth Bluetooth is a wireless technology that enables the exchange of data between devices using wavelength.
5.3

Slots And Ports

Expansion Slots An expansion slot is a socket on the motherboard that is used to insert an expansion card, which provides additional features to a computer such as video, sound, graphics, ethernet or memory.
1x PCI-E x16 slot
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Internal I/O Connectors An I/O (Input/Output) port is a socket on a computer that a cable is plugged into. The port connects the CPU to a peripheral device via a hardware interface or to the network via a network interface.
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

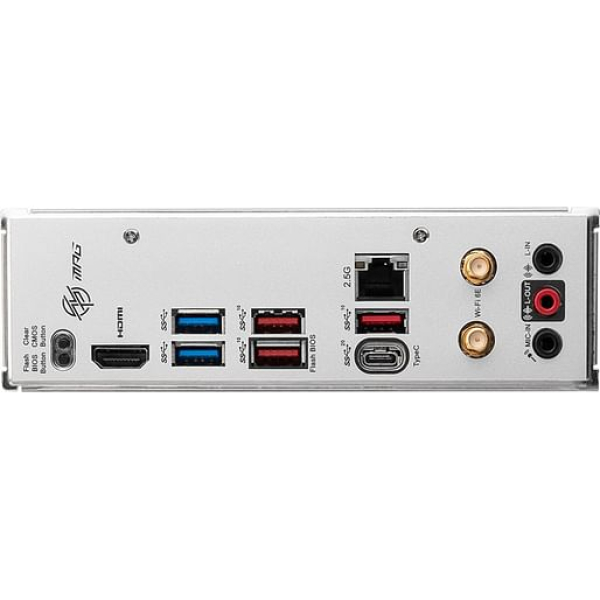

Back Panel Connectors The back or rear panel is the portion of the motherboard that allows you to connect external devices, such as your monitor, speakers, keyboard, mouse etc.
1x Clear CMOS button
1x Flash BIOS button
1x HDMI port
2x USB 3.2 Gen 1 5Gbps Type-A ports (From CPU)
2x USB 3.2 Gen 2 10Gbps Type-A port (From CPU)
1x USB 3.2 Gen 2 10Gbps Type-A port (From B650 chipset)
1x USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset)
1x 2.5 Gbps LAN (RJ45) port
2x Wi-Fi antenna connectors
3x audio jacks

Software

Operating System Supports An operating system (OS) is system software that manages computer hardware, software resources, and provides common services for computer programs.
Support for Windows 11 64-bit, Windows 10 64-bit
Bundled Software
Drivers
MSI Center
MSI APP Player (BlueStacks)
CPU-Z MSI GAMING
Norton 360 Deluxe
AIDA64 Extreme - MSI Edition

Physical

Form Factor The motherboard's form factor indicates the shape and size specifications of the board.
Mini-ITX
Dimensions
170mmx170mm
