General
Chipset A chipset is an electronic component in an integrated circuit known as a "Data Flow Management System" that manages the data flow between the processor, memory and peripherals.
AMD B550
Socket A CPU socket or CPU slot contains mechanical components providing mechanical and electrical connections between a processor and PCB. This allows for placing the CPU without soldering.
AM4
RYZEN 9
BIOS Basic Input/Output System, also known as the System BIOS is firmware used to provide runtime services for operating systems and programs to perform hardware initialization during the booting process.
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.0, SM BIOS 2.8
Multi-language
Unique Features
Audio
2.5G LAN
LAN Manager with Realtek 8125B
Intel WiFi
Extended Heatsink Design
Frozr Heatsink Design
Mystic Light Extension (RAINBOW)
DDR4 Boost
Core Boost
GAME Boost
PCI-E Steel Armor
Pre-installed 10 Shielding
Memory
RAM Capacity The total memory that can be added to a computer depends on the address registers built into the CPU.
upto 64GB (32GB each)
DIMM Slots DIMM (dual in-line memory module) slots are the place on your motherboard where the RAM goes.
2
RAM Frequency Supports RAM frequency is measured in MHz and usually immediately follows the DDR version in the RAM spec.
DDR4 Supports 1866 / 2133 / 2400 / 2667 / 2800 / 2933 / 3000 / 3066 / 3200 MHz by JEDEC
Supports DDR4 2667 / 2800 / 2933 / 3000 / 3066 / 3200 / 3466 / 3600 / 3733 / 3866 / 4000 / 4133 / 4266 / 4400 / 4466 / 4533 / 4600+ MHz by A-XMP OC MODE
Slots And Ports
Expansion Slots An expansion slot is a socket on the motherboard that is used to insert an expansion card, which provides additional features to a computer such as video, sound, graphics, ethernet or memory.
1x PCIe 4.0/ 3.0 x16 slot
2x M.2 slots (Key M) (Supports 2260/ 2280 storage devices)
Internal I/O Connectors An I/O (Input/Output) port is a socket on a computer that a cable is plugged into. The port connects the CPU to a peripheral device via a hardware interface or to the network via a network interface.
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x 3-pin RAINBOW LED connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
4x EZ Debug LED

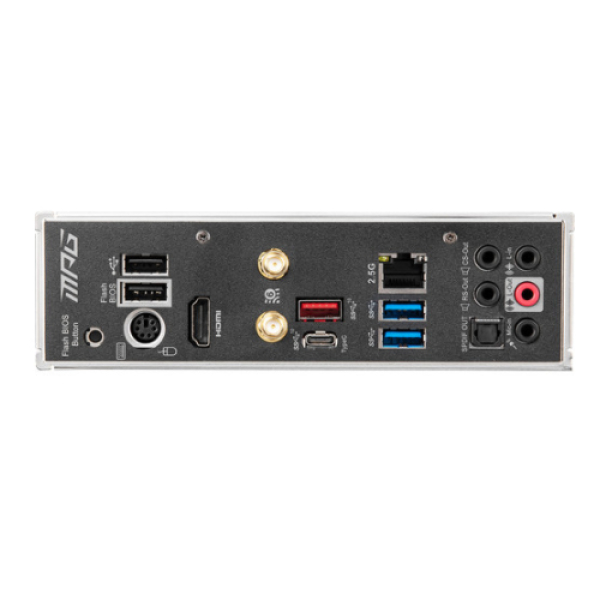

Back Panel Connectors The back or rear panel is the portion of the motherboard that allows you to connect external devices, such as your monitor, speakers, keyboard, mouse etc.
1x Flash BIOS Button
2x USB 2.0 Type-A ports
1x PS/2 keyboard/ mouse combo port
1x HDMI 2.0/2.1 port
2x Wi-Fi Antenna connectors
1x USB 3.2 Gen 2 10Gbps Type-A port
1x USB 3.2 Gen 2 10Gbps Type-C port
1x LAN (RJ45) port
2x USB 3.2 Gen 1 5Gbps Type-A ports
5x Audio jacks
1x Optical S/PDIF Out connector
Software
Operating System Supports An operating system (OS) is system software that manages computer hardware, software resources, and provides common services for computer programs.
Windows 10 64-bit
Bundled Software
Drivers
DRAGON CENTER
MSI APP Player (BlueStacks)
Open Broadcaster Software (OBS)
CPU-Z MSI GAMING
Google Chrome, Google Toolbar, Google Drive
Norton Internet Security Solution
Intel AX200/AX210
