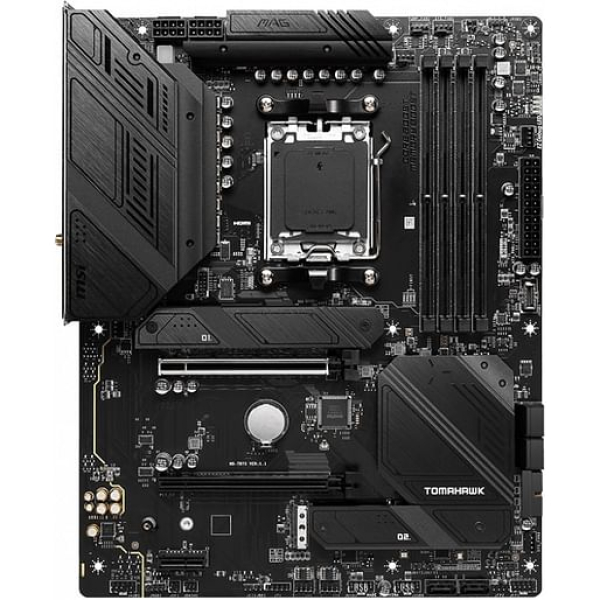

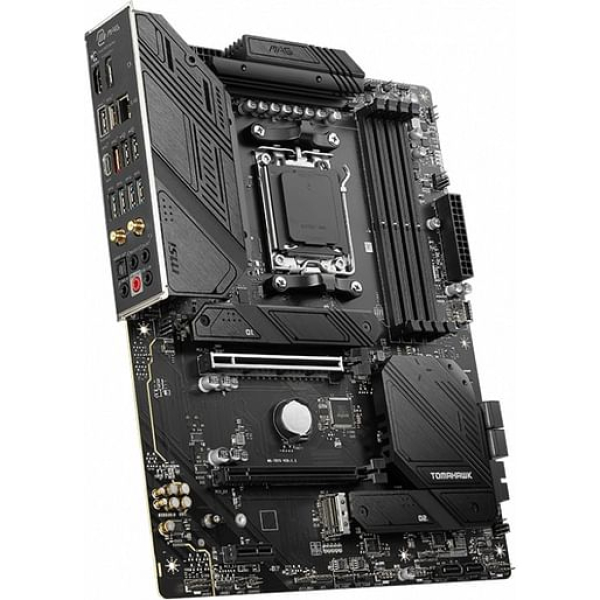

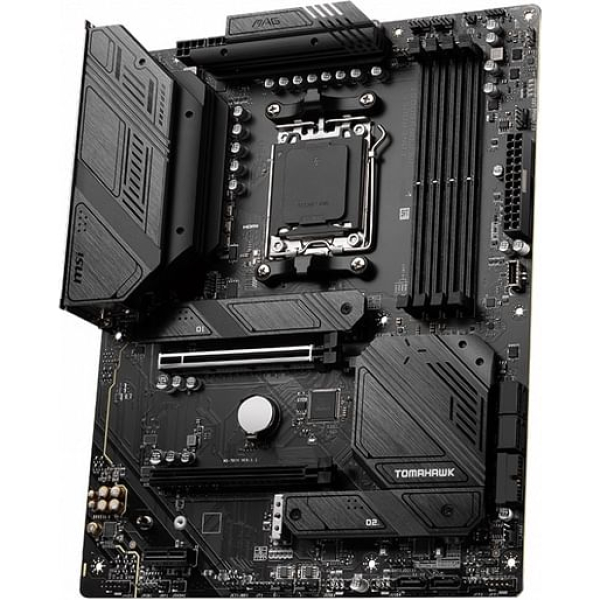

MSI MAG B650 Tomahawk WIFI AMD Ryzen 7000 Series AM5 Motherboard

Sku: MAG B650 TOMAHAWK WIFI

Availability: In Stock

Brand: MSI

Category: AMD Boards

$349.80 $427.90 18% OFF

Chipset: AMD B650, RAM Capacity: upto 128GB (32GB each), DIMM Slots: 4, Operating System Supports: Windows 11 64-bit, Windows 10 64-bit, Form Factor: ATX, Dimensions: 243.84 mm x 304.8 mm.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # MSI | Model # MAG B650 TOMAHAWK WIFI



The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.



Features:

  • Supports AMD Ryzen 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 6400+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience



Overview:

  • Chipset: AMD B650
  • RAM Capacity: upto 128GB (32GB each)
  • DIMM Slots: 4
  • Operating System Supports: Windows 11 64-bit, Windows 10 64-bit
  • Form Factor: ATX
  • Dimensions: 243.84 mm x 304.8 mm



Manufacturer Warranty: 03 Years Limited Warranty

General

Chipset A chipset is an electronic component in an integrated circuit known as a "Data Flow Management System" that manages the data flow between the processor, memory and peripherals.
AMD B650
Socket A CPU socket or CPU slot contains mechanical components providing mechanical and electrical connections between a processor and PCB. This allows for placing the CPU without soldering.
AM5
Support for AMD Ryzen 7000 Series Processors
BIOS Basic Input/Output System, also known as the System BIOS is firmware used to provide runtime services for operating systems and programs to perform hardware initialization during the booting process.
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.4
Multi-language
Unique Features
Gaming Mode
Smart Priority
Game Highlights
Mystic Light
Ambient Link
Frozr AI Cooling
User Scenario
Extended Heatsink Design
M.2 Shield Frozr
Core Boost
VRM Power Design
Dual CPU Power
Memory Boost
Lightning Gen 4 PCI-E / M.2 Slot
PCI-E Steel Armor
Pre-installed I/O Shield
Audio Boost 5

Memory

RAM Capacity The total memory that can be added to a computer depends on the address registers built into the CPU.
upto 128GB (32GB each)
DIMM Slots DIMM (dual in-line memory module) slots are the place on your motherboard where the RAM goes.
4
RAM Frequency Supports RAM frequency is measured in MHz and usually immediately follows the DDR version in the RAM spec.
DDR5 6600+(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz

Onboard Graphics

With HDMI
1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
With DisplayPort
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz

Wireless Communication

Wi-Fi Wi-Fi is a wireless networking technology that allows devices such as computers, mobile devices, and other equipments to interface with the Internet.
AMD Wi-Fi 6E
Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth Bluetooth is a wireless technology that enables the exchange of data between devices using wavelength.
5.3

Slots And Ports

Expansion Slots An expansion slot is a socket on the motherboard that is used to insert an expansion card, which provides additional features to a computer such as video, sound, graphics, ethernet or memory.
2x PCI-E x16 slot
1x PCI-E x1 slot
M.2_1,2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Internal I/O Connectors An I/O (Input/Output) port is a socket on a computer that a cable is plugged into. The port connects the CPU to a peripheral device via a hardware interface or to the network via a network interface.
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

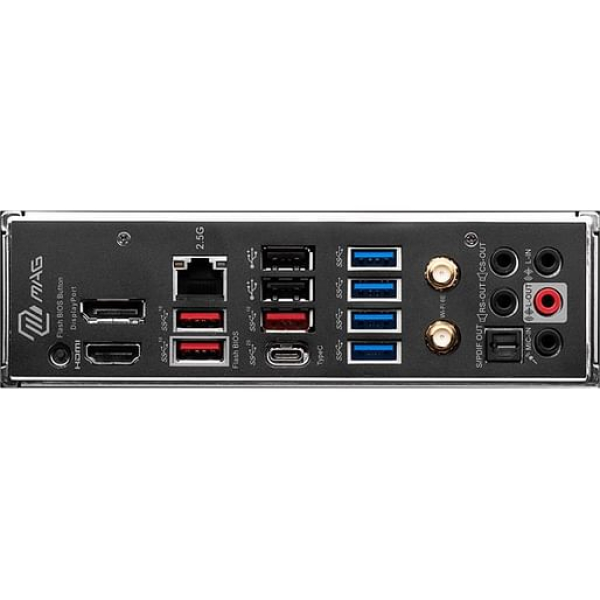

Back Panel Connectors The back or rear panel is the portion of the motherboard that allows you to connect external devices, such as your monitor, speakers, keyboard, mouse etc.
1x Flash BIOS button
1x DisplayPort
1x HDMI port
3x USB 3.2 Gen 2 10Gbps Type-A ports (From CPU)
1x USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset)
4x USB 3.2 Gen 1 5Gbps Type-A ports (From B650 chipset)
2x USB 2.0 Type-A ports (From B650 chipset)
1x LAN (RJ45) jack
2x Wi-Fi Antenna connectors
5x audio jacks
1x Optical S/PDIF Out connector

Software

Operating System Supports An operating system (OS) is system software that manages computer hardware, software resources, and provides common services for computer programs.
Windows 11 64-bit, Windows 10 64-bit
Bundled Software
Drivers
MSI Center
MSI APP Player (BlueStacks)
CPU-Z MSI GAMING
Norton 360 Deluxe
AIDA64 Extreme - MSI Edition

Physical

Form Factor The motherboard's form factor indicates the shape and size specifications of the board.
ATX
Dimensions
243.84 mm x 304.8 mm
